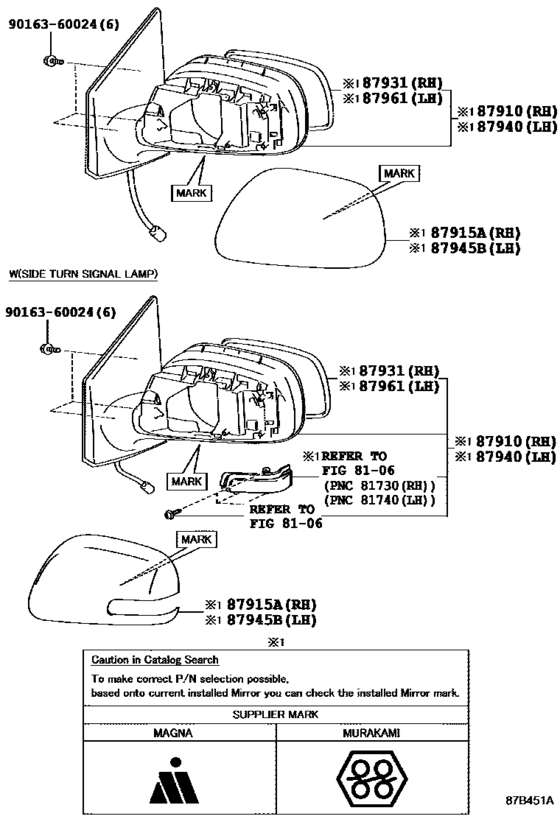

Mirror ([07.2007 - ] OUTER REAR VIEW MIRROR (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87910
|
87910
87910-02810
Mirror Assy, Outer Rear View, Rh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87910-02810 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-12B60
Mirror Assy, Outer Rear View, Rh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87910-12B60 |
— | ||
|
87910
|
87910
87910-02D90
Mirror Assy, Outer Rear View, Rh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87910-02D90 |
— | ||
| replacements | |||||
|
87910
|
87910
87910-12F10
Mirror Assy, Outer Rear View, Rh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87910-12F10 |
— | ||
|
87910
|
87910
87915-44040 Cover, Outer Mirror, Rh[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87915-44040 |
US $34.51 |
||
|
87910
|
87910
87910-12B60
Mirror Assy, Outer Rear View, Rh
[07.2007 - 03.2009] ADE150..SA MURAKAMI |
87910-12B60 |
— | ||
|
87910
|
87910
87910-12F10
Mirror Assy, Outer Rear View, Rh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MURAKAMI |
87910-12F10 |
— | ||
|
87915A
|
87915A
87915-02911
Cover, Outer Mirror, Rh
[07.2007 - 03.2009] ADE150 MAGNA |
87915-02911 |
— | ||
| replacement | |||||
|
87915A
|
87915A
87915-02909 Cover, Outer Mirror, RhOUTER MIRROR, RH [07.2007 - 03.2009] ADE150 MAGNA |
87915-02909 |
US $38.73 |
||
|
87915A
|
87915A
87915-02918
Cover, Outer Mirror, Rh
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N MAGNA; NRE150,ZRE152..D;ZRE151..RHD..D..GEN OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MAGNA |
87915-02918 |
— | ||
|
87915A
|
87915A
87915-12050 Cover, Outer Mirror, Rh[07.2007 - 03.2009] ADE150 MURAKAMI |
87915-12050 |
from US $34.51 |
||
|
87915A
|
87915A
87915-22900
Cover, Outer Mirror, Rh
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N MURAKAMI; NRE150,ZRE152..D;ZRE151..RHD..D..GEN OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MURAKAMI |
87915-22900 |
— | ||
|
87931
|
87931
87931-02810
Outer Mirror, Rh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87931-02810 |
— | ||
| replacement | |||||
|
87931
|
87931
87908-02750
Outer Mirror, Rh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87908-02750 |
— | ||
|
87931
|
87931
87931-02D90
Outer Mirror, Rh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87931-02D90 |
— | ||
| replacement | |||||
|
87931
|
87931
87908-02750
Outer Mirror, Rh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87908-02750 |
— | ||
|
87931
|
87931
87931-12B00 Outer Mirror, Rh[07.2007 - 03.2009] ADE150..SA MURAKAMI |
87931-12B00 |
US $52.36 |
||
|
87931
|
87931
87931-22A10 Mirror Sub-Assy, Outer Rear View, Rh[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MURAKAMI |
87931-22A10 |
US $52.56 |
||
|
87940
|
87940
87940-02790
Mirror Assy, Outer Rear View, Lh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87940-02790 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-12B70
Mirror Assy, Outer Rear View, Lh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87940-12B70 |
— | ||
|
87940
|
87940
87940-02D50
Mirror Assy, Outer Rear View, Lh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87940-02D50 |
— | ||
| replacements | |||||
|
87940
|
87940
87940-12F40
Mirror Assy, Outer Rear View, Lh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87940-12F40 |
— | ||
|
87940
|
87940
87945-44040 Cover, Outer Mirror, Lh[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87945-44040 |
from US $34.51 |
||
|
87940
|
87940
87940-12B70
Mirror Assy, Outer Rear View, Lh
[07.2007 - 03.2009] ADE150..SA MURAKAMI |
87940-12B70 |
— | ||
|
87940
|
87940
87940-12F40
Mirror Assy, Outer Rear View, Lh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MURAKAMI |
87940-12F40 |
— | ||
|
87945B
|
87945B
87945-02911
Cover, Outer Mirror, Lh
[07.2007 - 03.2009] ADE150 MAGNA |
87945-02911 |
— | ||
| replacement | |||||
|
87945B
|
87945B
87945-02909
Cover, Outer Mirror, Lh
[07.2007 - 03.2009] ADE150 MAGNA |
87945-02909 |
— | ||
|
87945B
|
87945B
87945-02918
Cover, Outer Mirror, Lh
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N MAGNA; NRE150,ZRE152..D;ZRE151..RHD..D..GEN OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MAGNA |
87945-02918 |
— | ||
|
87945B
|
87945B
87945-12050 Cover, Outer Mirror, Lh[07.2007 - 03.2009] ADE150 MURAKAMI |
87945-12050 |
from US $34.51 |
||
|
87945B
|
87945B
87945-22900
Cover, Outer Mirror, Lh
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N MURAKAMI; NRE150,ZRE152..D;ZRE151..RHD..D..GEN OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MURAKAMI |
87945-22900 |
— | ||
|
87961
|
87961
87961-02790
Mirror Outer, Lh
[07.2007 - 03.2009] ADE150..SA MAGNA |
87961-02790 |
— | ||
| replacement | |||||
|
87961
|
87961
87961-12B10 Mirror Outer, Lh[07.2007 - 03.2009] ADE150..SA MAGNA |
87961-12B10 |
US $32.32 |
||
|
87961
|
87961
87961-02D50
Mirror Outer, Lh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87961-02D50 |
— | ||
| replacement | |||||
|
87961
|
87961
87909-02730
Mirror Outer, Lh
[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MAGNA |
87909-02730 |
— | ||
|
87961
|
87961
87961-12B10 Mirror Outer, Lh[07.2007 - 03.2009] ADE150..SA MURAKAMI |
87961-12B10 |
US $32.32 |
||
|
87961
|
87961
87961-22A20 Mirror Sub-Assy, Outer Rear View, Lh[06.2010 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD MURAKAMI |
87961-22A20 |
US $50.01 |
||
|
9016360024
|
9016360024
90163-60024 SCREW HEXAGON |
90163-60024 |
US $0.96 |
||
