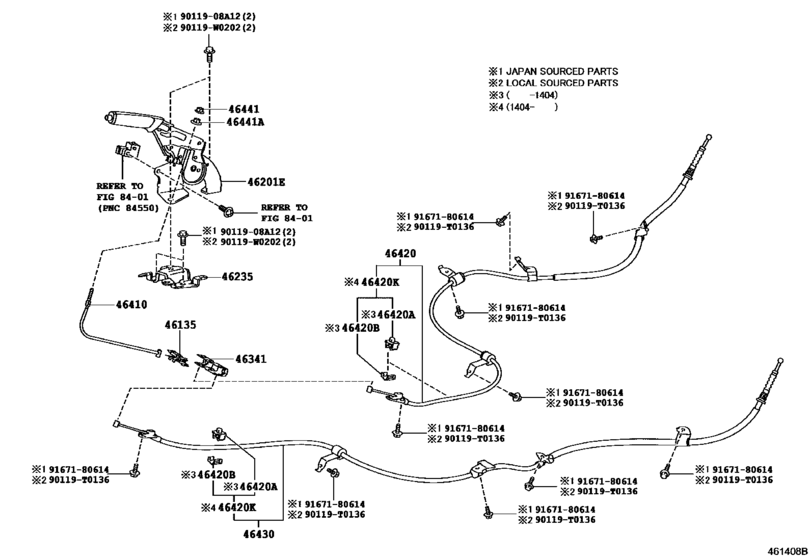

Parking Brake & Cable ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46135
|
46135
46135-12010 Stopper, Parking Brake Cable End[07.2007 - 03.2009] ADE150 |
46135-12010 |
from US $2.91 |
||
|
46201E
|
46201E
46201-12380-B0
Lever Sub-Assy, Parking Brake
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
46201-12380-B0 |
— | ||
| replacement | |||||
|
46201E
|
46201E
46201-12380-C0 Lever Sub-Assy, Parking Brake[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
46201-12380-C0 |
US $63.77 |
||
|
46201E
|
46201E
46201-12380-C0 Lever Sub-Assy, Parking Brake[11.2010 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) BLACK,TRIM1#,4# |
46201-12380-C0 |
US $63.77 |
||
|
46201E
|
46201E
46201-12380-E0
Lever Sub-Assy, Parking Brake
[07.2007 - 03.2009] ADE150..SA ASH BROWN,TRIM4# |
46201-12380-E0 |
— | ||
|
46235
|
46235
46235-12010
Bracket, Parking Brake Lever Support
[07.2007 - 03.2009] ADE150 |
46235-12010 |
— | ||
|
46341
|
46341
46341-12040 Equalizer, Parking Brake[07.2007 - 03.2009] ADE150 |
46341-12040 |
US $6.26 |
||
|
46410
|
46410
46410-12320 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [07.2007 - 03.2009] ADE150 |
46410-12320 |
from US $19.39 |
||
|
46420
|
46420
46420-02121 Cable Assy, Parking Brake, No.2PARKING BRAKE, NO.2 [07.2007 - 03.2009] ADE150 |
46420-02121 |
US $66.20 |
||
|
46420A
|
46420A
46411-12030 Clamp, No.3(For Parking Brake Cable)[07.2007 - 03.2009] ADE150 |
46411-12030 |
US $2.91 |
||
|
46420B
|
46420B
46411-12040 Clamp, No.4(For Parking Brake Cable)[07.2007 - 03.2009] ADE150 |
46411-12040 |
US $2.18 |
||
|
46430
|
46430
46430-02121 Cable Assy, Parking Brake, No.3PARKING BRAKE, NO.3 [07.2007 - 03.2009] ADE150 |
46430-02121 |
US $65.44 |
||
|
46441
|
46441
90179-06299 Nut, Wire Adjusting, No.1[07.2007 - 03.2009] ADE150 |
90179-06299 |
from US $0.72 |
||
|
46441A
|
46441A
46441-12010 Nut, Wire Adjusting, No.1[07.2007 - 03.2009] ADE150 |
46441-12010 |
US $2.56 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90119W0202
|
90119W0202
90119-W0202
New Genuine Part
|
90119-W0202 |
— | ||
|
9011908A12
|
9011908A12
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.28 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
