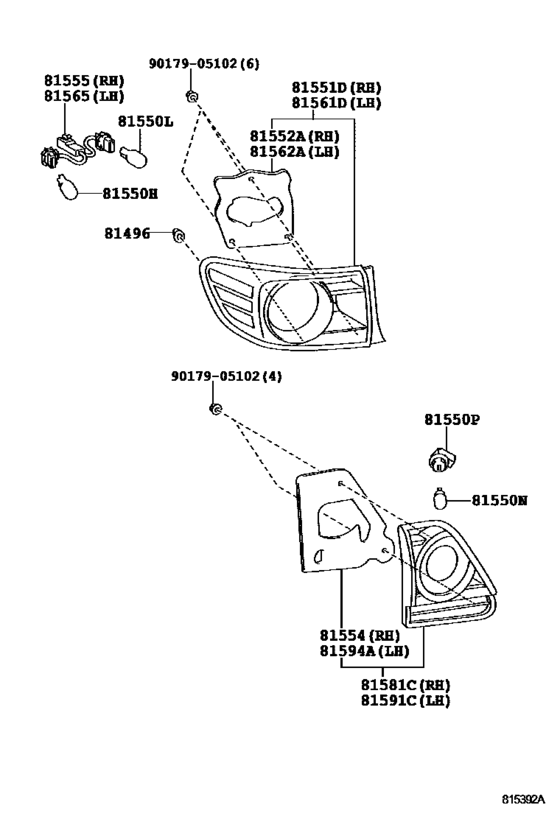

Rear Combination Lamp ([06.2010 - ] (1006- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[07.2007 - 03.2009] ADE150 |
81496-52020 |
from US $0.88 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[07.2007 - 03.2009] ADE150 12V 21/5W |
90981-13044 |
from US $3.65 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 12V 21W,AMBER |
90981-15021 |
from US $3.51 |
||
|
81550L
|
81550L
99132-11210 Bulb (12V 21W)[07.2007 - 03.2009] ADE150 12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[07.2007 - 03.2009] ADE150 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81550P
|
81550P
90075-99005 Socket And Wire, License Plate Lamp[07.2007 - 03.2009] ADE150 |
90075-99005 |
from US $5.71 |
||
|
81551D
|
81551D
81551-02410
Lens & Body, Rear Combination Lamp, Rh
[07.2007 - 03.2009] ADE150 |
81551-02410 |
— | ||
|
81551D
|
81551D
81551-02560
Lens & Body, Rear Combination Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81551-02560 |
— | ||
|
81552A
|
81552A
81552-02410
Gasket, Rear Combination Lamp, Rh
[07.2007 - 03.2009] ADE150 |
81552-02410 |
— | ||
|
81552A
|
81552A
81552-02560
Gasket, Rear Combination Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81552-02560 |
— | ||
|
81554
|
81554
81584-02150
Gasket, Rear Combination Lamp Body, Rh
[07.2007 - 03.2009] ADE150 |
81584-02150 |
— | ||
|
81554
|
81554
81584-02310
Gasket, Rear Combination Lamp Body, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81584-02310 |
— | ||
|
81555
|
81555
81555-02560
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81555-02560 |
— | ||
|
81555
|
81555
81555-12A10 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.2007 - 03.2009] ADE150 |
81555-12A10 |
US $20.83 |
||
|
81561D
|
81561D
81561-02410
Lens & Body, Rear Combination Lamp, Lh
[07.2007 - 03.2009] ADE150 |
81561-02410 |
— | ||
|
81561D
|
81561D
81561-02560
Lens & Body, Rear Combination Lamp, Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81561-02560 |
— | ||
|
81562A
|
81562A
81552-02410
Gasket, Rear Combination Lamp, Rh
[07.2007 - 03.2009] ADE150 |
81552-02410 |
— | ||
|
81562A
|
81562A
81552-02560
Gasket, Rear Combination Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81552-02560 |
— | ||
|
81565
|
81565
81555-02560
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81555-02560 |
— | ||
|
81565
|
81565
81555-12A10 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.2007 - 03.2009] ADE150 |
81555-12A10 |
US $20.83 |
||
|
81581C
|
81581C
81581-02150
Lens And Body, Rear Lamp, Rh
[07.2007 - 03.2009] ADE150 |
81581-02150 |
— | ||
|
81581C
|
81581C
81581-02310
Lens And Body, Rear Lamp, Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81581-02310 |
— | ||
|
81591C
|
81591C
81591-02150
Lens, Rear Lamp, Lh
[07.2007 - 03.2009] ADE150 |
81591-02150 |
— | ||
|
81591C
|
81591C
81591-02310
Lens, Rear Lamp, Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81591-02310 |
— | ||
|
81594A
|
81594A
81594-02150
Gasket, Rear Lamp Lh
[07.2007 - 03.2009] ADE150 |
81594-02150 |
— | ||
|
81594A
|
81594A
81594-02310
Gasket, Rear Lamp Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
81594-02310 |
— | ||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.78 |
