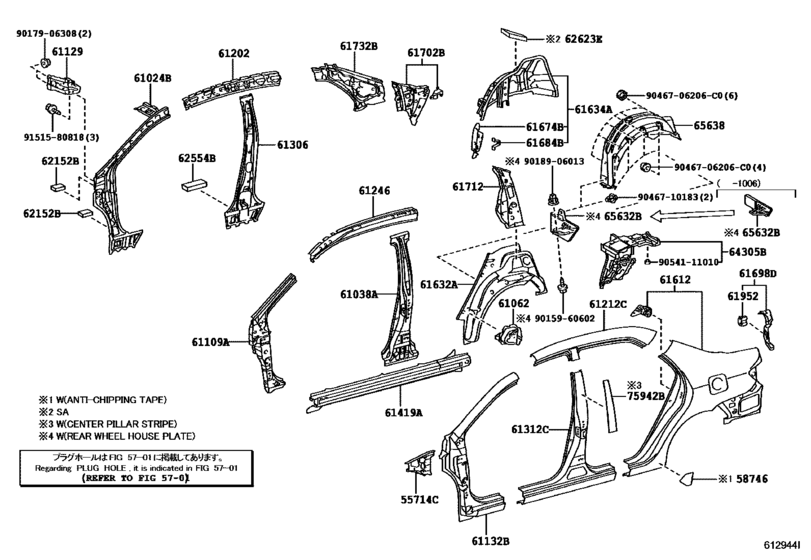

Side Member ([07.2007 - ] LH SIDE (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55714C
|
55714C
55714-12130 Panel, Cowl Top Side, Lh[07.2007 - 03.2009] ADE150 |
55714-12130 |
US $38 |
||
|
58746
|
58746
58742-02120
Protector, Quarter Panel, Front Lh
[07.2007 - 03.2009] ADE150 ANTI-CHIPPING TAPE-WITH(REAR DOOR,QUATER) |
58742-02120 |
— | ||
|
61024B
|
61024B
61024-02240
Pillar Sub-Assy, Front Body, Inner Lh
[01.2009 - 03.2009] ADE150 |
61024-02240 |
— | ||
|
61024B
|
61024B
61024-12370
Pillar Sub-Assy, Front Body, Inner Lh
[07.2007 - 12.2008] ADE150,NDE150,ZRE15#,ZZE150 |
61024-12370 |
— | ||
|
61038A
|
61038A
61038-12300
Reinforcement Sub-Assy, Center Body Pillar, Lh
[07.2007 - 03.2009] ADE150 |
61038-12300 |
— | ||
|
61062
|
61062
61062-12010 Reinforcement Sub-Assy, Wheel House, Lh[07.2007 - 03.2009] ADE150 |
61062-12010 |
US $50.09 |
||
|
61062
|
61062
61616-12020
Reinforcement Sub-Assy, Wheel House, Lh
[11.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
61616-12020 |
— | ||
|
61109A
|
61109A
61109-02170
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[12.2008 - 03.2009] ADE150 |
61109-02170 |
— | ||
|
61109A
|
61109A
61109-12250
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[07.2007 - 11.2008] ADE150,NDE150,ZRE15#,ZZE150 |
61109-12250 |
— | ||
|
61129
|
61129
61104-12260 Reinforcement Sub-Assy, Cowl Side, Lh[07.2007 - 03.2009] ADE150 |
61104-12260 |
US $32.32 |
||
|
61132B
|
61132B
61132-02230
Pillar, Front Body, Outer Lh
[07.2007 - 03.2009] ADE150 |
61132-02230 |
— | ||
|
61202
|
61202
61202-02160
Rail Sub-Assy, Roof Side, Lh
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
61202-02160 |
— | ||
|
61202
|
61202
61202-12200
Rail Sub-Assy, Roof Side, Lh
[07.2007 - 03.2009] ADE150 |
61202-12200 |
— | ||
|
61212C
|
61212C
61212-02130
Rail, Roof Side, Lh
[07.2007 - 03.2009] ADE150 |
61212-02130 |
— | ||
|
61246
|
61246
61246-12080
Reinforcement, Roof Side Rail, Outer Lh
[07.2007 - 03.2009] ADE150 |
61246-12080 |
— | ||
|
61306
|
61306
61306-02090
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
61306-02090 |
— | ||
|
61306
|
61306
61306-12150
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[07.2007 - 03.2009] ADE150 |
61306-12150 |
— | ||
|
61312C
|
61312C
61312-02160
Panel, Rear Body Front Outside, Lh
[07.2007 - 03.2009] ADE150 |
61312-02160 |
— | ||
|
61419A
|
61419A
61404-12080
Reinforcement, Rocker Panel, Lh
[07.2007 - 03.2009] ADE150 |
61404-12080 |
— | ||
| replacement | |||||
|
61419A
|
61419A
61404-12081 Reinforcement, Rocker Panel, Lh[07.2007 - 03.2009] ADE150 |
61404-12081 |
US $200.93 |
||
|
61419A
|
61419A
61404-12081 Reinforcement, Rocker Panel, Lh[04.2011 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
61404-12081 |
US $200.93 |
||
|
61612
|
61612
61602-02230
Panel, Quarter, Lh
[07.2007 - 03.2009] ADE150 |
61602-02230 |
— | ||
|
61632A
|
61632A
61632-02090
Panel, Quarter Wheel House, Outer Lh
[07.2007 - 03.2009] ADE150 |
61632-02090 |
— | ||
|
61634A
|
61634A
61608-02938
Panel, Quarter Wheel House, Inner Lh
[07.2007 - 03.2009] ADE150 |
61608-02938 |
— | ||
|
61674B
|
61674B
61674-12070 Reinforcement, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [07.2007 - 03.2009] ADE150 |
61674-12070 |
US $33.34 |
||
|
61684B
|
61684B
61683-12050
Bracket, Rear Wheel Opening, No.1 Rh
[07.2007 - 03.2009] ADE150 |
61683-12050 |
— | ||
|
61698D
|
61698D
61698-02908
Housing, Quarter Panel End, Lh
[07.2007 - 03.2009] ADE150 |
61698-02908 |
— | ||
|
61702B
|
61702B
61702-02020
Panel Sub-Assy, Roof Side, Inner Upper Lh
[07.2007 - 03.2009] ADE150 |
61702-02020 |
— | ||
|
61712
|
61712
61712-02030
Panel, Roof Side, Outer Lh
[07.2007 - 03.2009] ADE150 |
61712-02030 |
— | ||
|
61732B
|
61732B
61732-02160
Panel, Roof Side, Inner Lh
[07.2007 - 03.2009] ADE150 |
61732-02160 |
— | ||
|
61952
|
61952
61952-12010
Bracket, Side Trim, Rh
[07.2007 - 03.2009] ADE150 |
61952-12010 |
— | ||
|
62152B
|
62152B
62152-02030
Pad, Cowl Side Silencer, No.2
[07.2007 - 03.2009] ADE150 |
62152-02030 |
— | ||
|
62554B
|
62554B
62554-02170
Pad, Pillar, No.4
[07.2007 - 03.2009] ADE150 |
62554-02170 |
— | ||
|
62623E
|
62623E
62623-02030
Pad, Quarter Wheel House, Inner Rear Rh
[07.2007 - 03.2009] ADE150..SA |
62623-02030 |
— | ||
|
64305B
|
64305B
64305-02071
Reinforce Sub-Assy, Package Tray Bracket, Lh
[07.2007 - 03.2008] ADE150,NDE150,ZRE15#,ZZE150 |
64305-02071 |
— | ||
| replacement | |||||
|
64305B
|
64305B
64305-12093
Reinforce Sub-Assy, Package Tray Bracket, Lh
[07.2007 - 03.2008] ADE150,NDE150,ZRE15#,ZZE150 |
64305-12093 |
— | ||
|
64305B
|
64305B
64305-02072
Reinforce Sub-Assy, Package Tray Bracket, Lh
[04.2008 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
64305-02072 |
— | ||
| replacement | |||||
|
64305B
|
64305B
64305-12093
Reinforce Sub-Assy, Package Tray Bracket, Lh
[04.2008 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
64305-12093 |
— | ||
|
65632B
|
65632B
65632-02100
Plate, Rear Whell House, Front Lh
[02.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
65632-02100 |
— | ||
|
65632B
|
65632B
65632-02180
Plate, Rear Whell House, Front Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
65632-02180 |
— | ||
|
65638
|
65638
65638-02050
Liner, Rear Wheel House, Lh
[07.2007 - 03.2009] ADE150 |
65638-02050 |
— | ||
|
75942B
|
75942B
75942-02060
Stripe, Center Pillar, Lh
[07.2007 - 03.2009] ADE150 |
75942-02060 |
— | ||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
|
9046706206C0
|
9046706206C0
90467-06206-C0 Clip, Rear Bumper Side |
90467-06206-C0 |
from US $0.88 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
