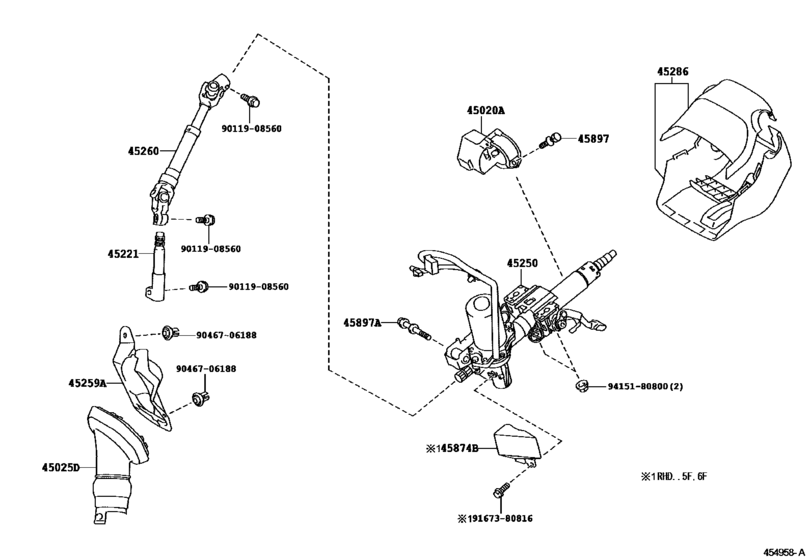

Steering Column & Shaft ([07.2007 - ] STARTING SYSTEM-PUSH BUTTON (0707- )ADE150,ZRE15#..E,N) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-42150 Actuator Assy, Steering Lock[07.2007 - 03.2009] ADE150,ZRE152..E; ADE150,ZRE152..N;ZRE151..(5F,5FS)..N STARTING SYSTEM-PUSH BUTTON |
45020-42150 |
from US $224.54 |
||
|
45025D
|
45025D
45025-02080 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [07.2007 - 03.2009] ADE150..SA |
45025-02080 |
US $38.88 |
||
|
45221
|
45221
45221-02050
Shaft, Steering Intermediate
[07.2007 - 03.2009] ADE150 |
45221-02050 |
— | ||
|
45250
|
45250
45250-02660
Column Assy, Steering
[07.2007 - 09.2007] ADE150,ZRE152..E; ADE150,ZRE15#..N STARTING SYSTEM-PUSH BUTTON |
45250-02660 |
— | ||
| replacement | |||||
|
45250
|
45250
45250-02663
Column Assy, Steering
[07.2007 - 09.2007] ADE150,ZRE152..E; ADE150,ZRE15#..N STARTING SYSTEM-PUSH BUTTON |
45250-02663 |
— | ||
|
45250
|
45250
45250-02661
Column Assy, Steering
[10.2007 - 12.2007] ADE150,ZRE152..E; ADE150,ZRE15#..RHD..N STARTING SYSTEM-PUSH BUTTON |
45250-02661 |
— | ||
| replacement | |||||
|
45250
|
45250
45250-02663
Column Assy, Steering
[10.2007 - 12.2007] ADE150,ZRE152..E; ADE150,ZRE15#..RHD..N STARTING SYSTEM-PUSH BUTTON |
45250-02663 |
— | ||
|
45250
|
45250
45250-02662
Column Assy, Steering
[01.2008 - 03.2009] ADE150..E; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON |
45250-02662 |
— | ||
| replacement | |||||
|
45250
|
45250
45250-02663
Column Assy, Steering
[01.2008 - 03.2009] ADE150..E; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON |
45250-02663 |
— | ||
|
45250
|
45250
45250-02663
Column Assy, Steering
[03.2011 - 01.2014] ADE150,ZRE153..E; ADE150,ZRE151,153..N..SA STARTING SYSTEM-PUSH BUTTON |
45250-02663 |
— | ||
|
45259A
|
45259A
45259-02070 Sheet, Column Hole Cover SilencerCOLUMN HOLE COVER SILENCER [07.2007 - 03.2009] ADE150..SA |
45259-02070 |
US $11.79 |
||
|
45260
|
45260
45260-02090
Shaft Assy, Steering Intermediate, No.2
[07.2007 - 09.2007] ADE150,ZRE15#,ZZE150 |
45260-02090 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-02250
Shaft Assy, Steering Intermediate, No.2
[07.2007 - 09.2007] ADE150,ZRE15#,ZZE150 |
45260-02250 |
— | ||
|
45260
|
45260
45260-02250
Shaft Assy, Steering Intermediate, No.2
[06.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
45260-02250 |
— | ||
|
45286
|
45286
45286-02937-B0
Cover, Steering Column
[07.2007 - 03.2009] ADE150..E DK.GRAY,TRIM1#; ADE150..N STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1# |
45286-02937-B0 |
— | ||
|
45286
|
45286
45286-02937-E1
Cover, Steering Column
[07.2007 - 03.2009] ADE150..E ASH BROWN,TRIM4#; ADE150..N STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4# |
45286-02937-E1 |
— | ||
|
45874B
|
45874B
45874-12090 Protector, Steering Column, No.1[07.2007 - 03.2009] ADE150..SA |
45874-12090 |
US $8.88 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[07.2007 - 03.2009] ADE150 |
45897-12020 |
from US $3.36 |
||
|
45897
|
45897
45897-12050 Bolt, Steering Lock SetSTEERING LOCK SET [08.2010 - 01.2014] ADE150..E |
45897-12050 |
US $3.04 |
||
|
45897A
|
45897A
45897-42010 Bolt, Tilt Steering Pawl Set[07.2007 - 03.2009] ADE150 |
45897-42010 |
US $8.64 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $2.03 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
