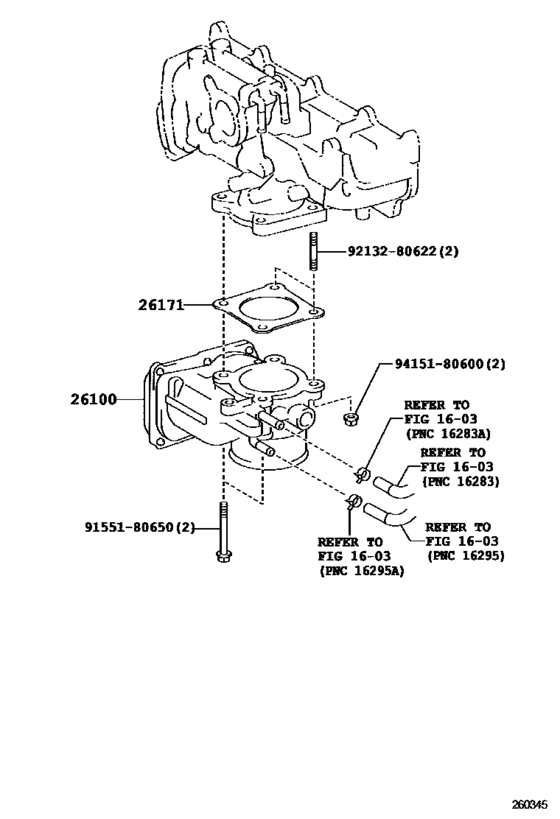

Venturi ([03.2009 - ] (0903- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26100
|
26100
26100-0R010
Body Assy, Diesel Throttle
[07.2007 - 02.2008] 1ADFTV..ADE150 |
26100-0R010 |
— | ||
| replacement | |||||
|
26100
|
26100
26100-26010 Body Assy, Diesel Throttle[07.2007 - 02.2008] 1ADFTV..ADE150 |
26100-26010 |
from US $274.31 |
||
|
26100
|
26100
26100-0R011
Venturi Assy
[02.2008 - 03.2009] 1ADFTV..ADE150 (L) |
26100-0R011 |
— | ||
| replacement | |||||
|
26100
|
26100
26100-26020
Venturi Assy
[02.2008 - 03.2009] 1ADFTV..ADE150 (L) |
26100-26020 |
— | ||
|
26100
|
26100
26100-0R020
Venturi Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 |
26100-0R020 |
— | ||
|
26100
|
26100
26100-26020
Venturi Assy
[02.2008 - 03.2009] 1ADFTV..ADE150 (J) |
26100-26020 |
— | ||
|
26171
|
26171
26171-0R010
Gasket, Venturi
[03.2009 - 06.2010] 1ADFTV..ADE150 |
26171-0R010 |
— | ||
|
26171
|
26171
26171-26010 Gasket, VenturiVENTURI [07.2007 - 03.2009] 1ADFTV..ADE150 |
26171-26010 |
US $9.76 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.99 |
||
|
9213280622
|
9213280622
92132-80622
New Genuine Part
|
92132-80622 |
— | ||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
