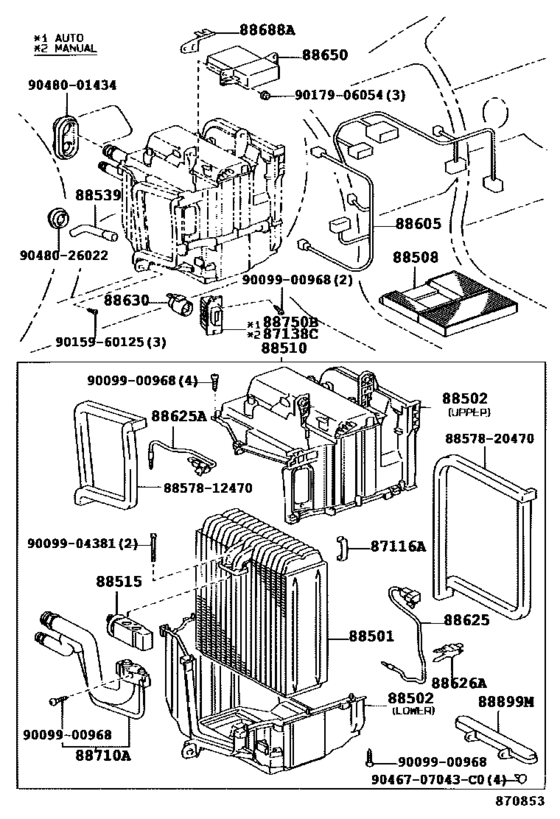

Heating & Air Conditioning - Cooler Unit ([08.1991 - ] MAKER OPTION (9108- )CP ; (9108- )AE100,EE104,108) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE100
- grade
- LX
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[08.1991 - 09.1994] AE10#,CE100,EE10# |
87116-14010 |
— | ||
|
88501
|
88501
88501-12360
Evaporator Sub-Assy, Cooler, No.1
[08.1991 - 05.1993] AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI); AE100..LX DEALER OPTION |
88501-12360 |
— | ||
|
88501
|
88501
88501-12390
Evaporator Sub-Assy, Cooler, No.1
[05.1993 - 08.1993] AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI); AE100..LX DEALER OPTION |
88501-12390 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-12391 Evaporator Sub-Assy, Cooler, No.1[05.1993 - 08.1993] AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI); AE100..LX DEALER OPTION |
88501-12391 |
US $515.42 |
||
|
88501
|
88501
88501-12391 Evaporator Sub-Assy, Cooler, No.1[03.1995 - 11.1995] AE100,101,EE10#..RHD |
88501-12391 |
US $515.42 |
||
|
88502
|
88502
88502-12160
Case Sub-Assy, Cooling Unit
[08.1991 - 05.1992] AE100,EE108..L,LX UPPER |
88502-12160 |
— | ||
|
88502
|
88502
88502-12170
Case Sub-Assy, Cooling Unit
[08.1991 - 10.1992] AE101..CP;AE100,EE108 LOWER |
88502-12170 |
— | ||
| replacements | |||||
|
88502
|
88502
88502-12270
Case Sub-Assy, Cooling Unit
[08.1991 - 10.1992] AE101..CP;AE100,EE108 LOWER |
88502-12270 |
— | ||
|
88502
|
88502
88718-1A680
Pipe, Cooler Refrigerant Suction, No.2
[08.1991 - 10.1992] AE101..CP;AE100,EE108 LOWER |
88718-1A680 |
— | ||
|
88502
|
88502
88899-12340 Plate, Cover(For Air Filter)[08.1991 - 10.1992] AE101..CP;AE100,EE108 LOWER |
88899-12340 |
US $11.01 |
||
|
88502
|
88502
88502-12180
Case Sub-Assy, Cooling Unit
[08.1991 - 05.1992] AE101..CP;AE100..GLI UPPER; AE100..LX AUTO,UPPER |
88502-12180 |
— | ||
|
88502
|
88502
88502-12200
Case Sub-Assy, Cooling Unit
[11.1992 - 11.1995] AE100,101,EE10#..RHD LOWER |
88502-12200 |
— | ||
|
88508
|
88508
88508-12010 Filter Sub-Assy, Clean Air[08.1991 - 10.1992] AE101..CP;AE100,EE108 |
88508-12010 |
US $45.60 |
||
|
88510
|
88510
88510-1A060
Unit Assy, Cooler
[08.1991 - 05.1992] AE100..LX DEALER OPT. |
88510-1A060 |
— | ||
|
88510
|
88510
88510-1A061
Unit Assy, Cooler
[11.1992 - 05.1993] AE100 DEALER OPT. |
88510-1A061 |
— | ||
|
88510
|
88510
88510-1A090
Unit Assy, Cooler
[08.1991 - 11.1992] AE100..LX AUTO,DEALER OPT. |
88510-1A090 |
— | ||
|
88510
|
88510
88510-1A091
Unit Assy, Cooler
[11.1992 - 05.1993] AE100..LX AUTO,DEALER OPT. |
88510-1A091 |
— | ||
|
88510
|
88510
88510-1A260
Unit Assy, Cooler
[05.1993 - 05.1995] AE101..SJ; AE100 DEALER OPT. |
88510-1A260 |
— | ||
|
88510
|
88510
88510-1A280
Unit Assy, Cooler
[05.1993 - 05.1995] AE100..GLI; AE100,101..LX,SJ AUTO,DEALER OPT. |
88510-1A280 |
— | ||
|
88515
|
88515
88515-14062
Valve, Cooler Expansion
[08.1991 - 11.1992] AE10#,CE100,EE10# |
88515-14062 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-33010 Valve, Cooler Expansion[08.1991 - 11.1992] AE10#,CE100,EE10# |
88515-33010 |
from US $132.72 |
||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[05.1993 - 08.1993] AE10#,CE100,EE10# |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[05.1993 - 08.1993] AE10#,CE100,EE10# |
88515-22240 |
from US $132.85 |
||
|
88515
|
88515
88515-33010 Valve, Cooler Expansion[11.1992 - 05.1993] AE100,EE108..L,LX; AE100..GLI DEALER OPTION |
88515-33010 |
from US $132.72 |
||
|
88539
|
88539
88539-12120
Hose, Cooler Unit Drain, No.1
[08.1991 - 09.1994] AE10#,CE100,EE10# |
88539-12120 |
— | ||
|
88605
|
88605
88605-1E620
Harness Sub-Assy, Cooler Wiring, No.1
[08.1991 - 06.1994] AE100..LX W(AUTOMATIC AIR CONDITIONER) |
88605-1E620 |
— | ||
|
88605
|
88605
88605-1E710
Harness Sub-Assy, Cooler Wiring, No.1
[08.1991 - 05.1993] AE100..LX W(HEATER) |
88605-1E710 |
— | ||
|
88605
|
88605
88605-1H630
Harness Sub-Assy, Cooler Wiring, No.1
[05.1993 - 08.1993] AE100..LX W(HEATER); AE100..GLI W/O(HEATER),DEALER OPT. |
88605-1H630 |
— | ||
|
88605
|
88605
88605-1H700
Harness Sub-Assy, Cooler Wiring, No.1
[06.1994 - 05.1995] AE100..LX W(AUTOMATIC AIR CONDITIONER) |
88605-1H700 |
— | ||
|
88605
|
88605
88605-1H710
Harness Sub-Assy, Cooler Wiring, No.1
[06.1994 - 05.1995] AE101..SJ; AE100 W(HEATER) |
88605-1H710 |
— | ||
|
88625
|
88625
88625-12240
Thermistor, Cooler, No.1
[08.1991 - 05.1993] AE100;AE101..CP |
88625-12240 |
— | ||
|
88625
|
88625
88625-12280 Thermistor, Cooler, No.1[05.1993 - 05.1995] AE100..LX AUTOMATIC AIR CONDITIONER |
88625-12280 |
US $12.23 |
||
|
88625A
|
88625A
88625-12300
Thermistor, Cooler No.2
[08.1991 - 05.1992] AE100,EE108..L,LX |
88625-12300 |
— | ||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[08.1991 - 09.1994] AE10#,CE100,EE10# |
88626-28010 |
— | ||
|
88630
|
88630
88630-12140
Relay Assy, Cooler
[08.1991 - 05.1995] AE100;AE101..CP |
88630-12140 |
— | ||
|
88650
|
88650
88650-1A410
Amplifier Assy, Cooler Stabilizer
[08.1991 - 05.1993] AE100..LX DEALER OPTION OR HONG KONG SPEC |
88650-1A410 |
— | ||
|
88650
|
88650
88650-1A460
Amplifier Assy, Cooler Stabilizer
[08.1991 - 05.1992] AE101..CP;AE100..GLI; AE100..LX AUTOMATIC AIR CONDITIONER |
88650-1A460 |
— | ||
|
88650
|
88650
88650-1A850
Amplifier Assy, Cooler Stabilizer
[05.1993 - 05.1995] AE100..GLI;AE101..GTAPX; AE100,101..LX,SJ AUTOMATIC AIR CONDITIONER |
88650-1A850 |
— | ||
|
88650
|
88650
88650-1A870
Amplifier Assy, Cooler Stabilizer
[05.1993 - 05.1995] AE101..SJ; AE100..GLI DEALER OPTION; AE100..LX DEALER OPTION OR HONG KONG SPEC |
88650-1A870 |
— | ||
|
88688A
|
88688A
88688-1A090
Bracket, Cooler Stabilizer Amplifier
[08.1991 - 05.1992] AE100,EE108..L,LX |
88688-1A090 |
— | ||
|
88710A
|
88710A
88710-12240 Tube Assy, Air Conditioner[08.1991 - 05.1993] AE10#,EE10#..RHD |
88710-12240 |
US $131.04 |
||
|
88710A
|
88710A
88710-12330 Tube Assy, Air Conditioner[05.1993 - 11.1995] AE100,101,EE10#..RHD |
88710-12330 |
US $145.60 |
||
|
88750B
|
88750B
88750-12010
Transistor Assy, Blower Resistor
[08.1991 - 05.1995] AE100;AE101..CP |
88750-12010 |
— | ||
|
88899M
|
88899M
88899-12110
Plate, Cover(For Air Filter)
[08.1991 - 10.1992] AE101..CP;AE100,EE108 |
88899-12110 |
— | ||
|
8857812470
|
8857812470
88578-12470
Packing, Cooling Unit, No.1
|
88578-12470 |
— | ||
|
8857820470
|
8857820470
88578-20470
Packing, Cooling Unit, No.1
|
88578-20470 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9046707043C0
|
9046707043C0
90467-07043-C0 Clip(For Rear Bumper Retainer) |
90467-07043-C0 |
from US $0.64 |
||
|
9048001434
|
9048001434
90480-01434 Grommet, (For Cooler Pipe) |
90480-01434 |
US $4.54 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
