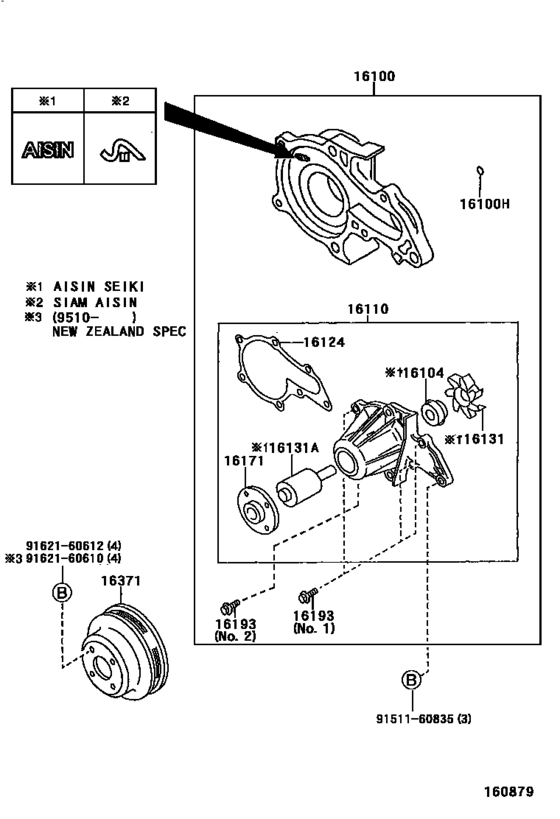

Water Pump ([08.1991 - ] (9108- )4AFE,5AFE,7AFE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE100
- grade
- LX
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19255
Pump Assy, Engine Water
[08.1991 - 09.1994] 4AFE,5AFE..AE100,101 |
16100-19255 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-19355 Pump Assy, Engine Water[08.1991 - 09.1994] 4AFE,5AFE..AE100,101 |
16100-19355 |
from US $156.31 |
||
|
16100H
|
16100H
96711-24035
Ring, O(For Water Pump)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
96711-24035 |
— | ||
| replacement | |||||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
96761-24035 |
US $3.84 |
||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[02.1995 - 09.1995] 4AF#,4AGE,5AFE,7AFE..AE10# |
96761-24035 |
US $3.84 |
||
|
16104
|
16104
16104-16040 Seal Set, Water Pump[08.1991 - 08.1992] 4AFE,4AGE,5AFE..AE10# |
16104-16040 |
US $33.49 |
||
|
16104
|
16104
16104-74010 Seal Set, Water Pump[02.1995 - 03.1995] 4AF#,4AGE,5AFE..AE100,101..GCC,GEN |
16104-74010 |
US $33.20 |
||
|
16110
|
16110
16110-19135 Pump Assy, Water, W/o Coupling[08.1991 - 05.1995] 4AFE,5AFE..AE100,101..GCC,GEN AISIN SEIKI |
16110-19135 |
US $110.66 |
||
| replacement | |||||
|
16110
|
16110
16110-19205 Pump Assy, Water, W/o Coupling[08.1991 - 05.1995] 4AFE,5AFE..AE100,101..GCC,GEN AISIN SEIKI |
16110-19205 |
US $106.58 |
||
|
16110
|
16110
16110-19145 Pump Assy, Water, W/o Coupling[08.1991 - 10.1996] 4AFE,5AFE..AE100,101..GCC,GEN AISAN |
16110-19145 |
US $110.66 |
||
| replacement | |||||
|
16110
|
16110
16110-19146 Pump Assy, Water, W/o Coupling[08.1991 - 10.1996] 4AFE,5AFE..AE100,101..GCC,GEN AISAN |
16110-19146 |
from US $83.87 |
||
|
16124
|
16124
16124-15100
Gasket, Water Pump Cover
[08.1991 - 08.1992] 4AFE,5AFE..AE10# AISAN |
16124-15100 |
— | ||
| replacement | |||||
|
16124
|
16124
16124-16060
Gasket, Water Pump Cover
[08.1991 - 08.1992] 4AFE,5AFE..AE10# AISAN |
16124-16060 |
— | ||
|
16124
|
16124
16124-16020 Gasket, Water Pump Cover[08.1991 - 05.1995] 4AF#,5AFE..AE100,101..GCC,GEN AISIN SEIKI |
16124-16020 |
from US $4.35 |
||
|
16124
|
16124
16124-16060
Gasket, Water Pump Cover
[08.1992 -] 4AFE,5AFE,7AFE..AE10#..GCC,GEN AISAN |
16124-16060 |
— | ||
|
16131
|
16131
16131-16020 Rotor, Water Pump[08.1991 - 09.1994] 4AFE,4AGE,5AFE,7AFE..AE10# |
16131-16020 |
US $10.92 |
||
|
16131A
|
16131A
90369-35071 Bearing, Water Pump[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90369-35071 |
US $39.31 |
||
|
16171
|
16171
16171-10012 Seat, Water Pump Pulley[08.1991 -] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISIN SEIKI |
16171-10012 |
US $19.66 |
||
|
16171
|
16171
16171-15070 Seat, Water Pump Pulley[08.1991 - 10.1996] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISAN |
16171-15070 |
US $21.11 |
||
|
16193
|
16193
16193-15011 Bolt, Stud(For Water Pump Cover)[08.1991 - 05.1995] 4AGE..AE101; 4AFE,5AFE,7AFE..AE10#..GCC,GEN AISIN, NO.1 |
16193-15011 |
US $4.80 |
||
|
16193
|
16193
16193-15090 Bolt, Stud(For Water Pump Cover)[08.1991 - 05.1995] 4AFE,5AFE,7AFE..AE10#..GCC,GEN AISIN, NO.2 |
16193-15090 |
US $3.49 |
||
|
16193
|
16193
16193-15100 Bolt, Stud(For Water Pump Cover)[08.1991 -] 4AFE,5AFE,7AFE..AE10#..GCC,GEN AISAN |
16193-15100 |
US $1.89 |
||
|
16371
|
16371
16371-02030 Pulley, Fan[08.1994 - 09.1994] 4AFE,5AFE,7AFE..AE10#..GEN (L) |
16371-02030 |
US $39.89 |
||
|
16371
|
16371
16371-15050
Pulley, Fan
[08.1991 - 02.1995] 4AFE,5AFE,7AFE..AE10#..GEN (J) |
16371-15050 |
— | ||
| replacement | |||||
|
16371
|
16371
16371-15071 Pulley, Fan[08.1991 - 02.1995] 4AFE,5AFE,7AFE..AE10#..GEN (J) |
16371-15071 |
US $37.27 |
||
|
16371
|
16371
16371-15070 Pulley, Fan[02.1995 - 09.1995] 4AFE,5AFE,7AFE..AE10#..GEN,TUR (J) |
16371-15070 |
US $44.55 |
||
| replacement | |||||
|
16371
|
16371
16371-15071 Pulley, Fan[02.1995 - 09.1995] 4AFE,5AFE,7AFE..AE10#..GEN,TUR (J) |
16371-15071 |
US $37.27 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.42 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
