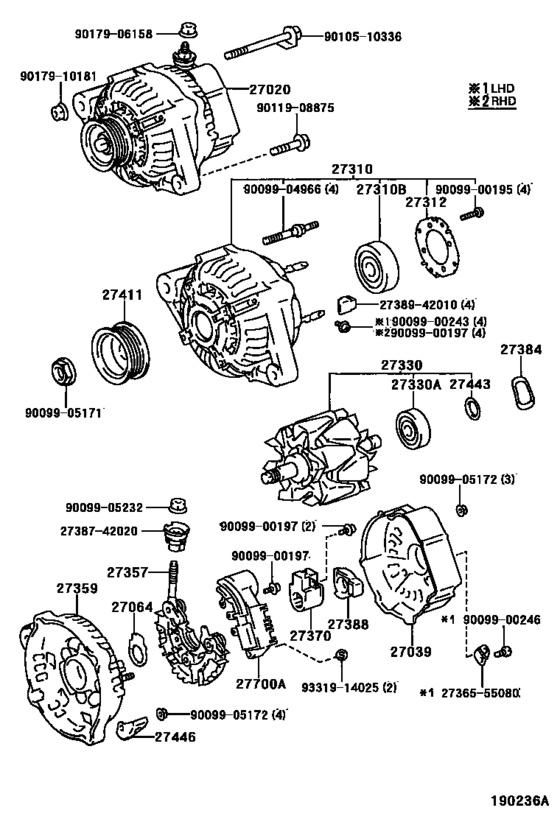

Alternator ([08.1991 - ] 12V 70A (9108- )4AFE,5AFE,7AFE..ATM) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE100
- grade
- GLI
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-15060 Alternator Assy[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ 12V 70A |
27060-15060 |
US $1,557.92 |
||
|
27020
|
27020
27060-15090 Alternator Assy[05.1992 - 09.1994] 4AFE,5AFE,7AFE..AE10#..ATM 12V 70A |
27060-15090 |
US $1,557.92 |
||
| replacement | |||||
|
27020
|
27020
27060-16430 Alternator Assy[05.1992 - 09.1994] 4AFE,5AFE,7AFE..AE10#..ATM 12V 70A |
27060-16430 |
US $1,557.92 |
||
|
27039
|
27039
27039-16310
Cover, Alternator Rear End
[03.1992 - 05.1992] 4AFE,5AFE..AE10#..ATM |
27039-16310 |
— | ||
|
27039
|
27039
27039-42010
Cover, Alternator Rear End
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27039-42010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16310
Cover, Alternator Rear End
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27039-16310 |
— | ||
|
27039
|
27039
27039-55080
Cover, Alternator Rear End
[05.1992 - 09.1994] 2C..CE100;4AFE,5AFE,7AFE..AE10#..ATM |
27039-55080 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-70470
Cover, Alternator Rear End
[05.1992 - 09.1994] 2C..CE100;4AFE,5AFE,7AFE..AE10#..ATM |
27039-70470 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-15180
Frame Assy, Drive End, Alternator
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27310-15180 |
— | ||
| replacement | |||||
|
27310
|
27310
27310-16430
Frame Assy, Drive End, Alternator
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27310-16430 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27312-42010 |
— | ||
|
27330
|
27330
27330-76030
Rotor Assy, Alternator
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27330-76030 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27330-16390 |
US $132.79 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1991 - 09.1994] 4AF#,5AFE,7AFE,2C,4EFE..AE10#,CE100,EE101 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-55080 Holder, Alternator, W/rectifier[05.1992 - 09.1994] 4AFE,5AFE,7AFE..AE10#..ATM |
27357-55080 |
from US $82.47 |
||
|
27357
|
27357
27357-62040
Holder, Alternator, W/rectifier
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27357-62040 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-74160
Holder, Alternator, W/rectifier
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27357-74160 |
— | ||
|
27359
|
27359
27359-15180
Frame, Alternator Rectifier End
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27359-15180 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27384-50030 |
from US $2.80 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27388-42010 |
from US $2.28 |
||
|
27411
|
27411
27411-42030
Pulley, Alternator
[08.1991 - 12.1991] 5AFE..AE100..ATM;4AFE..AE101..4FC..SJ |
27411-42030 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1991 - 09.1994] 2E..EE100..MTM;2E..EE100..LHD..3FC;4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,C E100,EE101,104,105,108 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-15170
Clip, Alternator Cord
[08.1991 - 09.1994] 4AFE,5AFE,7AFE..AE10# |
27446-15170 |
— | ||
|
27700A
|
27700A
27700-46030 Regulator Assy, Generator[08.1991 - 05.1992] 4A#,5AFE..AE10# |
27700-46030 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72090
Regulator Assy, Generator
[08.1991 - 05.1992] 4A#,5AFE..AE10# |
27700-72090 |
— | ||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[05.1992 - 05.1993] 4AFE,4AGE,5AFE,2C..AE10#,CE100 |
27700-74030 |
US $258.59 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738742020
|
2738742020
27387-42020
Insulator, Terminal
|
27387-42020 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010510336
|
9010510336
90105-10336 Bolt(For Alternator) |
90105-10336 |
US $4.96 |
||
|
9011908875
|
9011908875
90119-08875 Bolt(For Alternator) |
90119-08875 |
US $3.04 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
