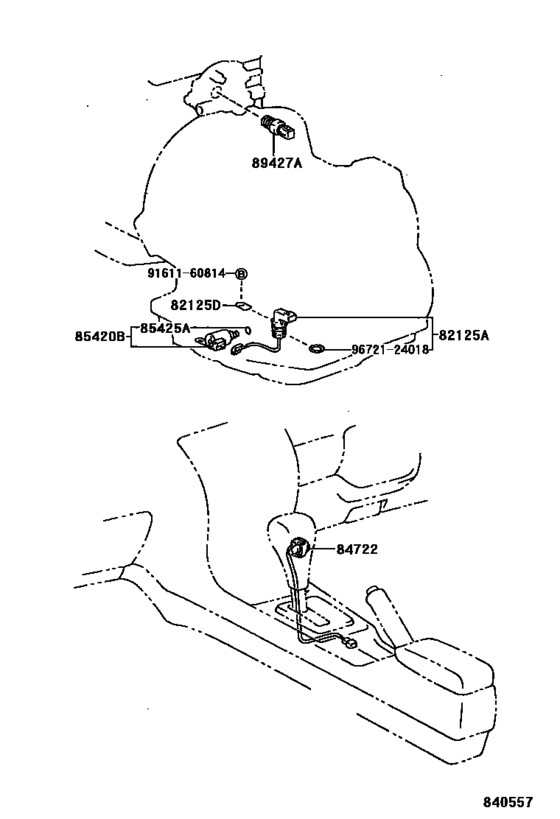

Overdrive & Electronic Controlled Transmission ([08.1991 - ] (9108- )SED,WG..4FC) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE100
- grade
- GLI
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-20170 Wire, Transmission[08.1991 - 09.1994] AE10#..(SED,WG)..4FC |
82125-20170 |
US $24.75 |
||
|
82125D
|
82125D
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[08.1991 - 05.1993] AE10#..4FC |
33485-30020 |
US $2.56 |
||
|
84722
|
84722
84722-12050-B0
Switch, Transmission Control
[08.1991 -] AE100,101..RHD..SED..4FC SHADOW GRAY,TRIM1# |
84722-12050-B0 |
— | ||
| replacement | |||||
|
84722
|
84722
84722-12060-B0
Switch, Transmission Control
[08.1991 -] AE100,101..RHD..SED..4FC SHADOW GRAY,TRIM1# |
84722-12060-B0 |
— | ||
|
84722
|
84722
84722-12050-J0 Switch, Transmission Control[08.1991 - 05.1993] AE10#..RHD..SED..4FC DARK BLUE,TRIM8# |
84722-12050-J0 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-12060-B0
Switch, Transmission Control
[08.1991 - 05.1993] AE10#..RHD..SED..4FC DARK BLUE,TRIM8# |
84722-12060-B0 |
— | ||
|
84722
|
84722
84722-12050-K0 Switch, Transmission Control[08.1991 - 05.1995] AE100,101..RHD..SED..4FC TAUPE,TRIM9# |
84722-12050-K0 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-12060-B0
Switch, Transmission Control
[08.1991 - 05.1995] AE100,101..RHD..SED..4FC TAUPE,TRIM9# |
84722-12060-B0 |
— | ||
|
85420B
|
85420B
85420-10011
Solenoid Assy, Transmission
[08.1991 - 09.1994] AE10#..(SED,WG)..4FC |
85420-10011 |
— | ||
|
85425A
|
85425A
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1991 - 09.1994] AE10#..(SED,WG)..4FC |
90301-06004 |
from US $1.92 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $4.11 |
||
