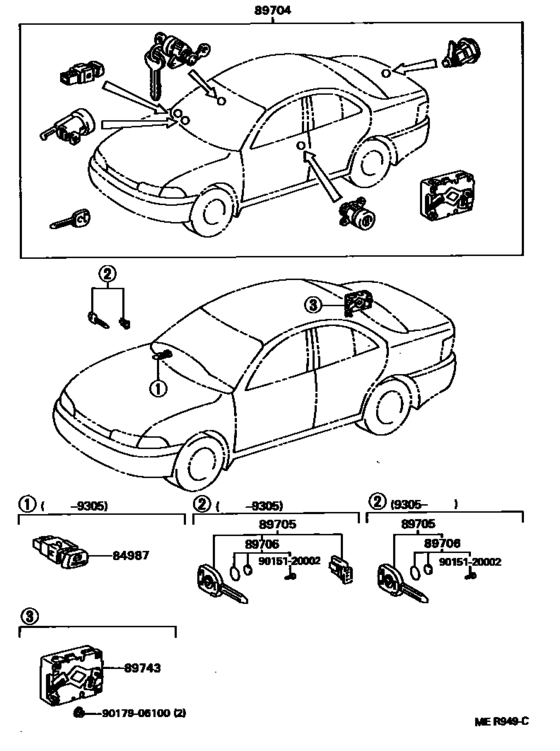

Wireless Door Lock ([08.1991 - 05.1993] (9108-9305)AE100..GLI) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE100
- grade
- GLI
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84987
|
84987
84987-12010 Switch, Wireless Door Lock Main[08.1991 - 05.1993] AE100..GLI |
84987-12010 |
US $49.50 |
||
|
89704
|
89704
89704-12020 Control Set, Wireless Door Lock[08.1991 - 05.1993] AE100..GLI |
89704-12020 |
US $1,208.48 |
||
| replacement | |||||
|
89704
|
89704
89708-12010 Control Set, Wireless Door Lock[08.1991 - 05.1993] AE100..GLI |
89708-12010 |
US $528.53 |
||
|
89705
|
89705
89705-12010 Transmitter, Door Control[08.1991 - 05.1993] AE100..GLI |
89705-12010 |
US $433.89 |
||
|
89706
|
89706
89706-50010
Battery Set, Transmitter
[08.1991 - 05.1993] AE100..GLI |
89706-50010 |
— | ||
| replacements | |||||
|
89706
|
89706
89745-48020 Battery, Transmitter[08.1991 - 05.1993] AE100..GLI |
89745-48020 |
from US $7.04 |
||
|
89706
|
89706
90151-20002 SCREW[08.1991 - 05.1993] AE100..GLI |
90151-20002 |
US $0.70 |
||
|
89706
|
89706
90301-14005 New Genuine Part[08.1991 - 05.1993] AE100..GLI |
90301-14005 |
US $3.84 |
||
|
89743
|
89743
89743-12010 Receiver, Door ControlDOOR CONTROL [08.1991 - 05.1993] AE100..GLI |
89743-12010 |
US $637.73 |
||
|
9015120002
|
9015120002
90151-20002 SCREW |
90151-20002 |
US $0.70 |
||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
