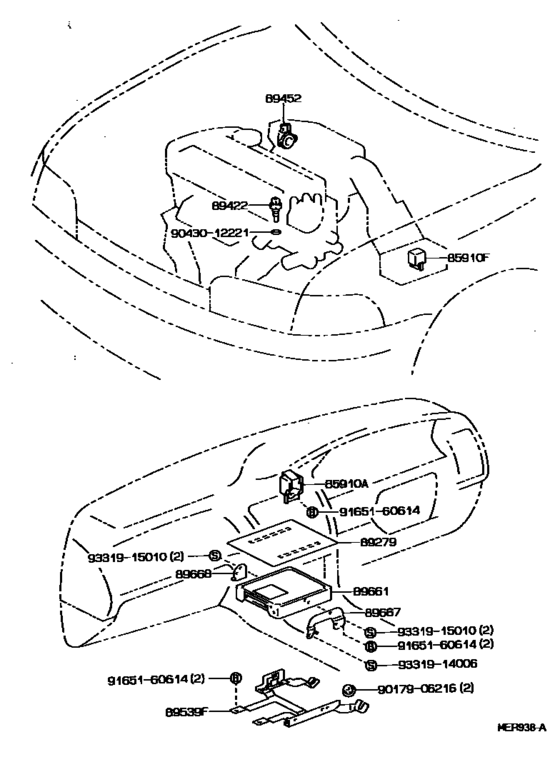

Electronic Fuel Injection System ([08.1991 - ] (9108- )GTAPX) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- GTAPX
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-12080
Relay Assy, Circuit Opening (For Efi)
[08.1991 - 05.1995] AE101..GTAPX |
85910-12080 |
— | ||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1991 - 05.1992] AE10# |
90987-02009 |
from US $33.87 |
||
|
89279
|
89279
89279-12080
Cover, Engine Control Computer
[08.1991 - 07.1993] AE10#,EE101..GLI,GTAPX,LX,SEG,SJ,XLI |
89279-12080 |
— | ||
|
89279
|
89279
89279-12110 Cover, Engine Control Computer[07.1994 - 09.1994] AE101..5F..SJ;AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,XLI |
89279-12110 |
US $4.22 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1991 - 09.1994] AE10#..GLI,GTAPX,LX,SEG,SJ,XLI |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-22080 Sensor, Throttle Position (For E.f.i.)[08.1991 - 05.1995] AE101..GTAPX |
89452-22080 |
from US $133.44 |
||
|
89539F
|
89539F
89539-12050 Bracket, Computer[08.1991 - 02.1994] AE10#,EE100,101,104,105 |
89539-12050 |
US $22.42 |
||
|
89661
|
89661
89661-12770 Computer, Engine Control[08.1991 - 05.1992] AE101..GTAPX |
89661-12770 |
US $1,659.84 |
||
| replacement | |||||
|
89661
|
89661
89661-12771
Computer, Engine Control
[08.1991 - 05.1992] AE101..GTAPX |
89661-12771 |
— | ||
|
89661
|
89661
89661-12771
Computer, Engine Control
[05.1992 - 05.1993] AE101..GTAPX |
89661-12771 |
— | ||
|
89661
|
89661
89661-1A190
Computer, Engine Control
[05.1993 - 05.1995] AE101..GTAPX |
89661-1A190 |
— | ||
|
89667
|
89667
89667-12110 Bracket, Emission Control Computer, No.1[08.1991 - 09.1994] AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI |
89667-12110 |
US $7.72 |
||
|
89668
|
89668
89668-12050 Bracket, Emission Control Computer, No.2[08.1991 - 09.1994] AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI |
89668-12050 |
US $5.10 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
