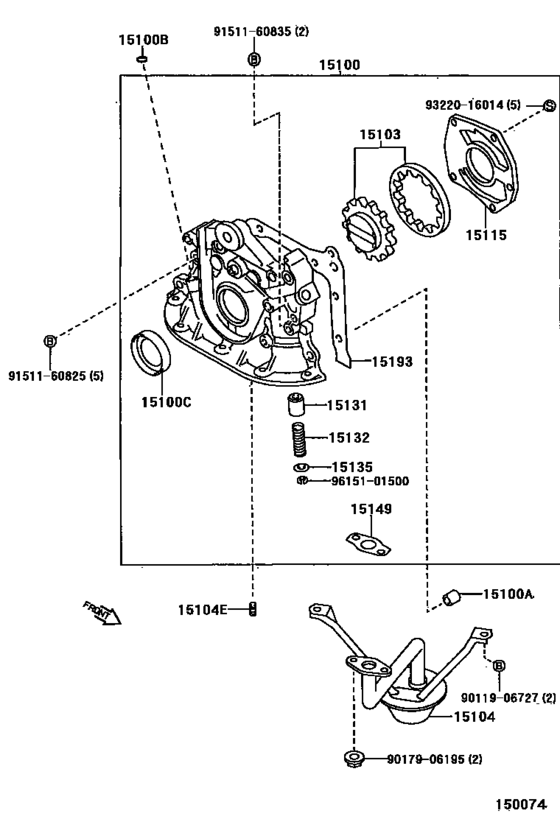

Engine Oil Pump ([08.1991 - 05.1995] (9108-9505)4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- GTAPX
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-19036 Pump Assy, Oil[08.1991 - 05.1995] 4AGE..AE101 |
15100-19036 |
from US $114.97 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90253-11021 |
from US $1.50 |
||
|
15100B
|
15100B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
96721-19010 |
from US $1.64 |
||
|
15100C
|
15100C
90311-32018
Seal(For Oil Pump)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90311-32018 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-32020 Oil Seal[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90311-32020 |
from US $5.60 |
||
|
15103
|
15103
15103-16030
Gear Set, Oil Pump
[08.1991 - 05.1995] 4AGE..AE101 |
15103-16030 |
— | ||
|
15104
|
15104
15104-15080
Strainer Sub-Assy, Oil
[08.1991 - 01.1992] 4A#,5AFE..AE10# |
15104-15080 |
— | ||
| replacement | |||||
|
15104
|
15104
15104-15090 Strainer Sub-Assy, Oil[08.1991 - 01.1992] 4A#,5AFE..AE10# |
15104-15090 |
from US $36.64 |
||
|
15104
|
15104
15104-15090 Strainer Sub-Assy, Oil[01.1992 - 09.1994] 4AF#,4AGE,5AFE..AE100,101 |
15104-15090 |
from US $36.64 |
||
|
15104E
|
15104E
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[08.1991 - 05.1995] 4AGE..AE101 |
90116-06022 |
from US $1.95 |
||
|
15115
|
15115
15115-15020 Cover, Oil Pump[08.1991 - 09.1994] 4AGE..AE101 |
15115-15020 |
US $21.84 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[08.1991 - 09.1994] 4AGE..AE101 |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[08.1991 - 09.1994] 4AGE..AE101 |
15132-40010 |
from US $2.96 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[08.1991 - 09.1994] 4AGE..AE101 |
15135-15010 |
US $4.80 |
||
|
15149
|
15149
15149-15011 Gasket, Oil Strainer Flange[08.1991 - 05.1992] 4A#,5AFE..AE10# |
15149-15011 |
US $3.20 |
||
| replacement | |||||
|
15149
|
15149
15149-16010 Gasket, Oil Strainer Flange[08.1991 - 05.1992] 4A#,5AFE..AE10# |
15149-16010 |
from US $1.27 |
||
|
15149
|
15149
15149-16010 Gasket, Oil Strainer Flange[05.1992 -] 4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN |
15149-16010 |
from US $1.27 |
||
|
15193
|
15193
15197-15012
Gasket, Oil Pump
[08.1991 - 08.1994] 4AF#,4AGE,5AFE..AE100,101 |
15197-15012 |
— | ||
| replacement | |||||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[08.1991 - 08.1994] 4AF#,4AGE,5AFE..AE100,101 |
15197-16030 |
from US $9.59 |
||
|
15193
|
15193
15197-15030 Gasket, Oil Pump[08.1994 - 08.1999] 4AF#,4AGE,5AFE..AE100,101..GCC,GEN |
15197-15030 |
US $11.94 |
||
| replacement | |||||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[08.1994 - 08.1999] 4AF#,4AGE,5AFE..AE100,101..GCC,GEN |
15197-16030 |
from US $9.59 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $1.92 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.78 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
