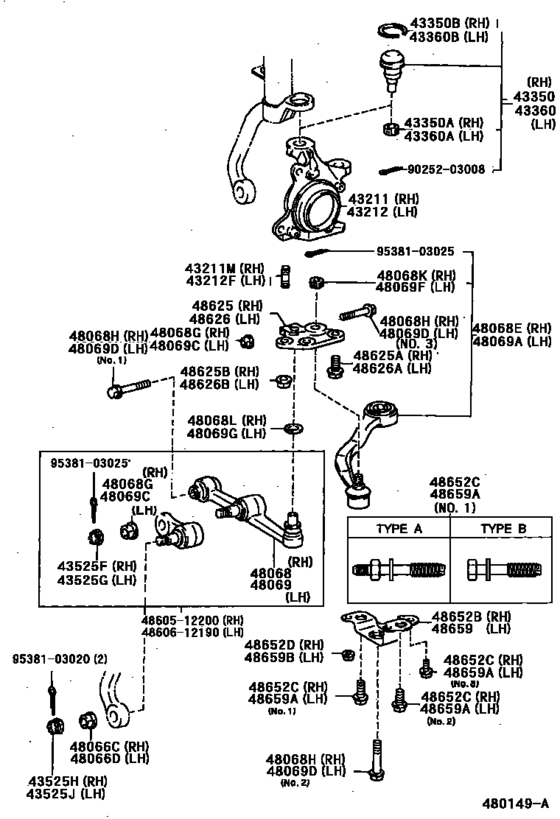

Front Axle Arm & Steering Knuckle ([08.1991 - ] W(SUPER SUTRUT SUSPENSION) (9108- )GTAPX) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- GTAPX
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-12180 Knuckle, Steering, Rh[08.1991 - 05.1995] AE101..GTAPX W(ABS & SUPER STRUT SUSPENSION) |
43211-12180 |
US $241.70 |
||
|
43211
|
43211
43211-12220
Knuckle, Steering, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,105,108 W(POWER STEERING) |
43211-12220 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-12290
Knuckle, Steering, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,105,108 W(POWER STEERING) |
43211-12290 |
— | ||
|
43211
|
43211
43211-12240 Knuckle, Steering, Rh[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
43211-12240 |
US $251.89 |
||
| replacements | |||||
|
43211
|
43211
43211-12300
Knuckle, Steering, Rh
[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
43211-12300 |
— | ||
|
43211
|
43211
90389-16020 New Genuine Part[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
90389-16020 |
US $1.05 |
||
|
43211M
|
43211M
90126-12001 Stud, Hexagon Lobular (For Steering Knuckle Rh)[08.1991 - 05.1995] AE101..GTAPX |
90126-12001 |
US $6.29 |
||
|
43212
|
43212
43212-12140 Knuckle, Steering, Lh[08.1991 - 05.1995] AE101..GTAPX W(ABS & SUPER STRUT SUSPENSION) |
43212-12140 |
US $241.70 |
||
|
43212
|
43212
43212-12180
Knuckle, Steering, Lh
[05.1992 - 05.1995] EE100..GCC,GEN;AE101,CE100,EE105..GL,GLI,GTAPX,SEG,STD,XL,XLI W(POWER STEERING) |
43212-12180 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-12250
Knuckle, Steering, Lh
[05.1992 - 05.1995] EE100..GCC,GEN;AE101,CE100,EE105..GL,GLI,GTAPX,SEG,STD,XL,XLI W(POWER STEERING) |
43212-12250 |
— | ||
|
43212
|
43212
43212-12200 Knuckle, Steering, Lh[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
43212-12200 |
US $251.89 |
||
| replacements | |||||
|
43212
|
43212
43212-12260 Knuckle, Steering, Lh[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
43212-12260 |
US $251.89 |
||
|
43212
|
43212
90389-16020 New Genuine Part[08.1991 - 05.1995] AE100;AE101..CP W(ABS) |
90389-16020 |
US $1.05 |
||
|
43212F
|
43212F
90126-12001 Stud, Hexagon Lobular (For Steering Knuckle Rh)[08.1991 - 05.1995] AE101..GTAPX |
90126-12001 |
US $6.29 |
||
|
43350
|
43350
43310-19025 Joint Assy, Front Upper Ball, Rh[08.1991 - 05.1995] AE101..GTAPX |
43310-19025 |
US $67.49 |
||
|
43350A
|
43350A
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1991 - 05.1995] AE101..GTAPX |
90171-14003 |
from US $1.37 |
||
|
43350B
|
43350B
90520-33017 Ring, Shaft Snap (For Gear Thrust Washer)[08.1991 - 05.1995] AE101..GTAPX |
90520-33017 |
US $3.68 |
||
|
43360
|
43360
43310-19025 Joint Assy, Front Upper Ball, Rh[08.1991 - 05.1995] AE101..GTAPX |
43310-19025 |
US $67.49 |
||
|
43360A
|
43360A
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1991 - 05.1995] AE101..GTAPX |
90171-14003 |
from US $1.37 |
||
|
43360B
|
43360B
90520-33017 Ring, Shaft Snap (For Gear Thrust Washer)[08.1991 - 05.1995] AE101..GTAPX |
90520-33017 |
US $3.68 |
||
|
43525F
|
43525F
43525-12010 Cap, Front Suspension Lower Arm, Rh[08.1991 - 05.1995] AE101..GTAPX |
43525-12010 |
US $3.32 |
||
|
43525G
|
43525G
43525-12010 Cap, Front Suspension Lower Arm, Rh[08.1991 - 05.1995] AE101..GTAPX |
43525-12010 |
US $3.32 |
||
|
43525H
|
43525H
43525-12010 Cap, Front Suspension Lower Arm, Rh[08.1991 - 05.1995] AE101..GTAPX |
43525-12010 |
US $3.32 |
||
|
43525J
|
43525J
43525-12010 Cap, Front Suspension Lower Arm, Rh[08.1991 - 05.1995] AE101..GTAPX |
43525-12010 |
US $3.32 |
||
|
48066C
|
48066C
90179-14053 Nut(For Front Suspension Camber Control Arm Rh)[08.1991 - 05.1995] AE101..GTAPX |
90179-14053 |
US $3.49 |
||
|
48066D
|
48066D
90179-14053 Nut(For Front Suspension Camber Control Arm Rh)[08.1991 - 05.1995] AE101..GTAPX |
90179-14053 |
US $3.49 |
||
|
48068
|
48068
48068-12140 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1991 - 05.1995] AE102;AE101..CP;AE101..TUR |
48068-12140 |
US $190.74 |
||
|
48068
|
48068
48605-12090
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48605-12090 |
— | ||
| replacement | |||||
|
48068
|
48068
48605-12200
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48605-12200 |
— | ||
|
48068E
|
48068E
48068-19155 Arm Sub-Assy, Front Suspension, Lower No.2 Rh[08.1991 - 05.1995] AE101..GTAPX |
48068-19155 |
US $331.97 |
||
|
48068G
|
48068G
90179-10075 Nut(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX ATTACHMENT SIDE |
90179-10075 |
US $1.22 |
||
|
48068G
|
48068G
90179-14006 Nut(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE10#,CE100,EE10# |
90179-14006 |
US $3.32 |
||
|
48068G
|
48068G
90179-14053 Nut(For Front Suspension Camber Control Arm Rh)[08.1991 - 05.1995] AE101..GTAPX CONTROL ARM SIDE |
90179-14053 |
US $3.49 |
||
|
48068H
|
48068H
90119-14023 Bolt(For Front Suspension Lower Arm)[08.1991 - 09.1994] AE10#,CE100,EE10# |
90119-14023 |
from US $4.39 |
||
|
48068H
|
48068H
90119-14041 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION),NO.2 |
90119-14041 |
US $9.76 |
||
|
48068K
|
48068K
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1991 - 05.1995] AE101..GTAPX |
90171-14003 |
from US $1.37 |
||
|
48068L
|
48068L
90201-18019 Washer(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX |
90201-18019 |
US $2.48 |
||
|
48069
|
48069
48069-12140 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1991 - 05.1995] AE102;AE101..CP;AE101..TUR |
48069-12140 |
US $190.74 |
||
|
48069
|
48069
48606-12080
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48606-12080 |
— | ||
| replacement | |||||
|
48069
|
48069
48606-12190
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48606-12190 |
— | ||
|
48069A
|
48069A
48069-19135 Arm Sub-Assy, Front Suspension, Lower No.2 Lh[08.1991 - 05.1995] AE101..GTAPX |
48069-19135 |
US $199.47 |
||
|
48069C
|
48069C
90179-10075 Nut(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX ATTACHMENT SIDE |
90179-10075 |
US $1.22 |
||
|
48069C
|
48069C
90179-14006 Nut(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE10#,CE100,EE10# |
90179-14006 |
US $3.32 |
||
|
48069C
|
48069C
90179-14053 Nut(For Front Suspension Camber Control Arm Rh)[08.1991 - 05.1995] AE101..GTAPX CONTROL ARM SIDE |
90179-14053 |
US $3.49 |
||
|
48069D
|
48069D
90119-14023 Bolt(For Front Suspension Lower Arm)[08.1991 - 09.1994] AE10#,CE100,EE10# |
90119-14023 |
from US $4.39 |
||
|
48069D
|
48069D
90119-14041 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION),NO.2 |
90119-14041 |
US $9.76 |
||
|
48069F
|
48069F
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[08.1991 - 05.1995] AE101..GTAPX |
90171-14003 |
from US $1.37 |
||
|
48069G
|
48069G
90201-18019 Washer(For Front Suspension Lower Arm No.1 Rh)[08.1991 - 05.1995] AE101..GTAPX |
90201-18019 |
US $2.48 |
||
|
48625
|
48625
48625-12010
Attachment, Front Lower Ball Joint, Rh
[08.1991 - 05.1995] AE101..GTAPX |
48625-12010 |
— | ||
|
48625A
|
48625A
90105-12223 Bolt(For Front Lower Ball Joint Attachment Rh)[08.1991 - 05.1995] AE101..GTAPX |
90105-12223 |
US $4.16 |
||
|
48625B
|
48625B
90179-12077 Nut(For Front Lower Ball Joint Attachment Rh)[08.1991 - 05.1995] AE101..GTAPX |
90179-12077 |
US $2.56 |
||
|
48626
|
48626
48626-12010 Attachment, Front Lower Ball Joint, Lh[08.1991 - 05.1995] AE101..GTAPX |
48626-12010 |
US $49.21 |
||
|
48626A
|
48626A
90105-12223 Bolt(For Front Lower Ball Joint Attachment Rh)[08.1991 - 05.1995] AE101..GTAPX |
90105-12223 |
US $4.16 |
||
|
48626B
|
48626B
90179-12077 Nut(For Front Lower Ball Joint Attachment Rh)[08.1991 - 05.1995] AE101..GTAPX |
90179-12077 |
US $2.56 |
||
|
48652B
|
48652B
48075-12010
Bracket, Front Lower Arm, Rh
[08.1991 - 05.1992] AE101..CP |
48075-12010 |
— | ||
|
48652B
|
48652B
48652-12030 Bracket, Front Lower Arm, Rh[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48652-12030 |
US $37.71 |
||
|
48652C
|
48652C
90119-10692 Bolt(For Front Lower Arm Bracket Rh)[08.1991 - 09.1994] AE10#,CE100,EE10# *10-1.25PX29-23,NO.2 |
90119-10692 |
US $3.52 |
||
|
48652C
|
48652C
90119-12125 Bolt(For Front Lower Arm Bracket Rh)[08.1991 - 09.1994] AE10#,CE100,EE10# *12-1.25PX31-25.3,NO.3 |
90119-12125 |
US $4.16 |
||
|
48652C
|
48652C
90119-12238
Bolt(For Front Lower Arm Bracket Rh)
[08.1991 - 09.1994] AE10#,CE100,EE10# *12-1.25PX75-38,NO.1 |
90119-12238 |
— | ||
|
48652D
|
48652D
90179-08072 Nut(For Front Lower Arm Bracket Rh)[08.1991 - 08.1994] AE10#,CE100,EE10# |
90179-08072 |
from US $1.28 |
||
|
48652D
|
48652D
90179-08145 Nut(For Front Lower Arm Bracket Rh)[08.1994 - 09.1994] AE10#,CE100,EE10# |
90179-08145 |
US $1.31 |
||
| replacement | |||||
|
48652D
|
48652D
90179-08123 Nut (For Front Wiper Arm Setting)[08.1994 - 09.1994] AE10#,CE100,EE10# |
90179-08123 |
from US $2.13 |
||
|
48659
|
48659
48076-12010 Bracket, Front Lower Arm, Lh[08.1991 - 05.1992] AE101..CP |
48076-12010 |
US $38.15 |
||
|
48659
|
48659
48659-12030 Bracket, Front Lower Arm, Lh[08.1991 - 05.1995] AE101..GTAPX W(SUPER STRUT SUSPENSION) |
48659-12030 |
US $37.71 |
||
|
48659A
|
48659A
90119-10692 Bolt(For Front Lower Arm Bracket Rh)[08.1991 - 09.1994] AE10#,CE100,EE10# *10-1.25PX29-23,NO.2 |
90119-10692 |
US $3.52 |
||
|
48659A
|
48659A
90119-12125 Bolt(For Front Lower Arm Bracket Rh)[08.1991 - 09.1994] AE10#,CE100,EE10# *12-1.25PX31-25.3,NO.3 |
90119-12125 |
US $4.16 |
||
|
48659A
|
48659A
90119-12238
Bolt(For Front Lower Arm Bracket Rh)
[08.1991 - 09.1994] AE10#,CE100,EE10# *12-1.25PX75-38,NO.1 |
90119-12238 |
— | ||
|
48659B
|
48659B
90179-08072 Nut(For Front Lower Arm Bracket Rh)[08.1991 - 08.1994] AE10#,CE100,EE10# |
90179-08072 |
from US $1.28 |
||
|
48659B
|
48659B
90179-08145 Nut(For Front Lower Arm Bracket Rh)[08.1994 - 09.1994] AE10#,CE100,EE10# |
90179-08145 |
US $1.31 |
||
| replacement | |||||
|
48659B
|
48659B
90179-08123 Nut (For Front Wiper Arm Setting)[08.1994 - 09.1994] AE10#,CE100,EE10# |
90179-08123 |
from US $2.13 |
||
|
4860512200
|
4860512200
48605-12200
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
|
48605-12200 |
— | ||
|
4860612190
|
4860612190
48606-12190
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
|
48606-12190 |
— | ||
|
9025203008
|
9025203008
90252-03008 PIN COTTER |
90252-03008 |
US $1.12 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
