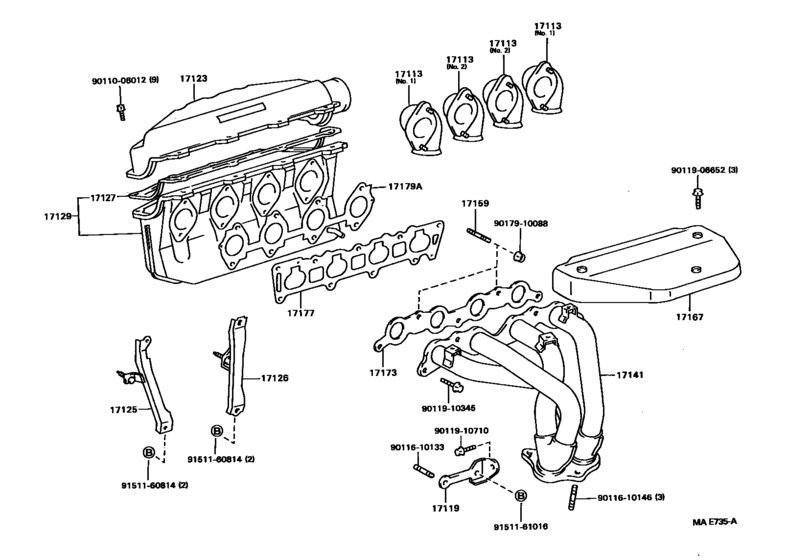

Manifold ([08.1991 - 05.1995] (9108-9505)4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- GTAPX
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17113
|
17113
17113-16010 Pipe, Intake[08.1991 - 05.1995] 4AGE..AE101 NO.1 |
17113-16010 |
US $64.36 |
||
|
17113
|
17113
17115-16010 Pipe, Intake[08.1991 - 05.1995] 4AGE..AE101 NO.2 |
17115-16010 |
US $31.60 |
||
|
17119
|
17119
17118-16090
Stay, Manifold, No.2
[08.1991 - 05.1995] 4AGE..AE101 |
17118-16090 |
— | ||
|
17123
|
17123
17123-16010 Cover, Surge Tank[08.1991 - 05.1995] 4AGE..AE101 |
17123-16010 |
US $243.15 |
||
|
17125
|
17125
17125-16060 Stay, Surge Tank, No.1[08.1991 - 05.1995] 4AGE..AE101 |
17125-16060 |
US $28.10 |
||
|
17126
|
17126
17126-16010
Stay, Surge Tank, No.2
[08.1991 - 05.1995] 4AGE..AE101 |
17126-16010 |
— | ||
|
17127
|
17127
17127-16010
Gasket, Surge Tank Cover
[08.1991 - 05.1995] 4AGE..AE101 |
17127-16010 |
— | ||
|
17129
|
17129
17129-16020 Tank, Intake Air Surge[08.1991 - 05.1995] 4AGE..AE101 |
17129-16020 |
US $607.15 |
||
|
17141
|
17141
17141-16280 Manifold, Exhaust[08.1991 - 05.1995] 4AGE..AE101 |
17141-16280 |
US $310.13 |
||
|
17159
|
17159
90116-10037 Bolt, Stud(For Manifold To Cylinder Head)[08.1991 - 05.1995] 4AGE..AE101 |
90116-10037 |
US $4.16 |
||
|
17167
|
17167
17167-16160 Insulator, Exhaust Manifold Heat, No.1[08.1991 - 05.1995] 4AGE..AE101 |
17167-16160 |
US $70.62 |
||
| replacement | |||||
|
17167
|
17167
17167-16190 Insulator, Exhaust Manifold Heat, No.1[08.1991 - 05.1995] 4AGE..AE101 |
17167-16190 |
US $70.91 |
||
|
17173
|
17173
17173-16020 Gasket, Exhaust Manifold To Head[08.1991 - 05.1995] 4AGE..AE101 |
17173-16020 |
US $22.42 |
||
|
17177
|
17177
17177-16020
Gasket, Intake Manifold To Head, No.1
[08.1991 - 05.1995] 4AGE..AE101 |
17177-16020 |
— | ||
|
17179A
|
17179A
17179-16010
Gasket, Intake Manifold, No.2
[08.1991 - 05.1995] 4AGE..AE101 |
17179-16010 |
— | ||
|
9011006012
|
9011006012
90110-06012
New Genuine Part
|
90110-06012 |
— | ||
| replacement | |||||
|
9011006012
|
9011006012
90110-06022 New Genuine Part |
90110-06022 |
US $1.60 |
||
|
9011610133
|
9011610133
90116-10133 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10133 |
US $3.35 |
||
|
9011610146
|
9011610146
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10146 |
from US $1.91 |
||
|
9011906652
|
9011906652
90119-06652 New Genuine Part |
90119-06652 |
US $0.51 |
||
|
9011910345
|
9011910345
90119-10345 BOLT |
90119-10345 |
US $2.56 |
||
|
9011910710
|
9011910710
90119-10710 New Genuine Part |
90119-10710 |
US $2.62 |
||
| replacement | |||||
|
9011910710
|
9011910710
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9151161016
|
9151161016
91511-61016 New Genuine Part |
91511-61016 |
US $1.89 |
||
| replacement | |||||
|
9151161016
|
9151161016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.08 |
||
