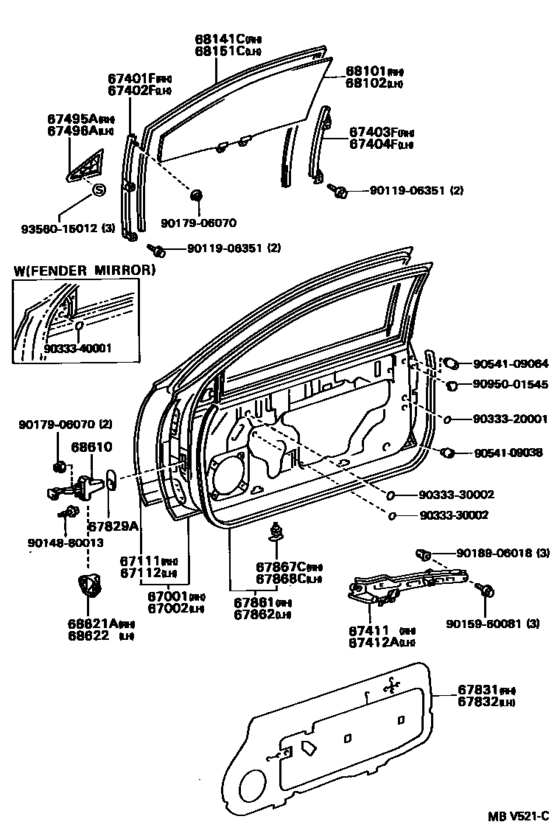

Front Door Panel & Glass ([08.1991 - 05.1995] (9108-9505)CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-1A500
Panel Sub-Assy, Front Door, Rh
[08.1991 - 05.1995] AE101..CP |
67001-1A500 |
— | ||
|
67002
|
67002
67002-1A480
Panel Sub-Assy, Front Door, Lh
[08.1991 - 05.1995] AE101..CP |
67002-1A480 |
— | ||
|
67111
|
67111
67111-12590 Panel, Front Door, Outer Rh[08.1991 - 05.1995] AE101..CP |
67111-12590 |
US $394.58 |
||
|
67112
|
67112
67112-12630 Panel, Front Door, Outer Lh[08.1991 - 05.1995] AE101..CP |
67112-12630 |
US $394.58 |
||
|
67401F
|
67401F
67401-12310 Frame Sub-Assy, Front Door, Front Lower Rh[08.1991 - 05.1995] AE101..CP |
67401-12310 |
US $38.44 |
||
|
67402F
|
67402F
67402-12330 Frame Sub-Assy, Front Door, Front Lower Lh[08.1991 - 05.1995] AE101..CP |
67402-12330 |
US $38.44 |
||
|
67403F
|
67403F
67403-12180 Frame Sub-Assy, Front Door, Rear Lower Rh[08.1991 - 05.1995] AE101..CP |
67403-12180 |
US $34.07 |
||
|
67404F
|
67404F
67404-12180 Frame Sub-Assy, Front Door, Rear Lower Lh[08.1991 - 05.1995] AE101..CP |
67404-12180 |
US $34.07 |
||
|
67411
|
67411
67411-12130 Frame, Front Door Window, Front Upper Rh[08.1991 - 05.1995] AE101..CP |
67411-12130 |
US $31.74 |
||
|
67412A
|
67412A
67412-12140 Frame, Front Door Window, Front Upper Lh[08.1991 - 05.1995] AE101..CP |
67412-12140 |
US $31.74 |
||
|
67495A
|
67495A
67495-12180 Cover, Front Door Front Lower Frame, Upper Rh[08.1991 - 05.1995] AE101..CP |
67495-12180 |
US $34.94 |
||
|
67496A
|
67496A
67496-12180 Cover, Front Door Front Lower Frame, Upper Lh[08.1991 - 05.1995] AE101..CP |
67496-12180 |
US $34.94 |
||
|
67829A
|
67829A
67829-12010 Seal, Front Door Wire Hole[08.1991 - 05.1995] AE101..CP |
67829-12010 |
US $5.82 |
||
|
67831
|
67831
67831-12500 Cover, Front Door Service Hole, Rh[08.1991 - 05.1995] AE101..CP |
67831-12500 |
US $16.16 |
||
|
67832
|
67832
67832-12250 Cover, Front Door Service Hole, Lh[08.1991 - 05.1995] AE101..CP |
67832-12250 |
US $16.16 |
||
|
67861
|
67861
67861-12790
Weatherstrip, Front Door, Rh
[08.1991 - 05.1995] AE101..CP |
67861-12790 |
— | ||
|
67862
|
67862
67862-12750
Weatherstrip, Front Door, Lh
[08.1991 - 05.1995] AE101..CP |
67862-12750 |
— | ||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.1994 - 05.1995] AE101..CP |
67867-12150 |
from US $1.60 |
||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1991 - 03.1994] AE101..CP |
67868-12050 |
from US $3.32 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.1994 - 05.1995] AE101..CP |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.1991 - 03.1994] AE101..CP |
67868-12050 |
from US $3.32 |
||
|
68101
|
68101
68101-12880 Glass Sub-Assy, Front Door, Rh[08.1991 - 05.1993] AE101..CP *TEM,T=4.0,GRAY |
68101-12880 |
US $310.13 |
||
|
68101
|
68101
68101-1A090 Glass Sub-Assy, Front Door, Rh[05.1993 - 05.1995] AE101..CP *TT,T=4.0,BLUE |
68101-1A090 |
US $238.78 |
||
|
68102
|
68102
68102-12880 Glass Sub-Assy, Front Door, Lh[08.1991 - 05.1993] AE101..CP *TEM,T=4.0,GRAY |
68102-12880 |
US $310.13 |
||
|
68102
|
68102
68102-1A090 Glass Sub-Assy, Front Door, Lh[05.1993 - 05.1995] AE101..CP *TT,T=4.0,BLUE |
68102-1A090 |
US $238.78 |
||
|
68141C
|
68141C
68141-12410
Run, Front Door Glass, Rh
[08.1991 - 05.1995] AE101..CP |
68141-12410 |
— | ||
|
68151C
|
68151C
68151-12130
Run, Front Door Glass, Lh
[08.1991 - 05.1995] AE101..CP |
68151-12130 |
— | ||
|
68610
|
68610
68610-12100 Check Assy, Front Door[08.1991 - 05.1995] AE101..CP RH |
68610-12100 |
US $59.70 |
||
|
68610
|
68610
68620-12030 Check Assy, Front Door[08.1991 - 05.1995] AE101..CP LH |
68620-12030 |
US $59.70 |
||
|
68621A
|
68621A
68621-12030
Cover, Front Door Check, Rh
[08.1991 - 05.1995] AE101..CP |
68621-12030 |
— | ||
|
68622
|
68622
68622-12010
Cover, Front Door Check, Lh
[08.1991 - 05.1995] AE101..CP |
68622-12010 |
— | ||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9014880013
|
9014880013
90148-80013 New Genuine Part |
90148-80013 |
US $1.60 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9054109038
|
9054109038
90541-09038 Cushion, Front Door Panel |
90541-09038 |
US $3.20 |
||
|
9054109064
|
9054109064
90541-09064 Cushion, Front Door Panel |
90541-09064 |
US $3.20 |
||
|
9095001545
|
9095001545
90950-01545 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01545 |
US $2.62 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.12 |
||
