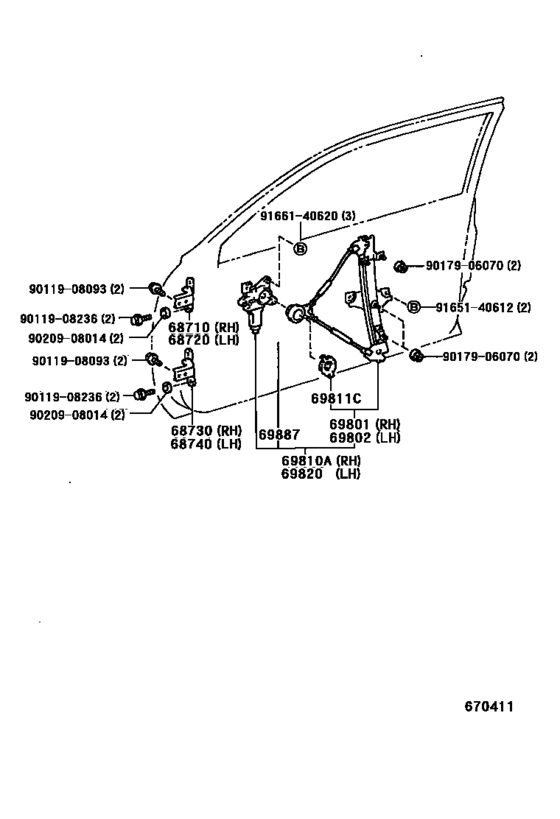

Front Door Window Regulator & Hinge ([08.1991 - 05.1995] (9108-9505)CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12130
Hinge Assy, Front Door, Upper Rh
[08.1991 - 09.1994] AE10#,CE100,EE10# |
68710-12130 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[08.1991 - 09.1994] AE10#,CE100,EE10# |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12130
Hinge Assy, Front Door, Upper Lh
[08.1991 - 09.1994] AE10#,CE100,EE10# |
68720-12130 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[08.1991 - 09.1994] AE10#,CE100,EE10# |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12090
Hinge Assy, Front Door, Lower Rh
[08.1991 - 09.1994] AE10#,CE100,EE10# |
68730-12090 |
— | ||
| replacement | |||||
|
68730
|
68730
68730-12110 Hinge Assy, Front Door[08.1991 - 09.1994] AE10#,CE100,EE10# |
68730-12110 |
from US $47.66 |
||
|
68740
|
68740
68740-12090
Hinge Assy, Front Door, Lower Lh
[08.1991 - 09.1994] AE10#,CE100,EE10# |
68740-12090 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-12110 Hinge Assy, Front Door[08.1991 - 09.1994] AE10#,CE100,EE10# |
68740-12110 |
from US $46.76 |
||
|
69801
|
69801
69801-12130
Regulator Sub-Assy, Front Door Window, Rh
[08.1991 - 05.1995] AE101..CP |
69801-12130 |
— | ||
|
69802
|
69802
69802-12130
Regulator Sub-Assy, Front Door Window, Lh
[08.1991 - 05.1995] AE101..CP |
69802-12130 |
— | ||
|
69810A
|
69810A
69810-12410
Regulator Assy, Front Door Window, Rh
[08.1991 - 05.1995] AE101..CP |
69810-12410 |
— | ||
|
69811C
|
69811C
69813-32010 Plate, Front Door Power Window Regulator Base[08.1991 - 05.1995] AE101..CP |
69813-32010 |
US $5.97 |
||
|
69820
|
69820
69820-12410
Regulator Assy, Front Door Window, Lh
[08.1991 - 05.1995] AE101..CP |
69820-12410 |
— | ||
|
69887
|
69887
69888-33011 Cushion, Window Regulator Door Glass Bracket, No.1[05.1993 - 05.1995] AE101..CP |
69888-33011 |
US $3.35 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9011908236
|
9011908236
90119-08236 New Genuine Part |
90119-08236 |
US $3.35 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020908014
|
9020908014
90209-08014 WASHER |
90209-08014 |
US $1.92 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.28 |
||
