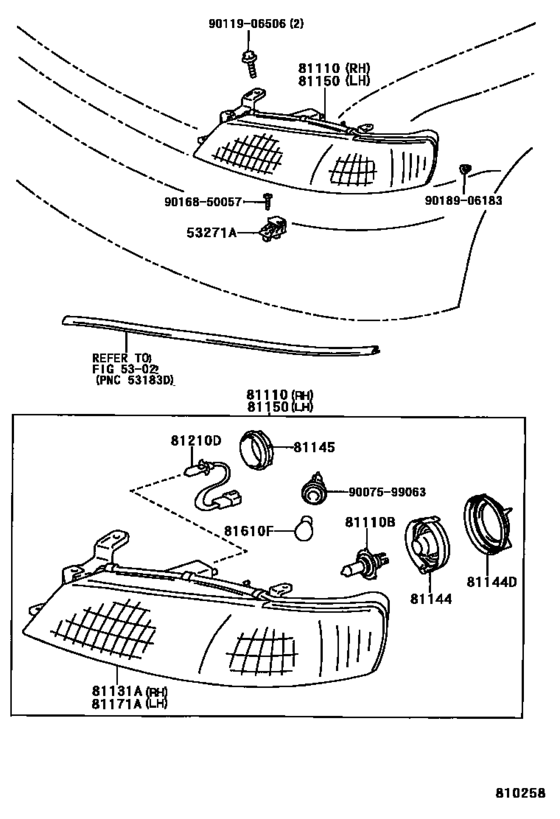

Headlamp ([08.1991 - ] (9108- )CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12040
Bracket, Headlamp Mounting
[08.1991 - 09.1993] AE10#,CE100,EE10# |
53271-12040 |
— | ||
| replacement | |||||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[08.1991 - 09.1993] AE10#,CE100,EE10# |
53271-12060 |
from US $7.78 |
||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[10.1993 - 09.1994] AE10#,CE100,EE10# |
53271-12060 |
from US $7.78 |
||
|
81110
|
81110
81120-1A570 Headlamp Assy, Rh[08.1991 - 07.1993] AE101..CP |
81120-1A570 |
US $649.38 |
||
| replacement | |||||
|
81110
|
81110
81120-1A571 Headlamp Assy, Rh[08.1991 - 07.1993] AE101..CP |
81120-1A571 |
US $647.92 |
||
|
81110
|
81110
81120-1A571 Headlamp Assy, Rh[07.1993 - 05.1995] AE101..CP |
81120-1A571 |
US $647.92 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[08.1991 - 01.1994] AE10#,CE100,EE10# 12V 60/55W,*HAL *WH |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.1991 - 01.1994] AE10#,CE100,EE10# 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[01.1994 - 09.1994] AE10#,CE100,EE10# 12V 60/55W,*HAL *WH |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [01.1994 - 09.1994] AE10#,CE100,EE10# 12V 60/55W,*HAL *WH |
90981-13058 |
from US $30.40 |
||
|
81131A
|
81131A
81130-1A570 Unit, Headlamp, Rh[08.1991 - 07.1993] AE101..CP |
81130-1A570 |
US $570.75 |
||
| replacement | |||||
|
81131A
|
81131A
81130-1A571 Unit, Headlamp, Rh[08.1991 - 07.1993] AE101..CP |
81130-1A571 |
US $570.75 |
||
|
81131A
|
81131A
81130-1A571 Unit, Headlamp, Rh[07.1993 - 05.1995] AE101..CP |
81130-1A571 |
US $570.75 |
||
|
81144
|
81144
90075-99058 Cover, Headlamp, No.1[08.1991 - 09.1994] AE10#,CE100,EE10# |
90075-99058 |
US $7.21 |
||
|
81144D
|
81144D
90075-99057 Cap, Headlamp Locking[08.1991 - 09.1994] AE10#,CE100,EE10# |
90075-99057 |
US $5.36 |
||
|
81145
|
81145
90075-99065 Cover, Headlamp, No.1[08.1991 - 05.1995] AE101..CP |
90075-99065 |
US $10.48 |
||
|
81150
|
81150
81160-1A570 Headlamp Assy, Lh[08.1991 - 07.1993] AE101..CP |
81160-1A570 |
US $649.38 |
||
| replacement | |||||
|
81150
|
81150
81160-1A571 Headlamp Assy, Lh[08.1991 - 07.1993] AE101..CP |
81160-1A571 |
US $647.92 |
||
|
81150
|
81150
81160-1A571 Headlamp Assy, Lh[07.1993 - 05.1995] AE101..CP |
81160-1A571 |
US $647.92 |
||
|
81171A
|
81171A
81170-1A570 Unit, Headlamp, Lh[08.1991 - 07.1993] AE101..CP |
81170-1A570 |
US $570.75 |
||
| replacement | |||||
|
81171A
|
81171A
81170-1A571 Unit, Headlamp, Lh[08.1991 - 07.1993] AE101..CP |
81170-1A571 |
US $570.75 |
||
|
81171A
|
81171A
81170-1A571 Unit, Headlamp, Lh[07.1993 - 05.1995] AE101..CP |
81170-1A571 |
US $570.75 |
||
|
81210D
|
81210D
90981-13040 Bulb, Fog Lamp[08.1991 - 05.1995] AE101..CP 12V 35W,HALOGEN |
90981-13040 |
US $8.56 |
||
|
81610F
|
81610F
90981-13036 Bulb(For Headlamp, No.1)[08.1991 - 05.1995] AE101..CP 12V 35/5W |
90981-13036 |
US $8.64 |
||
|
9007599063
|
9007599063
90075-99063 New Genuine Part |
90075-99063 |
US $13.10 |
||
|
9011906506
|
9011906506
90119-06506 New Genuine Part |
90119-06506 |
US $1.92 |
||
|
9016850057
|
9016850057
90168-50057 SCREW RADIATOR GRIL |
90168-50057 |
from US $0.92 |
||
|
9018906183
|
9018906183
90189-06183 New Genuine Part |
90189-06183 |
US $1.89 |
||
