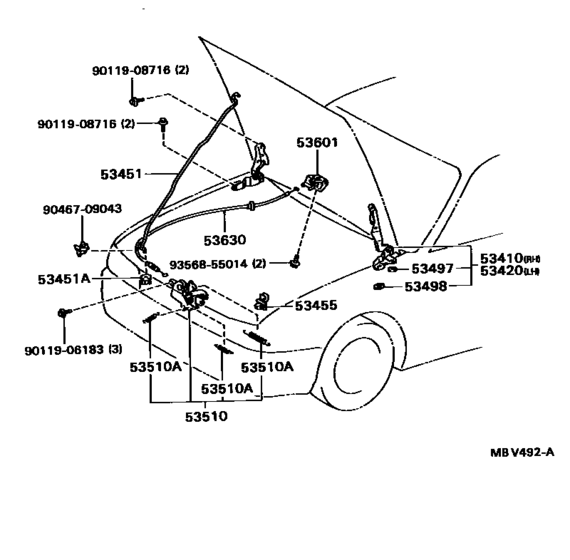

Hood Lock & Hinge ([08.1991 - 05.1995] (9108-9505)CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-12200 Hinge Assy, Hood, Rh[08.1991 - 02.1993] AE101..CP |
53410-12200 |
US $32.61 |
||
| replacement | |||||
|
53410
|
53410
53410-12280 Hinge Assy, Hood, Rh[08.1991 - 02.1993] AE101..CP |
53410-12280 |
US $32.47 |
||
|
53410
|
53410
53410-12280 Hinge Assy, Hood, Rh[02.1993 - 05.1995] AE101..CP |
53410-12280 |
US $32.47 |
||
|
53420
|
53420
53420-12190 Hinge Assy, Hood, Lh[08.1991 - 02.1993] AE101..CP |
53420-12190 |
US $32.61 |
||
| replacement | |||||
|
53420
|
53420
53420-12270 Hinge Assy, Hood, Lh[08.1991 - 02.1993] AE101..CP |
53420-12270 |
US $32.47 |
||
|
53420
|
53420
53420-12270 Hinge Assy, Hood, Lh[02.1993 - 05.1995] AE101..CP |
53420-12270 |
US $32.47 |
||
|
53451
|
53451
53451-12170 Rod, Hood Support[08.1991 - 02.1993] AE10#,CE100,EE10# |
53451-12170 |
US $26.94 |
||
| replacements | |||||
|
53451
|
53451
53451-12171 Rod, Hood Support[08.1991 - 02.1993] AE10#,CE100,EE10# |
53451-12171 |
US $31.30 |
||
|
53451
|
53451
53455-12090
Clamp, Hood Support Rod
[08.1991 - 02.1993] AE10#,CE100,EE10# |
53455-12090 |
— | ||
|
53451
|
53451
90480-15020 Grommet(For Hood Support Rod)[08.1991 - 02.1993] AE10#,CE100,EE10# |
90480-15020 |
from US $4.70 |
||
|
53451
|
53451
53451-12171 Rod, Hood Support[02.1993 - 09.1994] AE101,EE100..CP,WG;AE100,EE104,105,108 |
53451-12171 |
US $31.30 |
||
|
53451A
|
53451A
90480-15020 Grommet(For Hood Support Rod)[09.1994 - 09.1995] AE10#,CE100,EE10# |
90480-15020 |
from US $4.70 |
||
|
53451A
|
53451A
90480-15024 Grommet(For Hood Support Rod)[08.1991 - 10.1991] AE10#,EE10# |
90480-15024 |
US $3.04 |
||
|
53451A
|
53451A
90480-15027 Grommet(For Hood Support)[10.1991 - 09.1994] AE10#,CE100,EE10# |
90480-15027 |
from US $1.92 |
||
|
53455
|
53455
53455-12060 Clamp, Hood Support Rod[08.1991 - 09.1994] AE10#,CE100,EE10# |
53455-12060 |
from US $3.78 |
||
|
53455
|
53455
53455-12090
Clamp, Hood Support Rod
[09.1994 - 09.1995] AE10#,CE100,EE10# |
53455-12090 |
— | ||
|
53497
|
53497
53497-50010 Pad, Hood Hinge, No.1[08.1991 - 05.1995] AE101..CP |
53497-50010 |
US $1.75 |
||
|
53498
|
53498
53498-50010
Pad, Hood Hinge, No.2
[08.1991 - 05.1995] AE101..CP |
53498-50010 |
— | ||
|
53510
|
53510
53510-12480 Lock Assy, Hood[08.1991 - 05.1995] AE101..CP |
53510-12480 |
US $42.95 |
||
|
53510A
|
53510A
90506-09057 Spring, Tension(For Hood Lock)[08.1991 - 04.1997] AE100,101,CE100,EE10#..RHD WD=0.9,CW=23 |
90506-09057 |
US $1.22 |
||
|
53510A
|
53510A
90506-12067 Spring, Tension(For Hood Lock)[08.1991 - 09.1994] AE10#,CE100,EE10# WD=1.4,CW=7.25 |
90506-12067 |
US $1.22 |
||
|
53510A
|
53510A
90506-20065 Spring, Tension(For Hood Lock)[08.1991 - 04.1997] AE100,101,CE100,EE10#..RHD WD=2.0,CW=16.0 |
90506-20065 |
US $2.48 |
||
|
53601
|
53601
53601-10020-01 Lever Sub-Assy, Hood Lock Control[08.1991 - 05.1993] AE101..GTAPX NEW BLACK,TRIM20,2#,21,22; AE101..SJ NEW BLACK,TRIM20,21,22 |
53601-10020-01 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[08.1991 - 05.1993] AE101..GTAPX NEW BLACK,TRIM20,2#,21,22; AE101..SJ NEW BLACK,TRIM20,21,22 |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[09.1994 - 05.1995] AE101..CP BLACK,TRIM2#; EE104,105 BLACK,TRIM1#; AE101,EE100..WG BLACK,TRIM1#,8#; AE101,102,CE100,EE100,101..SED..(GL,GLI,STD,XL,XLI) BLACK,TRIM1#,8#,9# |
53601-10020-C0 |
US $35.47 |
||
|
53630
|
53630
53630-12420 Cable Assy, Hood Lock Control[08.1991 - 05.1995] AE101..CP |
53630-12420 |
US $24.17 |
||
|
9011906183
|
9011906183
90119-06183 New Genuine Part |
90119-06183 |
US $1.76 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.88 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.62 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
