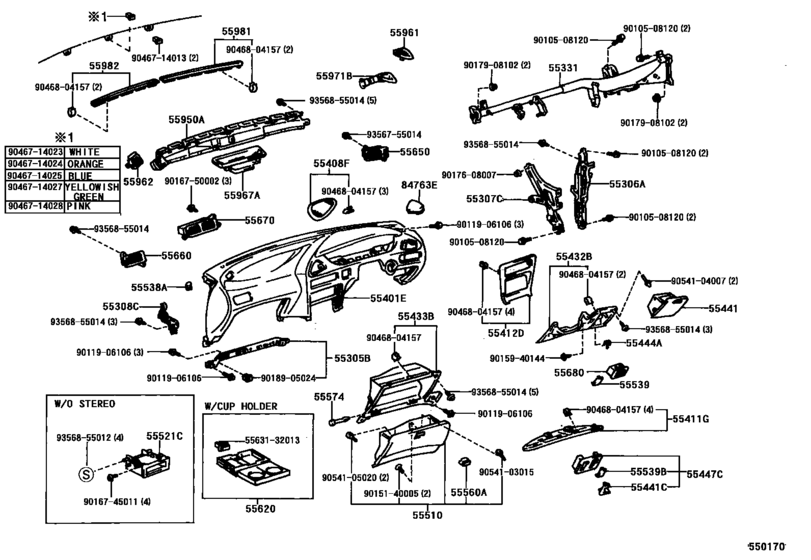

Instrument Panel & Glove Compartment ([08.1991 - 05.1995] (9108-9505)CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55305B
|
55305B
55305-12120 Reinforcement Sub-Assy, Instrument Panel, No.1[08.1991 - 05.1995] AE101..CP |
55305-12120 |
US $36.11 |
||
|
55306A
|
55306A
55306-12160 Brace Sub-Assy, Instrument Panel, No.1[08.1991 - 05.1993] AE101..CP |
55306-12160 |
US $52.71 |
||
|
55307C
|
55307C
55307-12210 Brace Sub-Assy, Instrument Panel, No.2[08.1991 - 05.1993] AE101..CP |
55307-12210 |
US $34.65 |
||
|
55308C
|
55308C
55308-12190 Bracket Sub-Assy, Instrument Panel, Center[08.1991 - 05.1995] AE101..CP |
55308-12190 |
US $11.65 |
||
|
55331
|
55331
55330-12250 Reinforcement, Instrument Panel[08.1991 - 01.1994] AE101..CP |
55330-12250 |
US $221.31 |
||
|
55401E
|
55401E
55401-12310-22
Pad Sub-Assy, Instrument Panel Safety
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55401-12310-22 |
— | ||
|
55401E
|
55401E
55401-12320-22
Pad Sub-Assy, Instrument Panel Safety
[08.1991 - 05.1993] AE101..GTAPX W(LIVE SOUND),BLACK,TRIM20,2#,21,22; AE101..SJ W(LIVE SOUND),BLACK,TRIM20,21,22 |
55401-12320-22 |
— | ||
|
55408F
|
55408F
55408-12010-22 Panel Sub-Assy, Instrument Panel Speaker, No.1[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55408-12010-22 |
US $30.87 |
||
|
55411G
|
55411G
55411-12880 Panel, Instrument Cluster Finish, No.1[08.1991 - 05.1993] AE101..CP |
55411-12880 |
US $46.01 |
||
|
55412D
|
55412D
55412-12470 Panel, Instrument Cluster Finish, Center[08.1991 - 05.1993] AE101..CP |
55412-12470 |
US $34.80 |
||
|
55432B
|
55432B
55432-12340-C0 Panel, Instrument Panel Finish, Lower[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55432-12340-C0 |
US $110.66 |
||
| replacement | |||||
|
55432B
|
55432B
55432-12341-C0 Panel, Instrument Panel Finish, Lower[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55432-12341-C0 |
US $110.66 |
||
|
55432B
|
55432B
55432-12341-C0 Panel, Instrument Panel Finish, Lower[05.1993 - 05.1995] AE101..CP BLACK,TRIM2# |
55432-12341-C0 |
US $110.66 |
||
|
55433B
|
55433B
55433-12100-C0 Panel, Instrument Panel Finish, Lower No.2[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55433-12100-C0 |
US $131.04 |
||
| replacement | |||||
|
55433B
|
55433B
55433-12101-C0 Panel, Instrument Panel Finish, Lower No.2[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55433-12101-C0 |
US $132.50 |
||
|
55441
|
55441
55440-12060-C0 Box, Instrument Panel[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55440-12060-C0 |
US $47.32 |
||
|
55441C
|
55441C
55441-20140-11
Box, Instrument Panel Coin
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55441-20140-11 |
— | ||
| replacement | |||||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55441-20140-C0 |
US $15.04 |
||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[08.1993 - 05.1995] AE101..CP BLACK,TRIM2# |
55441-20140-C0 |
US $15.04 |
||
|
55444A
|
55444A
55444-12030 Spring, Instrument Panel Box[08.1991 - 05.1993] AE101..CP |
55444-12030 |
US $1.75 |
||
|
55447C
|
55447C
55447-12070-22
Base, Switch Hole, No.2
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55447-12070-22 |
— | ||
| replacement | |||||
|
55447C
|
55447C
55447-12071-22
Base, Switch Hole, No.2
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55447-12071-22 |
— | ||
|
55510
|
55510
55550-12320-C0 Door Assy, Glove Compartment[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55550-12320-C0 |
US $224.22 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[08.1991 - 05.1993] AE101..CP |
55521-16030 |
from US $24.02 |
||
|
55538A
|
55538A
55538-20060-22
Cover, Cooler Switch Hole
[05.1992 - 05.1993] AE101..SJ BLACK,TRIM20,21,22 |
55538-20060-22 |
— | ||
|
55539
|
55539
55539-12130-C0
Cover, Spare Switch Hole
[03.1992 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55539-12130-C0 |
— | ||
|
55539
|
55539
55539-20080-01
Cover, Spare Switch Hole
[08.1991 - 03.1992] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55539-20080-01 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-12130-C0
Cover, Spare Switch Hole
[08.1991 - 03.1992] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55539-12130-C0 |
— | ||
|
55539B
|
55539B
55539-32010-11
Cover, Cooler Switch Hole
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55539-32010-11 |
— | ||
| replacement | |||||
|
55539B
|
55539B
55539-32010-C0 Cover, Cooler Switch Hole[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55539-32010-C0 |
from US $3.35 |
||
|
55539B
|
55539B
55539-32010-C0 Cover, Cooler Switch Hole[08.1993 - 05.1995] AE101..CP BLACK,TRIM2# |
55539-32010-C0 |
from US $3.35 |
||
|
55560A
|
55560A
55560-12080-01 Lock Assy, Glove Compartment Door[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55560-12080-01 |
US $18.93 |
||
| replacement | |||||
|
55560A
|
55560A
55560-12080-B0 Lock Assy, Glove Compartment Door[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55560-12080-B0 |
US $21.43 |
||
|
55574
|
55574
55574-10010 Shaft, Glove Compartment Door Hinge[08.1991 - 09.1994] AE10#,CE100,EE10# |
55574-10010 |
US $2.56 |
||
|
55620
|
55620
55620-12030
Holder Assy, Instrument Panel Cup
[08.1991 - 05.1995] AE101..CP |
55620-12030 |
— | ||
|
55650
|
55650
55650-12200-22
Register Assy, Instrument Panel, No.1
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55650-12200-22 |
— | ||
|
55660
|
55660
55660-12220-22 Register Assy, Instrument Panel, No.2[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55660-12220-22 |
US $69.31 |
||
|
55670
|
55670
55670-12160-22
Register Assy, Instrument Panel, No.3
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55670-12160-22 |
— | ||
|
55680
|
55680
55680-17050-01 Register Assy, Instrument Panel, Lower No.1[08.1991 - 04.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55680-17050-01 |
US $17.76 |
||
| replacement | |||||
|
55680
|
55680
55680-17050-22 Register Assy, Instrument Panel, Lower No.1[08.1991 - 04.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55680-17050-22 |
US $18.87 |
||
|
55680
|
55680
55680-89101-C0
Register Assy, Instrument Panel, Lower No.1
[04.1993 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55680-89101-C0 |
— | ||
| replacement | |||||
|
55680
|
55680
55680-17050-22 Register Assy, Instrument Panel, Lower No.1[04.1993 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55680-17050-22 |
US $18.87 |
||
|
55950A
|
55950A
55950-12150 Nozzle Assy, Defroster[08.1991 - 05.1993] AE101..CP |
55950-12150 |
US $66.54 |
||
|
55961
|
55961
55961-12190-22 Nozzle, Side Defroster, No.1[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55961-12190-22 |
US $13.54 |
||
|
55962
|
55962
55962-12170-22 Nozzle, Side Defroster, No.2[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55962-12170-22 |
US $15.58 |
||
|
55967A
|
55967A
55967-12040 Nozzle, Defroster, Lower[08.1991 - 05.1993] AE101..CP |
55967-12040 |
US $37.13 |
||
|
55971B
|
55971B
55971-12120 Duct, Side Defroster Nozzle, No.1[08.1991 - 05.1993] AE101..CP |
55971-12120 |
US $13.69 |
||
|
55981
|
55981
55981-12060-22
Garnish, Defroster Nozzle, No.1
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55981-12060-22 |
— | ||
|
55982
|
55982
55982-12060-22
Garnish, Defroster Nozzle, No.2
[08.1991 - 05.1993] AE101..GTAPX BLACK,TRIM20,2#,21,22; AE101..SJ BLACK,TRIM20,21,22 |
55982-12060-22 |
— | ||
|
84763E
|
84763E
84763-12100 Hole Cover, Outer Mirror Switch[08.1991 - 05.1995] AE101..CP |
84763-12100 |
US $20.09 |
||
|
5563132013
|
5563132013
55631-32013 Arm,under Tray Door Check |
55631-32013 |
US $3.36 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9011906106
|
9011906106
90119-06106 New Genuine Part |
90119-06106 |
from US $0.64 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
|
9015940144
|
9015940144
90159-40144 New Genuine Part |
90159-40144 |
US $1.60 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017608007
|
9017608007
90176-08007 Nut, Cap(For Cylinder Head Cover) |
90176-08007 |
from US $1.56 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9018905024
|
9018905024
90189-05024 NUT |
90189-05024 |
US $2.08 |
||
|
9046714013
|
9046714013
90467-14013 New Genuine Part |
90467-14013 |
US $2.56 |
||
|
9046714023
|
9046714023
90467-14023 Clip, Instrument Panel, No.1 |
90467-14023 |
US $3.04 |
||
|
9046714024
|
9046714024
90467-14024 Clip, Instrument Panel, No.1 |
90467-14024 |
US $2.48 |
||
|
9046714025
|
9046714025
90467-14025 Clip, Instrument Panel, No.1 |
90467-14025 |
US $2.48 |
||
|
9046714027
|
9046714027
90467-14027 Clip, Instrument Panel, No.1 |
90467-14027 |
US $2.48 |
||
|
9046714028
|
9046714028
90467-14028 Clip, Instrument Panel, No.1 |
90467-14028 |
US $2.48 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
US $1.28 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.62 |
||
|
9054104007
|
9054104007
90541-04007 Cushion(For Glove Compartment) |
90541-04007 |
US $3.93 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $0.87 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
