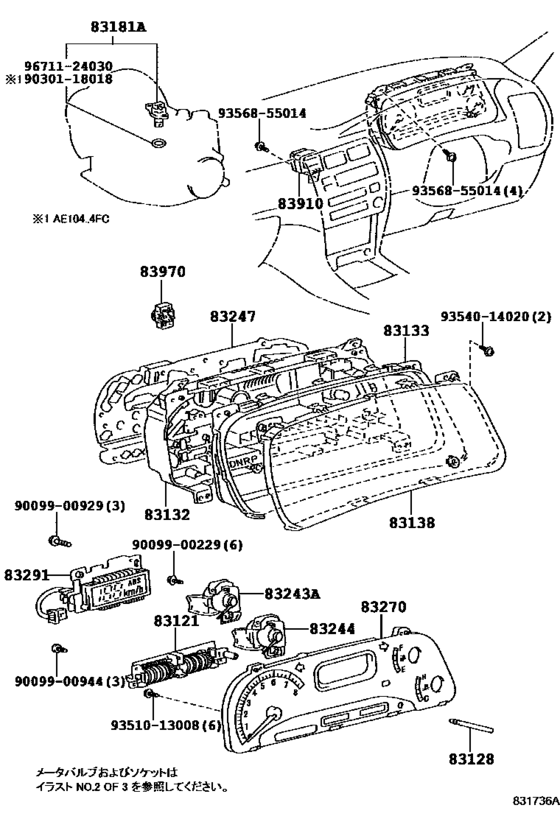

Meter ([06.1991 - 05.1993] ﾃﾞｼﾞﾀﾙ (9106-9305)SEG) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SEG
- body
- 4DS
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83121
|
83121
83121-12070
Counter, Total
[06.1991 - 05.1993] AE101..SEG |
83121-12070 |
— | ||
|
83128
|
83128
83128-12770
Knob, Trip Counter
[06.1991 - 05.1993] AE101..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83128-12770 |
— | ||
|
83132
|
83132
83132-1A450
Case, Combination Meter
[06.1991 - 05.1993] AE101..5F..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83132-1A450 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-1A470
Case, Combination Meter
[06.1991 - 05.1993] AE101..5F..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83132-1A470 |
— | ||
|
83132
|
83132
83132-1A530
Case, Combination Meter
[06.1991 - 08.2000] AE100,101,104,CE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
83132-1A530 |
— | ||
|
83133
|
83133
83133-13270
Plate, Combination Meter, No.1
[06.1991 - 05.1993] AE101..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83133-13270 |
— | ||
|
83133
|
83133
83133-1H030
Plate, Combination Meter, No.1
[06.1991 - 05.1995] AE100..5F..SEL;AE101,CE104..4DS..5F..(GT,SEG,SEL,XE) |
83133-1H030 |
— | ||
|
83138
|
83138
83138-1A070
Glass, Speedometer
[06.1991 - 05.1993] AE101..SEG *DS |
83138-1A070 |
— | ||
|
83138
|
83138
83138-1A110
Glass, Speedometer
[06.1991 - 08.2000] AE100,101,104,CE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
83138-1A110 |
— | ||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[06.1991 -] AE100,101,EE10#..4F,4FC,5F,6F |
83181-12020 |
from US $169.48 |
||
|
83243A
|
83243A
83243-1E710 Gauge Sub-Assy, Fuel Receiver[06.1991 - 01.1992] AE101..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83243-1E710 |
US $75.71 |
||
|
83243A
|
83243A
83243-1H010 Gauge Sub-Assy, Fuel Receiver[06.1991 - 02.1992] AE101 |
83243-1H010 |
US $75.71 |
||
| replacement | |||||
|
83243A
|
83243A
83243-1H011 Gauge Sub-Assy, Fuel Receiver[06.1991 - 02.1992] AE101 |
83243-1H011 |
US $75.71 |
||
|
83243A
|
83243A
83243-1H011 Gauge Sub-Assy, Fuel Receiver[02.1992 - 05.1993] AE101..4DS |
83243-1H011 |
US $75.71 |
||
|
83243A
|
83243A
83243-1H012
Gauge Sub-Assy, Fuel Receiver
[05.1993 - 05.1995] AE101..4DS |
83243-1H012 |
— | ||
|
83243A
|
83243A
83243-1H530 Gauge Sub-Assy, Fuel Receiver[01.1992 - 05.1992] AE101..SEG;AE100..5F..SEL ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83243-1H530 |
US $75.71 |
||
|
83244
|
83244
83244-1A810 Gauge Sub-Assy, Water Temperature Receiver[06.1991 - 05.1993] AE101..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83244-1A810 |
US $70.47 |
||
|
83244
|
83244
83244-1A830 Gauge Sub-Assy, Water Temperature Receiver[06.1991 - 04.1998] AE100,101,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE) |
83244-1A830 |
US $70.76 |
||
|
83247
|
83247
83247-1H050
Plate, Meter Circuit
[06.1991 - 05.1993] AE101..5F..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83247-1H050 |
— | ||
|
83247
|
83247
83247-1H350
Plate, Meter Circuit
[06.1991 - 05.1995] AE101..4DS |
83247-1H350 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-1H330
Plate, Meter Circuit
[06.1991 - 05.1995] AE101..4DS |
83247-1H330 |
— | ||
|
83270
|
83270
83242-1E550 Tachometer Assy, Engine[06.1991 - 05.1993] AE101..5F..SEG ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ |
83242-1E550 |
US $483.39 |
||
|
83270
|
83270
83242-1E710
Tachometer Assy, Engine
[06.1991 - 08.1995] AE10#..G,LT,SEG,SEL,XE |
83242-1E710 |
— | ||
|
83291
|
83291
83291-12100 Computer, Combination Meter[06.1991 - 05.1993] AE101..SEG |
83291-12100 |
US $1,275.46 |
||
|
83910
|
83910
83910-12460
Clock Assy
[06.1991 -] AE10#,CE10#,EE10# JECO |
83910-12460 |
— | ||
|
83910
|
83910
83910-12480 Clock Assy[06.1991 -] AE10#,CE10#,EE10# RHYTHM |
83910-12480 |
US $426.61 |
||
|
83910
|
83910
83910-12490 Clock Assy[06.1991 - 05.1993] AE101..SEG ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
83910-12490 |
US $448.45 |
||
|
9009900229
|
9009900229
90099-00229
New Genuine Part
|
90099-00229 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900944
|
9009900944
90099-00944
New Genuine Part
|
90099-00944 |
— | ||
|
9030118018
|
9030118018
90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover) |
90301-18018 |
from US $3.20 |
||
|
9351013008
|
9351013008
93510-13008 New Genuine Part |
93510-13008 |
US $2.18 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.32 |
||
