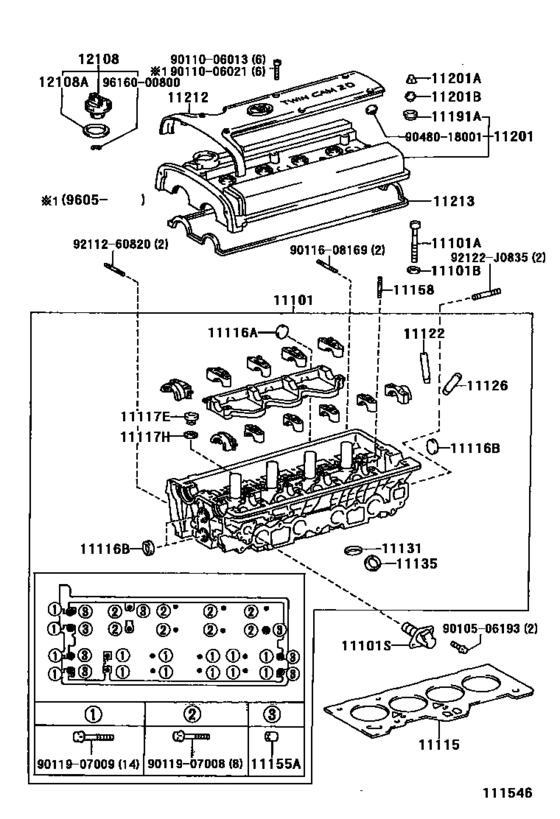

Cylinder Head ([06.1991 - ] (9106- )4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-19365 Head Sub-Assy, Cylinder[06.1991 - 05.1995] 4AGE..AE101 |
11101-19365 |
US $1,834.56 |
||
|
11101A
|
11101A
90910-02106 Bolt(For Cylinder Head Set)[06.1991 -] 4AGE..AE101 |
90910-02106 |
US $14.88 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[06.1991 -] 4A#,5AFE..AE10# |
90201-10344 |
US $1.76 |
||
|
11101S
|
11101S
15330-16010
Valve Assy, Camshaft Timing Oil Switching
[06.1991 - 05.1995] 4AGE..AE101 |
15330-16010 |
— | ||
| replacement | |||||
|
11101S
|
11101S
15330-16020 Valve Assy, Camshaft Timing Oil Switching[06.1991 - 05.1995] 4AGE..AE101 |
15330-16020 |
from US $85.23 |
||
|
11115
|
11115
11115-16110
Gasket, Cylinder Head
[06.1991 - 05.1995] 4AGE..AE101 厚さ＝１．２５ |
11115-16110 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-16111 Gasket, Cylinder Head[06.1991 - 05.1995] 4AGE..AE101 厚さ＝１．２５ |
11115-16111 |
from US $56.41 |
||
|
11116A
|
11116A
96411-42500 Plug, Tight, No.1[06.1991 -] 4AGE..AE101 |
96411-42500 |
from US $2.95 |
||
|
11116B
|
11116B
96411-42800 Plug, Tight, No.1[06.1991 -] 4AGE..AE101 |
96411-42800 |
from US $3.68 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[06.1991 -] 4AGE..AE101 |
90341-20002 |
from US $2.88 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[06.1991 -] 4AGE..AE101 |
90430-20004 |
from US $1.01 |
||
|
11122
|
11122
11122-16030 Bush, Intake Valve Guide[06.1991 - 05.1995] 4AGE..AE101 ＳＴＤ |
11122-16030 |
US $10.77 |
||
| replacement | |||||
|
11122
|
11122
11122-16040 Bush, Intake Valve Guide[06.1991 - 05.1995] 4AGE..AE101 ＳＴＤ |
11122-16040 |
US $12.48 |
||
|
11122
|
11122
11123-16030 Bush, Intake Valve Guide[06.1991 - 05.1995] 4AGE..AE101 Ｏ／Ｓ ０．０５ |
11123-16030 |
US $10.77 |
||
| replacement | |||||
|
11122
|
11122
11123-16040 Bush, Intake Valve Guide[06.1991 - 05.1995] 4AGE..AE101 Ｏ／Ｓ ０．０５ |
11123-16040 |
US $10.48 |
||
|
11126
|
11126
11126-16010
Bush, Exhaust Valve Guide
[06.1991 - 05.1995] 4AGE..AE101 ＳＴＤ |
11126-16010 |
— | ||
|
11126
|
11126
11127-16010
Bush, Exhaust Valve Guide
[06.1991 - 05.1995] 4AGE..AE101 Ｏ／Ｓ ０．０５ |
11127-16010 |
— | ||
|
11131
|
11131
11132-16030 Seat, Intake Valve[06.1991 -] 4AGE..AE101 Ｏ／Ｓ ０．０３ |
11132-16030 |
US $28.25 |
||
|
11131
|
11131
11147-16030 Seat, Intake Valve[06.1991 -] 4AGE..AE101 ＳＴＤ |
11147-16030 |
US $28.25 |
||
|
11135
|
11135
11135-16030 Seat, Exhaust Valve[06.1991 -] 4AGE..AE101 ＳＴＤ |
11135-16030 |
US $14.56 |
||
|
11135
|
11135
11136-16030 Seat, Exhaust Valve[06.1991 -] 4AGE..AE101 Ｏ／Ｓ ０．０３ |
11136-16030 |
US $9.03 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[06.1991 - 05.1997] 4AGE..AE101 |
90253-10004 |
US $1.92 |
||
|
11158
|
11158
90116-08363 Bolt, Stud(For Head To Cylinder Head Cover)[06.1991 -] 4AGE..AE101 長さ＝８６ |
90116-08363 |
US $4.22 |
||
|
11191A
|
11191A
11193-16010
Gasket(For Spark Plug Tube)
[06.1991 -] 4AGE..AE101 |
11193-16010 |
— | ||
| replacement | |||||
|
11191A
|
11191A
11193-70010 Gasket(For Spark Plug Tube)[06.1991 -] 4AGE..AE101 |
11193-70010 |
from US $2.38 |
||
|
11201
|
11201
11201-16020 Cover Sub-Assy, Cylinder Head[06.1991 - 05.1995] 4AGE..AE101 |
11201-16020 |
US $248.98 |
||
|
11201A
|
11201A
90176-08047 Nut, Cap(For Cylinder Head Cover)[06.1991 -] 4AGE..AE101 |
90176-08047 |
US $3.20 |
||
|
11201B
|
11201B
90210-09016 Washer, Seal(For Cylinder Head Cover)[06.1991 -] 4AGE..AE101 |
90210-09016 |
from US $2.30 |
||
|
11212
|
11212
11212-16060
Cover, Cylinder Head, No.2
[06.1991 - 05.1995] 4AGE..AE101 |
11212-16060 |
— | ||
|
11213
|
11213
11213-16020
Gasket, Cylinder Head Cover
[06.1991 - 05.1995] 4AGE..AE101 |
11213-16020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-16021 Gasket, Cylinder Head Cover[06.1991 - 05.1995] 4AGE..AE101 |
11213-16021 |
US $22.50 |
||
|
12108
|
12108
12180-46010 Cap Sub-Assy, Oil Filler[06.1991 -] 4AGE..AE101 |
12180-46010 |
from US $15.96 |
||
|
12108A
|
12108A
12195-46010 Gasket(For Oil Filler Cap)[06.1991 - 07.1991] 4AGE..AE101 |
12195-46010 |
US $8.01 |
||
| replacement | |||||
|
12108A
|
12108A
12195-46011 Gasket(For Oil Filler Cap)[06.1991 - 07.1991] 4AGE..AE101 |
12195-46011 |
from US $4.66 |
||
|
12108A
|
12108A
12195-46011 Gasket(For Oil Filler Cap)[07.1991 -] 4AGE..AE101 |
12195-46011 |
from US $4.66 |
||
|
92122J0835
|
92122J0835
92122-J0835 New Genuine Part |
92122-J0835 |
US $1.89 |
||
|
9010506193
|
9010506193
90105-06193 New Genuine Part |
90105-06193 |
US $1.60 |
||
| replacement | |||||
|
9010506193
|
9010506193
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9011006013
|
9011006013
90110-06013
New Genuine Part
|
90110-06013 |
— | ||
| replacement | |||||
|
9011006013
|
9011006013
90110-06021 New Genuine Part |
90110-06021 |
US $1.76 |
||
|
9011006021
|
9011006021
90110-06021 New Genuine Part |
90110-06021 |
US $1.76 |
||
|
9011608169
|
9011608169
90116-08169 Bolt,stud(For Timing Gear Case) |
90116-08169 |
US $3.68 |
||
|
9011907008
|
9011907008
90119-07008 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
90119-07008 |
US $1.44 |
||
|
9011907009
|
9011907009
90119-07009 Bolt(For Camshaft Housing Set) |
90119-07009 |
from US $0.86 |
||
|
9048018001
|
9048018001
90480-18001 Grommet(For Ventilation System) |
90480-18001 |
from US $3.98 |
||
|
9211260820
|
9211260820
92112-60820 Bolt, Stud(For Manifold To Carburetor) |
92112-60820 |
US $2.08 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
