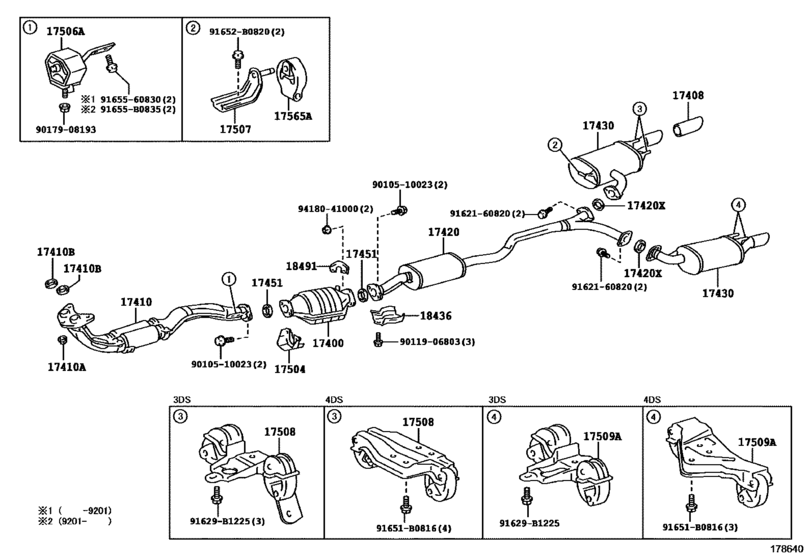

Exhaust Pipe ([06.1991 - 05.1995] (9106-9505)4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16550 Converter Assy, W/catalyst[06.1991 - 05.1993] 4AGE..AE101 |
18450-16550 |
US $1,192.46 |
||
|
17400
|
17400
18450-16640 Converter Assy, W/catalyst[05.1993 - 05.1995] 4AGE..AE101 |
18450-16640 |
US $1,211.39 |
||
|
17408
|
17408
17408-16010
Baffle Sub Assy, Exhaust Tail Pipe
[06.1991 - 05.1995] 4AGE..AE101..4DS |
17408-16010 |
— | ||
|
17410
|
17410
17410-16810
Pipe Assy, Exhaust, Front
[06.1991 - 05.1993] 4AGE..AE101 |
17410-16810 |
— | ||
|
17410
|
17410
17410-1A120 Pipe Assy, Exhaust, Front[05.1993 - 05.1995] 4AGE..AE101 |
17410-1A120 |
US $380.02 |
||
| replacement | |||||
|
17410
|
17410
17410-1A230
Pipe Assy, Exhaust, Front
[05.1993 - 05.1995] 4AGE..AE101 |
17410-1A230 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[06.1991 -] 4A#..AE101,104,109 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[06.1991 -] 4A#..AE101,104,109 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[06.1991 - 08.2000] 4AGE..AE101 |
90917-06061 |
from US $5.17 |
||
|
17420
|
17420
17420-16540 Pipe Assy, Exhaust, Center[06.1991 - 05.1995] 4AGE..AE101 |
17420-16540 |
US $493.58 |
||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[06.1991 - 05.1995] 4AGE..AE101 左側 |
90917-06039 |
from US $2.36 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[06.1991 - 05.1995] 4AGE..AE101 右側 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[06.1991 - 05.1995] 4AGE..AE101 右側 |
90080-43028 |
US $19.44 |
||
|
17430
|
17430
17430-1A070 Pipe Assy, Exhaust, Tail[06.1991 - 05.1995] 4AGE..AE101..4DS 右側 |
17430-1A070 |
US $441.17 |
||
|
17430
|
17430
17440-16010 Pipe Assy, Exhaust, Tail[06.1991 - 05.1995] 4AGE..AE101..4DS 左側 |
17440-16010 |
US $401.86 |
||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[06.1991 - 08.2000] 4A#..AE101 フロント |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[06.1991 - 08.2000] 4A#..AE101 フロント |
17451-52060 |
from US $5.48 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[06.1991 - 08.2000] 4AGE..AE101 リヤ |
90917-06054 |
from US $4.47 |
||
|
17504
|
17504
17504-16030 Bracket Sub-Assy, Catalytic Converter[06.1991 - 05.1995] 4A#..AE101 |
17504-16030 |
US $23.30 |
||
|
17506A
|
17506A
17506-15070 Bracket Sub-Assy, Exhaust Pipe No.1 Support[06.1991 - 02.1995] 4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10# |
17506-15070 |
US $84.50 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[06.1991 - 02.1995] 4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10# |
17506-16120 |
from US $23.65 |
||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[02.1995 - 05.1995] 4AGE..AE101..4DS;4AFE,5AFE,2C,4EFE,5EFE..AE100,101,CE100,106,108,EE10# |
17506-16120 |
from US $23.65 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[06.1991 - 05.1995] 4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101 |
17507-15040 |
— | ||
|
17508
|
17508
17508-15050
Support Sub-Assy, Exhaust Pipe, No.3
[06.1991 - 05.1995] 4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101..4DS,WG |
17508-15050 |
— | ||
|
17509A
|
17509A
17509-16040 Bracket Sub-Assy, Exhaust Pipe No.4 Support[06.1991 - 05.1995] 4AGE..AE101..4DS |
17509-16040 |
US $29.12 |
||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[06.1991 - 05.1995] 4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101 |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[06.1991 - 05.1995] 4A#,5AFE,2C,4EFE..AE100,101,CE100,EE101 |
17565-28020 |
US $7.04 |
||
|
18436
|
18436
18436-16030 Protector, Catalytic Converter[06.1991 - 05.1995] 4A#..AE101 |
18436-16030 |
US $28.25 |
||
|
18491
|
18491
18491-16010
Flange, Thermosenser Inlet
[05.1993 - 05.1995] 4A#,5AFE,2E,3E,4EFE,5EFE..AE100,101,EE10# |
18491-16010 |
— | ||
|
18491
|
18491
18491-63010 Flange, Thermosenser Inlet[06.1991 - 02.1993] 4A#,5AFE,2E,3E..AE100,101,EE106,107,108 |
18491-63010 |
US $11.68 |
||
|
91629B1225
|
91629B1225
91629-B1225 BOLT W-WASHER |
91629-B1225 |
US $4.16 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
91655B0835
|
91655B0835
91655-B0835
New Genuine Part
|
91655-B0835 |
— | ||
| replacement | |||||
|
91655B0835
|
91655B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.60 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906803
|
9011906803
90119-06803 New Genuine Part |
90119-06803 |
US $1.46 |
||
| replacement | |||||
|
9011906803
|
9011906803
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165560830
|
9165560830
91655-60830
New Genuine Part
|
91655-60830 |
— | ||
| replacement | |||||
|
9165560830
|
9165560830
91651-60828 Bolt |
91651-60828 |
from US $1.89 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
