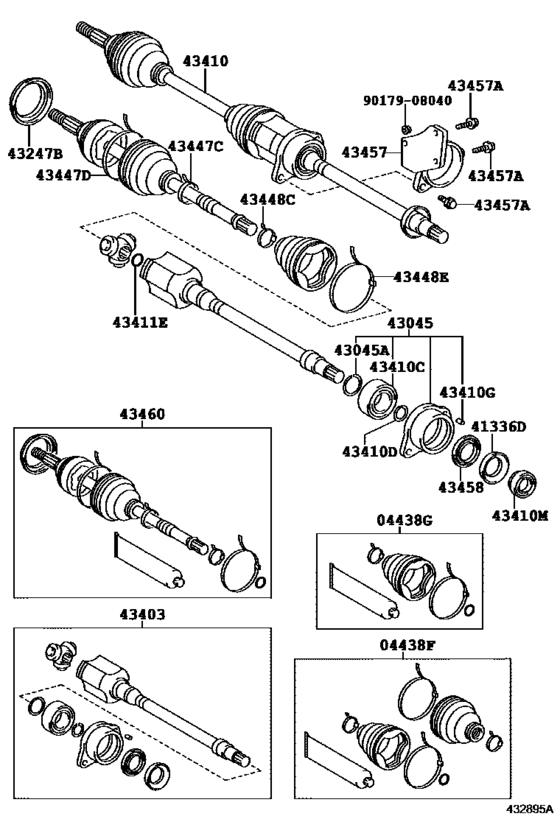

Front Drive Shaft ([06.1991 - ] RH (9106- )GT ; (9605- )AE101) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-12290
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[06.1991 - 08.1994] AE101..GT |
04438-12290 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[06.1991 - 08.1994] AE101..GT |
04438-20134 |
— | ||
|
04438G
|
04438G
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1993 - 11.1995] AE101,CE100,106,108..CTD,DX,G,GL,GT,L,LT,LX,SEL,XE |
04438-12260 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1993 - 11.1995] AE101,CE100,106,108..CTD,DX,G,GL,GT,L,LT,LX,SEL,XE |
04438-42201 |
from US $66.73 |
||
|
04438G
|
04438G
04438-12280 Boot Kit, Front Drive Shaft Inboard Joint, Rh[06.1991 - 11.1993] AE101..GT |
04438-12280 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[06.1991 - 11.1993] AE101..GT |
04438-42201 |
from US $66.73 |
||
|
41336D
|
41336D
41336-20011
Cover, Dust(For Front Drive Shaft)
[06.1991 - 05.1993] AE101..GT |
41336-20011 |
— | ||
| replacement | |||||
|
41336D
|
41336D
41336-20050 Cover, Front Drive Shaft Dust, Rh[06.1991 - 05.1993] AE101..GT |
41336-20050 |
US $6.12 |
||
|
43045
|
43045
43045-20010 Case Sub Assy, Drive Shaft Bearing[06.1991 - 08.2000] AE101..BZT,GT |
43045-20010 |
US $68.32 |
||
|
43045A
|
43045A
96153-00680 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[06.1991 - 08.2000] AE101..BZT,GT |
96153-00680 |
US $4.02 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[06.1991 - 05.1996] AE10#,CE100,104,EE101 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43247-12010 |
from US $10.88 |
||
|
43247B
|
43247B
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[06.1991 - 05.1996] AE10#,CE10#,EE10# ＴＯＹＯＴＡ |
43247-33010 |
US $36.48 |
||
|
43403
|
43403
43030-12030
Joint Set, Front Axle Inboard, Rh
[06.1991 - 05.1993] AE101..GT |
43030-12030 |
— | ||
|
43410
|
43410
43410-12360 Shaft Assy, Front Drive, Rh[06.1991 - 05.1995] AE101..GT |
43410-12360 |
US $1,067.25 |
||
| replacements | |||||
|
43410
|
43410
43410-12362 Shaft Assy, Front Drive, Rh[06.1991 - 05.1995] AE101..GT |
43410-12362 |
US $1,067.25 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[06.1991 - 05.1995] AE101..GT |
90178-22001 |
from US $2.15 |
||
|
43410
|
43410
43410-12370 Shaft Assy, Front Drive, Rh[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
43410-12370 |
US $1,071.62 |
||
| replacements | |||||
|
43410
|
43410
43410-12373 Shaft Assy, Front Drive, Rh[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
43410-12373 |
US $1,073.07 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
|
43410C
|
43410C
90363-36001
Bearing
[06.1991 - 06.1998] AE101..BZT,GT |
90363-36001 |
— | ||
| replacements | |||||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[06.1991 - 06.1998] AE101..BZT,GT |
90363-36004 |
from US $37.54 |
||
|
43410C
|
43410C
90363-36010 Bearing (For Front Drive Shaft)[06.1991 - 06.1998] AE101..BZT,GT |
90363-36010 |
US $26.73 |
||
|
43410D
|
43410D
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[06.1991 - 08.2000] AE101..BZT,GT |
90520-33008 |
from US $1.76 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[06.1991 - 08.2000] AE101..BZT,GT |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-34007 Seal, Oil, No.2(For Transaxle Case)[06.1991 - 08.1991] AE10#,EE101..MTM |
90311-34007 |
US $3.93 |
||
| replacement | |||||
|
43410M
|
43410M
90311-34016 Seal, Oil, No.2(For Transaxle Case)[06.1991 - 08.1991] AE10#,EE101..MTM |
90311-34016 |
from US $4.32 |
||
|
43410M
|
43410M
90311-34016 Seal, Oil, No.2(For Transaxle Case)[08.1991 - 08.2000] AE100,101,EE10#..MTM |
90311-34016 |
from US $4.32 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[06.1991 - 05.1993] AE100..3FC,5F;AE101,104,CE10#;AE100..4DS..4FC ＴＯＹＯＴＡ |
90520-22005 |
from US $1.24 |
||
|
43447C
|
43447C
42345-14010 Clamp, Rear Drive Shaft Boot[06.1991 - 04.1997] AE101,104,109,CE10#..BZT,CTD,DX,G,GL,GT,L,LT,LX,SEL,XE 内径＝３５．７５ |
42345-14010 |
US $11.20 |
||
|
43447D
|
43447D
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 05.1997] AE101,104,109,CE10#..BZT,CTD,DX,G,GL,GT,L,LT,LX,SEL,XE |
42345-16040 |
— | ||
|
43447D
|
43447D
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[06.1991 - 07.1993] AE101,104,CE10#..CTD,DX,GL,GT,L,LX,SEL,XE 内径＝９２．２,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ピンク |
90949-01076 |
— | ||
| replacement | |||||
|
43447D
|
43447D
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [06.1991 - 07.1993] AE101,104,CE10#..CTD,DX,GL,GT,L,LX,SEL,XE 内径＝９２．２,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ピンク |
42345-12160 |
from US $4.64 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[06.1991 - 07.1993] AE10#,CE10#,EE10# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 05.1994] AE10#,CE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,XE TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-16040 |
— | ||
|
43448E
|
43448E
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[06.1991 - 07.1993] AE100..3FC,5F;AE101,104,CE10#;AE100..4DS..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ピンク |
90949-01076 |
— | ||
| replacement | |||||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [06.1991 - 07.1993] AE100..3FC,5F;AE101,104,CE10#;AE100..4DS..4FC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ピンク |
42345-12160 |
from US $4.64 |
||
|
43457
|
43457
43457-12030 Bracket, Drive Shaft Bearing[06.1991 - 08.2000] AE101..MTM..(BZT,GT) |
43457-12030 |
US $49.94 |
||
|
43457A
|
43457A
90105-08144 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[06.1991 - 05.1993] AE101..GT ＊８−１．２５ＰＸ２９−２６．５ |
90105-08144 |
US $1.40 |
||
|
43457A
|
43457A
90105-10198 Bolt (For Rear Differential Carrier Cover Setting)[06.1991 - 05.1993] AE101..GT ＊１０−１．５０ＰＸ８８−３０ |
90105-10198 |
US $2.33 |
||
|
43457A
|
43457A
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
[06.1991 - 01.1994] AE101..GT ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10202 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[06.1991 - 01.1994] AE101..GT ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43457A
|
43457A
90105-10285
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
[01.1994 - 08.2000] AE101..BZT;AE101..5F..GT ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10285 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[01.1994 - 08.2000] AE101..BZT;AE101..5F..GT ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43458
|
43458
43458-20011 Cover, Front Drive Shaft Dust[06.1991 - 05.1993] AE101..GT |
43458-20011 |
US $14.33 |
||
|
43460
|
43460
43470-19645 Shaft Assy, Front Drive Outboard Joint, Rh[06.1991 - 05.1995] AE101..GT |
43470-19645 |
US $524.16 |
||
| replacements | |||||
|
43460
|
43460
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[06.1991 - 05.1995] AE101..GT |
43470-19659 |
— | ||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[06.1991 - 05.1995] AE101..GT |
90178-22001 |
from US $2.15 |
||
|
43460
|
43460
43470-19655
Shaft Assy, Front Drive Outboard Joint, Rh
[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
43470-19655 |
— | ||
| replacements | |||||
|
43460
|
43460
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
43470-19659 |
— | ||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[06.1991 - 05.1995] AE101..GT ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
