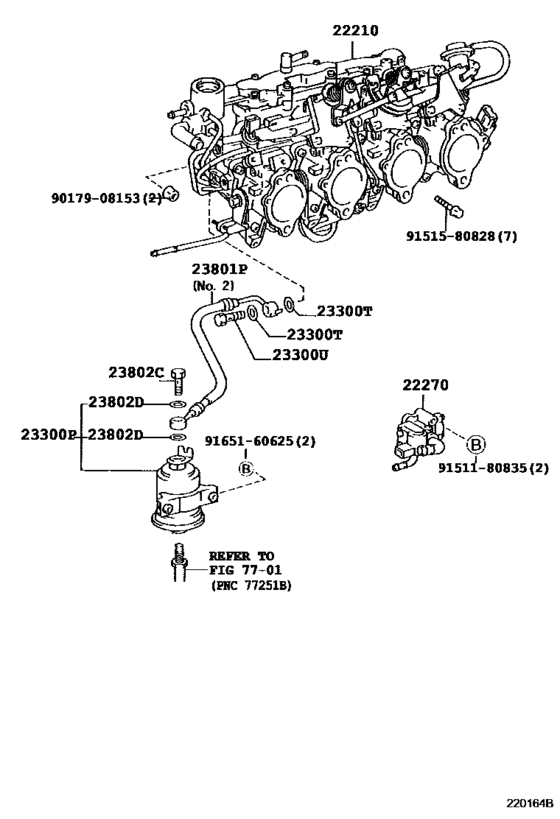

Fuel Injection System ([06.1991 - ] (9106- )4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-16571 Body Assy, Throttle[01.1993 - 12.1994] 4AGE..AE101 |
22210-16571 |
US $2,373.28 |
||
| replacement | |||||
|
22210
|
22210
22210-16572 Body Assy, Throttle[01.1993 - 12.1994] 4AGE..AE101 |
22210-16572 |
US $2,373.28 |
||
|
22210
|
22210
22210-16572 Body Assy, Throttle[12.1994 - 05.1995] 4AGE..AE101 |
22210-16572 |
US $2,373.28 |
||
|
22210
|
22210
22210-16620 Body Assy, Throttle[06.1991 - 07.1991] 4AGE..AE101..5F |
22210-16620 |
US $2,475.20 |
||
| replacement | |||||
|
22210
|
22210
22210-16621 Body Assy, Throttle[06.1991 - 07.1991] 4AGE..AE101..5F |
22210-16621 |
US $2,431.52 |
||
|
22210
|
22210
22210-16621 Body Assy, Throttle[07.1991 - 01.1993] 4AGE..AE101..5F |
22210-16621 |
US $2,431.52 |
||
|
22270
|
22270
22270-16030
Valve Assy, Idle Speed Control(For Thlottle Body)
[06.1991 - 05.1995] 4AGE..AE101 |
22270-16030 |
— | ||
|
23300P
|
23300P
23300-19295 Filter, Fuel(For Efi)[06.1991 -] 4EFE,5EFE..EE101,102,103,104; 4A#,5AFE..AE10# |
23300-19295 |
US $93.72 |
||
|
23300T
|
23300T
90430-12026 Gasket[06.1991 -] 4EFE,5EFE..EE101,102,103,104; 4A#,5AFE..AE10# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[06.1991 - 09.1997] 4A#,5AFE..AE10#..DX,G,GT,LT,LX,SEG,SEL,SJ,XE |
90401-12097 |
from US $3.08 |
||
|
23801P
|
23801P
23801-16060 Pipe Sub-Assy, Fuel, No.1[06.1991 - 07.1991] 4AGE..AE101 |
23801-16060 |
US $116.48 |
||
| replacement | |||||
|
23801P
|
23801P
23801-16061 Pipe Sub-Assy, Fuel, No.1[06.1991 - 07.1991] 4AGE..AE101 |
23801-16061 |
US $115.02 |
||
|
23801P
|
23801P
23801-16061 Pipe Sub-Assy, Fuel, No.1[07.1991 - 05.1995] 4AGE..AE101 |
23801-16061 |
US $115.02 |
||
|
23801P
|
23801P
90923-01380 Pipe Sub-Assy, Fuel, No.1[06.1991 - 08.2000] 4AGE..AE101 ＮＯ．２ |
90923-01380 |
US $96.10 |
||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[06.1991 -] 4A#,5AFE..AE10# |
90401-12097 |
from US $3.08 |
||
|
23802D
|
23802D
90430-12026 Gasket[06.1991 -] 4AGE..AE101 |
90430-12026 |
from US $0.88 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $1.01 |
||
|
9151580828
|
9151580828
91515-80828 Bolt(For Front Differential Side Bearing Retainer) |
91515-80828 |
US $1.75 |
||
| replacement | |||||
|
9151580828
|
9151580828
91511-C0825 Bolt(For Front Differential Side Bearing Retainer) |
91511-C0825 |
US $2.08 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
