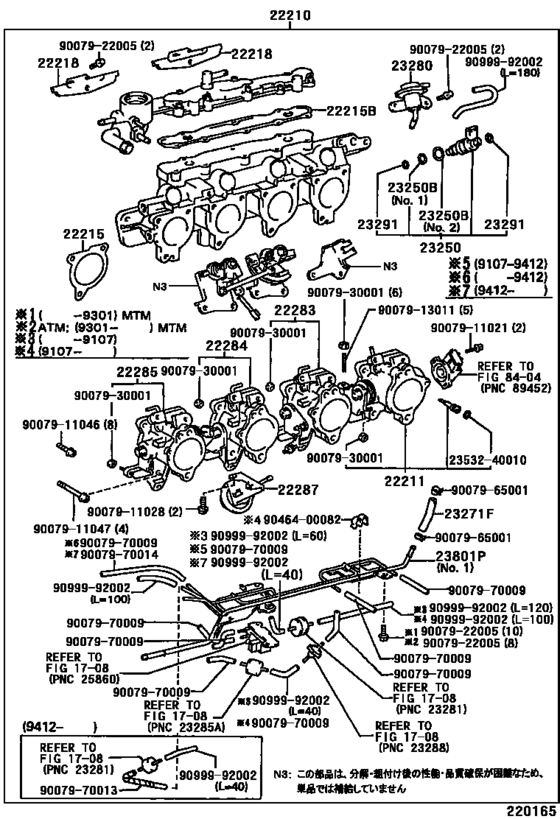

Fuel Injection System ([06.1991 - 05.1995] (9106-9505)4AGE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-16571 Body Assy, Throttle[01.1993 - 12.1994] 4AGE..AE101 |
22210-16571 |
US $2,373.28 |
||
| replacement | |||||
|
22210
|
22210
22210-16572 Body Assy, Throttle[01.1993 - 12.1994] 4AGE..AE101 |
22210-16572 |
US $2,373.28 |
||
|
22210
|
22210
22210-16572 Body Assy, Throttle[12.1994 - 05.1995] 4AGE..AE101 |
22210-16572 |
US $2,373.28 |
||
|
22210
|
22210
22210-16620 Body Assy, Throttle[06.1991 - 07.1991] 4AGE..AE101..5F |
22210-16620 |
US $2,475.20 |
||
| replacement | |||||
|
22210
|
22210
22210-16621 Body Assy, Throttle[06.1991 - 07.1991] 4AGE..AE101..5F |
22210-16621 |
US $2,431.52 |
||
|
22210
|
22210
22210-16621 Body Assy, Throttle[07.1991 - 01.1993] 4AGE..AE101..5F |
22210-16621 |
US $2,431.52 |
||
|
22211
|
22211
22211-16570 Body, Throttle[06.1991 - 05.1992] 4AGE..AE101 |
22211-16570 |
US $232.96 |
||
| replacement | |||||
|
22211
|
22211
22211-16571 Body, Throttle[06.1991 - 05.1992] 4AGE..AE101 |
22211-16571 |
US $147.06 |
||
|
22211
|
22211
22211-16571 Body, Throttle[05.1992 - 05.1995] 4AGE..AE101 |
22211-16571 |
US $147.06 |
||
|
22215
|
22215
22215-16571 Gasket, Throttle Body Cover[06.1991 - 09.1992] 4AGE..AE101 |
22215-16571 |
US $5.97 |
||
| replacement | |||||
|
22215
|
22215
22215-16572 Gasket, Throttle Body Cover[06.1991 - 09.1992] 4AGE..AE101 |
22215-16572 |
US $4.16 |
||
|
22215
|
22215
22215-16572 Gasket, Throttle Body Cover[09.1992 - 05.1995] 4AGE..AE101 |
22215-16572 |
US $4.16 |
||
|
22215B
|
22215B
22224-16760 Gasket, Throttle Body Cover, No.2[06.1991 - 08.2000] 4AGE..AE101 |
22224-16760 |
US $4.16 |
||
|
22218
|
22218
22218-16571 Cover(For Throttle Body)[01.1993 - 05.1995] 4AGE..AE101 |
22218-16571 |
US $4.16 |
||
|
22283
|
22283
22283-16570 Body, Throttle, No.2[06.1991 - 05.1992] 4AGE..AE101 |
22283-16570 |
US $235.87 |
||
| replacement | |||||
|
22283
|
22283
22283-16571 Body, Throttle, No.2[06.1991 - 05.1992] 4AGE..AE101 |
22283-16571 |
US $148.51 |
||
|
22283
|
22283
22283-16571 Body, Throttle, No.2[05.1992 - 05.1995] 4AGE..AE101 |
22283-16571 |
US $148.51 |
||
|
22284
|
22284
22284-16570 Body, Throttle, No.3[06.1991 - 05.1992] 4AGE..AE101 |
22284-16570 |
US $235.87 |
||
| replacement | |||||
|
22284
|
22284
22284-16571 Body, Throttle, No.3[06.1991 - 05.1992] 4AGE..AE101 |
22284-16571 |
US $148.51 |
||
|
22284
|
22284
22284-16571 Body, Throttle, No.3[05.1992 - 05.1995] 4AGE..AE101 |
22284-16571 |
US $148.51 |
||
|
22285
|
22285
22285-16570 Body, Throttle, No.4[06.1991 - 05.1992] 4AGE..AE101 |
22285-16570 |
US $235.87 |
||
| replacement | |||||
|
22285
|
22285
22285-16571 Body, Throttle, No.4[06.1991 - 05.1992] 4AGE..AE101 |
22285-16571 |
US $235.87 |
||
|
22285
|
22285
22285-16571 Body, Throttle, No.4[05.1992 - 12.1994] 4AGE..AE101 |
22285-16571 |
US $235.87 |
||
|
22285
|
22285
22285-16572 Body, Throttle, No.4[12.1994 - 05.1995] 4AGE..AE101 |
22285-16572 |
US $235.87 |
||
|
22287
|
22287
22287-16570 Opener[06.1991 - 05.1995] 4AGE..AE101 |
22287-16570 |
US $52.12 |
||
|
23250
|
23250
23209-19015
Injector Assy, Fuel
[06.1991 - 08.2000] 4AGE..AE101 |
23209-19015 |
— | ||
|
23250B
|
23250B
90301-14006 Ring, O(For Fuel Injector)[06.1991 - 08.2000] 4AGE..AE101 ＮＯ．１ |
90301-14006 |
from US $2.91 |
||
|
23250B
|
23250B
90301-17007 Ring, O(For Fuel Injector)[06.1991 - 08.2000] 4AGE..AE101 ＮＯ．２ |
90301-17007 |
from US $3.06 |
||
|
23271F
|
23271F
95333-06010 Hose, Fuel[06.1991 - 05.1995] 4AGE..AE101 |
95333-06010 |
US $4.80 |
||
|
23280
|
23280
23280-16140
Regulator Assy, Fuel Pressure
[06.1991 - 05.1995] 4AGE..AE101 |
23280-16140 |
— | ||
|
23291
|
23291
23291-75010 Insulator, Injector Vibration[06.1991 - 08.2000] 4AGE..AE101 |
23291-75010 |
from US $2.56 |
||
|
23801P
|
23801P
23801-16060 Pipe Sub-Assy, Fuel, No.1[06.1991 - 07.1991] 4AGE..AE101 |
23801-16060 |
US $116.48 |
||
| replacement | |||||
|
23801P
|
23801P
23801-16061 Pipe Sub-Assy, Fuel, No.1[06.1991 - 07.1991] 4AGE..AE101 |
23801-16061 |
US $115.02 |
||
|
23801P
|
23801P
23801-16061 Pipe Sub-Assy, Fuel, No.1[07.1991 - 05.1995] 4AGE..AE101 |
23801-16061 |
US $115.02 |
||
|
23801P
|
23801P
90923-01380 Pipe Sub-Assy, Fuel, No.1[06.1991 - 08.2000] 4AGE..AE101 ＮＯ．２ |
90923-01380 |
US $96.10 |
||
|
2353240010
|
2353240010
23532-40010 Ring, O(For Thermostatic Valve) |
23532-40010 |
US $3.36 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007911028
|
9007911028
90079-11028 New Genuine Part |
90079-11028 |
US $0.87 |
||
|
9007911046
|
9007911046
90079-11046 New Genuine Part |
90079-11046 |
US $1.38 |
||
|
9007911047
|
9007911047
90079-11047 New Genuine Part |
90079-11047 |
US $0.87 |
||
|
9007913011
|
9007913011
90079-13011 New Genuine Part |
90079-13011 |
US $1.92 |
||
|
9007922005
|
9007922005
90079-22005
New Genuine Part
|
90079-22005 |
— | ||
|
9007930001
|
9007930001
90079-30001 Nut |
90079-30001 |
US $2.08 |
||
|
9007965001
|
9007965001
90079-65001 New Genuine Part |
90079-65001 |
US $1.16 |
||
|
9007970009
|
9007970009
90079-70009 New Genuine Part |
90079-70009 |
US $9.90 |
||
| replacement | |||||
|
9007970009
|
9007970009
90079-70011 New Genuine Part |
90079-70011 |
US $6.26 |
||
|
9007970013
|
9007970013
90079-70013 New Genuine Part |
90079-70013 |
US $9.90 |
||
| replacement | |||||
|
9007970013
|
9007970013
90079-70014 New Genuine Part |
90079-70014 |
US $5.97 |
||
|
9007970014
|
9007970014
90079-70014 New Genuine Part |
90079-70014 |
US $5.97 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
