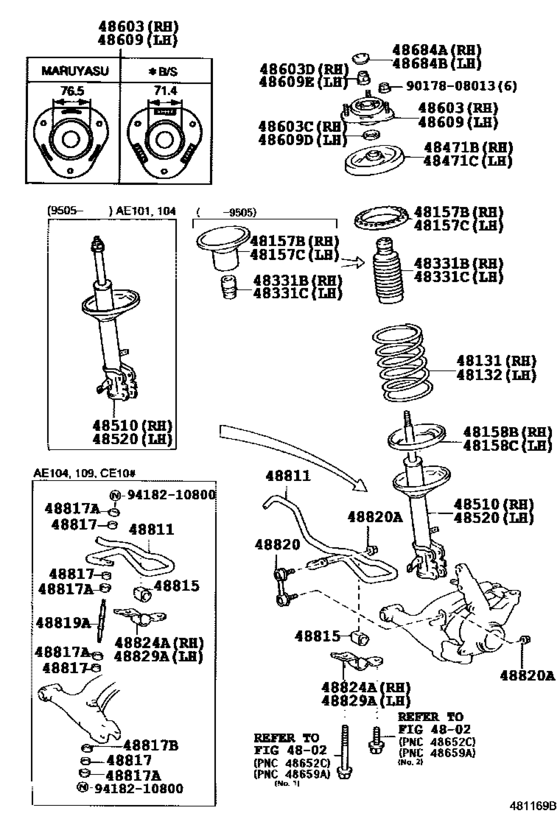

Front Spring & Shock Absorber ([06.1991 - ] (9106- )) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SEG
- body
- 4DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-1K810 Spring, Front Coil, Rh[06.1991 - 05.1995] AE101..4FC..SEG |
48131-1K810 |
US $107.74 |
||
|
48132
|
48132
48131-1K790 Spring, Front Coil, Rh[06.1991 - 05.1995] AE101..4FC..SEG |
48131-1K790 |
US $141.23 |
||
|
48157B
|
48157B
48157-12060 Insulator, Front Coil Spring, Upper[06.1991 - 05.1995] AE10#,CE10#,EE10# |
48157-12060 |
US $13.26 |
||
|
48157C
|
48157C
48157-12060 Insulator, Front Coil Spring, Upper[06.1991 - 05.1995] AE10#,CE10#,EE10# |
48157-12060 |
US $13.26 |
||
|
48158B
|
48158B
48158-12030 Insulator, Front Coil Spring, Lower[06.1991 -] AE10#,CE10#,EE10# |
48158-12030 |
from US $12.19 |
||
|
48158C
|
48158C
48158-12030 Insulator, Front Coil Spring, Lower[06.1991 -] AE10#,CE10#,EE10# |
48158-12030 |
from US $12.19 |
||
|
48331B
|
48331B
48331-12130 Bumper, Front Spring, No.1[06.1991 - 05.1995] AE101,104,CE10# |
48331-12130 |
US $34.94 |
||
|
48331C
|
48331C
48331-12130 Bumper, Front Spring, No.1[06.1991 - 05.1995] AE101,104,CE10# |
48331-12130 |
US $34.94 |
||
|
48471B
|
48471B
48044-12090 Seat Sub- Assy, Front Spring, No.1[06.1991 -] AE10#,CE10#,EE10# （Ｊ） |
48044-12090 |
from US $17.90 |
||
|
48471C
|
48471C
48044-12090 Seat Sub- Assy, Front Spring, No.1[06.1991 -] AE10#,CE10#,EE10# （Ｊ） |
48044-12090 |
from US $17.90 |
||
|
48510
|
48510
48510-12770 Absorber Assy, Shock, Front Rh[06.1991 - 05.1992] AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
48510-12770 |
US $327.60 |
||
| replacement | |||||
|
48510
|
48510
48510-80232 Absorber Assy, Shock, Front Rh[06.1991 - 05.1992] AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
48510-80232 |
US $321.48 |
||
|
48510
|
48510
48510-1A010 Absorber Assy, Shock, Front Rh[05.1992 - 05.1998] AE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
48510-1A010 |
US $330.51 |
||
| replacement | |||||
|
48510
|
48510
48510-80232 Absorber Assy, Shock, Front Rh[05.1992 - 05.1998] AE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
48510-80232 |
US $321.48 |
||
|
48520
|
48520
48520-12650 Absorber Assy, Shock, Front Lh[06.1991 - 05.1992] AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
48520-12650 |
US $327.60 |
||
| replacement | |||||
|
48520
|
48520
48520-80055 Absorber Assy, Shock, Front Lh[06.1991 - 05.1992] AE101,CE100,106,108..CTD,DX,GL,L,LX,SEG,SEL,XE |
48520-80055 |
from US $248.53 |
||
|
48520
|
48520
48520-12770 Absorber Assy, Shock, Front Lh[05.1992 - 05.1998] AE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
48520-12770 |
US $330.51 |
||
| replacement | |||||
|
48520
|
48520
48520-80055 Absorber Assy, Shock, Front Lh[05.1992 - 05.1998] AE101,CE100,101,102,106,107,108..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
48520-80055 |
from US $248.53 |
||
|
48603
|
48603
48609-12270
Support Sub-Assy, Front Suspension, Rh
[06.1991 - 08.1995] AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SE L,SJ,XE |
48609-12270 |
— | ||
| replacement | |||||
|
48603
|
48603
48609-12330 Support Sub-Assy, Front Suspension[06.1991 - 08.1995] AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SE L,SJ,XE |
48609-12330 |
from US $81.53 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[06.1991 -] AE10#,CE10#,EE10# |
90303-22049 |
from US $3.49 |
||
|
48603D
|
48603D
94182-11400 Nut(For Idler Arm Support)[06.1991 -] AE10#,CE10#,EE10# |
94182-11400 |
US $5.56 |
||
|
48609
|
48609
48609-12270
Support Sub-Assy, Front Suspension, Rh
[06.1991 - 08.1995] AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SE L,SJ,XE |
48609-12270 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-12330 Support Sub-Assy, Front Suspension[06.1991 - 08.1995] AE104,CE100..4DS;AE100,101,CE104,106,108,109,EE10#..CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SE L,SJ,XE |
48609-12330 |
from US $81.53 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[06.1991 -] AE10#,CE10#,EE10# |
90303-22049 |
from US $3.49 |
||
|
48609E
|
48609E
94182-11400 Nut(For Idler Arm Support)[06.1991 -] AE10#,CE10#,EE10# |
94182-11400 |
US $5.56 |
||
|
48684A
|
48684A
48684-32010 Cover, Bearing Dust[06.1991 - 02.1996] AE10#,CE10#,EE10# |
48684-32010 |
from US $6.18 |
||
|
48684B
|
48684B
48684-32010 Cover, Bearing Dust[06.1991 - 02.1996] AE10#,CE10#,EE10# |
48684-32010 |
from US $6.18 |
||
|
48811
|
48811
48811-12770
Bar, Stabilizer, Front
[05.1992 - 08.2000] AE101 |
48811-12770 |
— | ||
|
48811
|
48811
48811-1A011 Bar, Stabilizer, Front[06.1991 - 05.1992] AE101..SEG |
48811-1A011 |
US $205.30 |
||
| replacement | |||||
|
48811
|
48811
48811-12720
Bar, Stabilizer, Front
[06.1991 - 05.1992] AE101..SEG |
48811-12720 |
— | ||
|
48815
|
48815
48815-12220 Bush, Front Stabilizer Bar, No.1[06.1991 - 05.1992] AE101,104,CE104,109..DX,GL,LX,SEG,SEL,XE |
48815-12220 |
from US $6.16 |
||
|
48815
|
48815
48815-12230 Bush, Front Stabilizer Bar, No.1[05.1992 - 05.1997] AE101,CE100,106,108..BZT,CTD,DX,GL,GT,L,LX,SEG,SEL,SJ,XE |
48815-12230 |
from US $5.95 |
||
|
48820
|
48820
48820-20010 Link Assy, Front Stabilizer[06.1991 - 07.1991] AE101 |
48820-20010 |
US $86.92 |
||
|
48820
|
48820
48820-33010 Link Assy, Front Stabilizer, Lh[07.1991 - 05.1992] AE101 |
48820-33010 |
from US $54.27 |
||
|
48820A
|
48820A
90179-10183 Nut(For Front Stabilizer Link)[06.1991 - 08.2000] AE101 |
90179-10183 |
from US $0.84 |
||
|
48824A
|
48824A
48824-12130 Bracket, Front Stabilizer, No.1 Rh[06.1991 -] CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
48824-12130 |
from US $13.12 |
||
|
48829A
|
48829A
48829-12060 Bracket, Front Stabilizer, No.1 Lh[06.1991 -] CE100..4DS;AE101,104,109,CE102,104,105,106,107,108,109 |
48829-12060 |
US $13.28 |
||
|
9017808013
|
9017808013
90178-08013 New Genuine Part |
90178-08013 |
US $3.05 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.31 |
||
