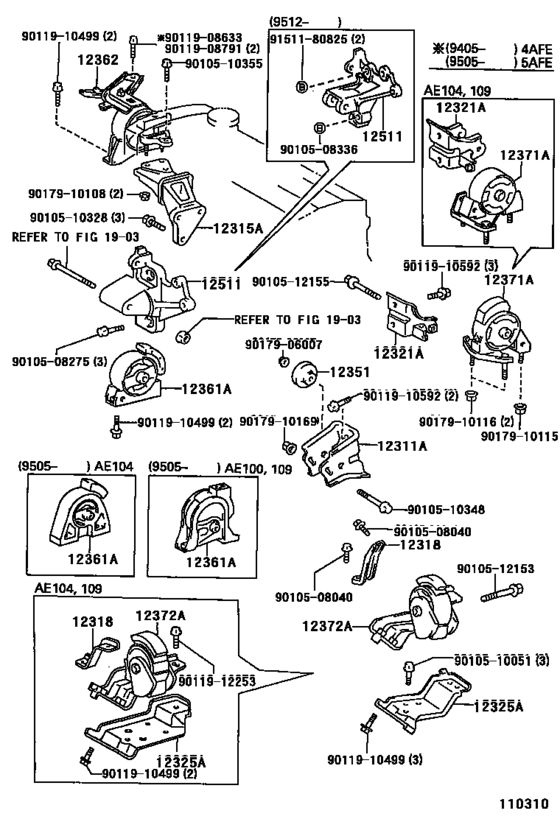

Mounting ([06.1991 - 04.1997] (9106-9704)4AFE,5AFE..4FC ; (9704-9705)4AFE,5AFE ..AE100,104..4FC) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SEG
- body
- 4DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-15130 Bracket, Engine Mounting, Front(For Transverse Engine)[06.1991 -] 4AFE,5AFE..AE100,101 |
12311-15130 |
US $30.05 |
||
|
12315A
|
12315A
12315-15080 Bracket, Engine Mounting, Rh(For Transverse Engine)[06.1991 - 06.1993] 4AFE,5AFE..AE100,101 |
12315-15080 |
US $80.08 |
||
| replacement | |||||
|
12315A
|
12315A
12315-15081 Bracket, Engine Mounting, Rh(For Transverse Engine)[06.1991 - 06.1993] 4AFE,5AFE..AE100,101 |
12315-15081 |
US $80.08 |
||
|
12315A
|
12315A
12315-15081 Bracket, Engine Mounting, Rh(For Transverse Engine)[06.1993 -] 4AFE,5AFE..AE100,101 |
12315-15081 |
US $80.08 |
||
|
12318
|
12318
12318-15040 Stay, Engine Mounting, Lh[06.1991 - 11.1994] 4AFE,5AFE..AE100,101..4FC |
12318-15040 |
US $23.59 |
||
|
12318
|
12318
12318-15050
Stay, Engine Mounting, Lh
[11.1994 - 05.1997] 4AFE,5AFE..AE100,101..4FC |
12318-15050 |
— | ||
|
12321A
|
12321A
12321-15140 Bracket, Engine Mounting, Rear(For Transverse Engine)[06.1991 -] 4AFE,5AFE..AE100,101..4FC |
12321-15140 |
US $22.57 |
||
|
12325A
|
12325A
12325-16130
Bracket, Engine Mounting, Lh(For Transverse Engine)
[06.1991 - 05.1993] 4A#,5AFE..AE100,101..4FC |
12325-16130 |
— | ||
|
12325A
|
12325A
12325-16170 Bracket, Engine Mounting, Lh(For Transverse Engine)[05.1993 - 05.1997] 4A#..AE101..4FC |
12325-16170 |
US $51.25 |
||
|
12361A
|
12361A
12361-11170
Insulator, Engine Mounting, Front(For Transverse Engine)
[06.1991 - 05.1995] 2E,3E,4EFE,5EFE..EE10#..3FC; 4A#,5AFE..AE10#..ATM |
12361-11170 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-15181 Insulator, Engine Mounting, Front(For Transverse Engine)[06.1991 - 05.1995] 2E,3E,4EFE,5EFE..EE10#..3FC; 4A#,5AFE..AE10#..ATM |
12361-15181 |
from US $46.43 |
||
|
12362
|
12362
12305-15020 Insulator, Engine Mounting, Rh(For Transverse Engine)[06.1991 - 05.1994] 4AFE,5AFE..AE100,101 |
12305-15020 |
US $155.79 |
||
| replacements | |||||
|
12362
|
12362
12305-15040 Insulator, Engine Mounting, Rh(For Transverse Engine)[06.1991 - 05.1994] 4AFE,5AFE..AE100,101 |
12305-15040 |
from US $98.96 |
||
|
12362
|
12362
88688-1A640
Bracket, Cooler Diaphragm
[06.1991 - 05.1994] 4AFE,5AFE..AE100,101 |
88688-1A640 |
— | ||
|
12362
|
12362
88718-1A650
Pipe, Cooler Refrigerant Suction, No.2
[06.1991 - 05.1994] 4AFE,5AFE..AE100,101 |
88718-1A650 |
— | ||
|
12362
|
12362
12305-16080
Insulator, Engine Mounting, Rh(For Transverse Engine)
[05.1994 - 05.1995] 4AFE..AE101 |
12305-16080 |
— | ||
| replacements | |||||
|
12362
|
12362
12305-15040 Insulator, Engine Mounting, Rh(For Transverse Engine)[05.1994 - 05.1995] 4AFE..AE101 |
12305-15040 |
from US $98.96 |
||
|
12362
|
12362
88688-1A640
Bracket, Cooler Diaphragm
[05.1994 - 05.1995] 4AFE..AE101 |
88688-1A640 |
— | ||
|
12362
|
12362
88718-1A650
Pipe, Cooler Refrigerant Suction, No.2
[05.1994 - 05.1995] 4AFE..AE101 |
88718-1A650 |
— | ||
|
12371A
|
12371A
12371-64210 Insulator, Engine Mounting, Rear[06.1991 -] 2C,3CE..CE100,101,102,106,107,108..4FC; 2E,3E,4EFE,5EFE..EE10#..3FC; 4A#,5AFE..AE100,101..ATM |
12371-64210 |
from US $63.77 |
||
|
12372A
|
12372A
12372-15180
Insulator, Engine Mounting, Lh(For Transverse Engine)
[06.1991 - 11.1994] 4AFE,5AFE..AE100,101..4FC |
12372-15180 |
— | ||
| replacements | |||||
|
12372A
|
12372A
12318-15050
Stay, Engine Mounting, Lh
[06.1991 - 11.1994] 4AFE,5AFE..AE100,101..4FC |
12318-15050 |
— | ||
|
12372A
|
12372A
12372-15181 Insulator, Engine Mounting, Lh(For Transverse Engine)[06.1991 - 11.1994] 4AFE,5AFE..AE100,101..4FC |
12372-15181 |
from US $127.55 |
||
|
12372A
|
12372A
12372-15181 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.1994 - 05.1997] 4AFE,5AFE..AE100,101..4FC |
12372-15181 |
from US $127.55 |
||
|
12511
|
12511
12511-15050 Bracket, Alternator, No.1[06.1991 - 12.1995] 4AFE,5AFE..AE10# |
12511-15050 |
US $136.86 |
||
|
9010508040
|
9010508040
90105-08040
Bolt(For Plate Bolt Lock)
|
90105-08040 |
— | ||
| replacement | |||||
|
9010508040
|
9010508040
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9010508275
|
9010508275
90105-08275 New Genuine Part |
90105-08275 |
US $5.77 |
||
|
9010508336
|
9010508336
90105-08336 Bolt(For Alternator) |
90105-08336 |
US $2.33 |
||
| replacement | |||||
|
9010508336
|
9010508336
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $5.56 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.91 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.91 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908791
|
9011908791
90119-08791 Bolt(For Transaxle & Engine Setting) |
90119-08791 |
US $2.18 |
||
| replacement | |||||
|
9011908791
|
9011908791
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.58 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9011912253
|
9011912253
90119-12253 New Genuine Part |
90119-12253 |
US $3.93 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.69 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017910116
|
9017910116
90179-10116 New Genuine Part |
90179-10116 |
US $3.20 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.40 |
||
