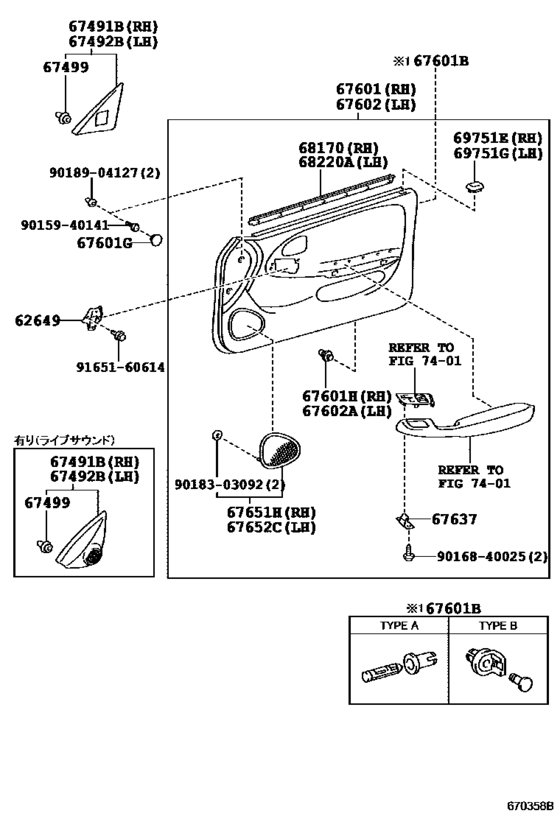

Front Door Panel & Glass ([05.1992 - ] (9205- )3DS) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SJ
- body
- 3DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62649
|
62649
67649-12020 Bracket, Side Trim[05.1992 - 05.1995] AE101..3DS 右側 |
67649-12020 |
US $7.72 |
||
|
62649
|
62649
67649-12030 Bracket, Side Trim[05.1992 - 05.1995] AE101..3DS 左側 |
67649-12030 |
US $7.72 |
||
|
67491B
|
67491B
67491-12310 Garnish, Front Door Window Upper Bracket, Rh[05.1992 - 05.1995] AE101..3DS |
67491-12310 |
US $14.71 |
||
|
67491B
|
67491B
67491-12330 Garnish, Front Door Window Upper Bracket, Rh[05.1992 - 05.1995] AE101..3DS ｱﾘ(ｽﾋﾟ-ｶ) |
67491-12330 |
US $20.53 |
||
|
67492B
|
67492B
67492-12270 Garnish, Front Door Window Upper Bracket, Lh[05.1992 - 05.1995] AE101..3DS |
67492-12270 |
US $14.71 |
||
|
67492B
|
67492B
67492-12320 Garnish, Front Door Window Upper Bracket, Lh[05.1992 - 05.1995] AE101..3DS ｱﾘ(ｽﾋﾟ-ｶ) |
67492-12320 |
US $20.53 |
||
|
67499
|
67499
67771-30070 Retainer(For Deck Side Trim Panel)[05.1992 - 05.1995] AE101..3DS ｱﾘ(ｽﾋﾟ-ｶ),ホワイト |
67771-30070 |
US $3.04 |
||
|
67499
|
67499
67921-18010 Retainer, Front Door Lower Frame Bracket Garnish[05.1992 - 05.1995] AE101..3DS ｱﾘ(ｽﾋﾟ-ｶ),オレンジ |
67921-18010 |
US $1.85 |
||
|
67601
|
67601
67610-1H370-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1994] AE101..SJ SHADOW GRAY,TRIM1# |
67610-1H370-B0 |
US $403.31 |
||
|
67601
|
67601
67610-1H580-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1993] AE101..SJ ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67610-1H580-B0 |
US $381.47 |
||
|
67601
|
67601
67650-1E810-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67650-1E810-B0 |
US $630.45 |
||
| replacement | |||||
|
67601
|
67601
67650-1E811-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67650-1E811-B0 |
US $630.45 |
||
|
67601
|
67601
67650-1E811-B0 Board Sub-Assy, Front Door Trim, Rh[05.1993 - 05.1994] AE101..SJ ｱﾘ(*PW & *EL & ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67650-1E811-B0 |
US $630.45 |
||
|
67601
|
67601
67650-1E820-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & *EL),SHADOW GRAY,TRIM1# |
67650-1E820-B0 |
US $630.45 |
||
| replacement | |||||
|
67601
|
67601
67650-1E821-B0 Board Sub-Assy, Front Door Trim, Rh[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & *EL),SHADOW GRAY,TRIM1# |
67650-1E821-B0 |
US $630.45 |
||
|
67601
|
67601
67650-1E821-B0 Board Sub-Assy, Front Door Trim, Rh[05.1993 - 05.1995] AE101..SJ ｱﾘ(*PW),SHADOW GRAY,TRIM1# |
67650-1E821-B0 |
US $630.45 |
||
|
67601B
|
67601B
90467-07066-03
Clip(For Deck Trim Rear Cover)
[05.1992 - 05.1993] AE10#,CE100,104,EE101..G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
90467-07066-03 |
— | ||
| replacement | |||||
|
67601B
|
67601B
90467-07066-P0 Clip(For Front Door Trim Board)[05.1992 - 05.1993] AE10#,CE100,104,EE101..G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
90467-07066-P0 |
US $1.76 |
||
|
67601B
|
67601B
90467-07066-P0 Clip(For Front Door Trim Board)[09.1993 - 04.1997] AE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
90467-07066-P0 |
US $1.76 |
||
|
67601B
|
67601B
90467-09141 Clip(For Front Door Trim Board)[05.1992 - 05.1993] AE10#,CE100,104,EE101..G,GT,LT,LX,SEG,SEL,SJ,XE タイプ Ｂ |
90467-09141 |
US $4.16 |
||
|
67601G
|
67601G
90950-01800-B0 Plug, Hole(For Front Door Trim Board)[05.1992 - 05.1993] AE10#,CE100,104,EE101..G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
90950-01800-B0 |
from US $3.24 |
||
|
67601H
|
67601H
67771-12050 Clip, Radiator Grille[01.1994 - 05.1995] AE101..3DS |
67771-12050 |
from US $1.58 |
||
|
67601H
|
67601H
67771-28020 Retainer, Lower Back Finish Panel[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & *EL) OR ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),レッド |
67771-28020 |
US $3.52 |
||
|
67602
|
67602
67620-1K740-B0 Board Sub-Assy, Front Door Trim, Lh[05.1992 - 05.1994] AE101..SJ ｱﾘ(*PW & ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67620-1K740-B0 |
US $448.45 |
||
|
67602
|
67602
67620-1K750-B0 Board Sub-Assy, Front Door Trim, Lh[05.1992 - 05.1995] AE101..SJ ｱﾘ(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1K750-B0 |
US $448.45 |
||
|
67602
|
67602
67620-1L240-B0 Board Sub-Assy, Front Door Trim, Lh[05.1992 - 04.1993] AE101..SJ SHADOW GRAY,TRIM1# |
67620-1L240-B0 |
US $401.86 |
||
| replacement | |||||
|
67602
|
67602
67620-1L870-B0 Board Sub-Assy, Front Door Trim, Lh[05.1992 - 04.1993] AE101..SJ SHADOW GRAY,TRIM1# |
67620-1L870-B0 |
US $401.86 |
||
|
67602
|
67602
67620-1L610-B0 Board Sub-Assy, Front Door Trim, Lh[05.1992 - 05.1994] AE101..SJ ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67620-1L610-B0 |
US $381.47 |
||
|
67602
|
67602
67620-1L870-B0 Board Sub-Assy, Front Door Trim, Lh[04.1993 - 05.1994] AE101..SJ SHADOW GRAY,TRIM1# |
67620-1L870-B0 |
US $401.86 |
||
|
67602A
|
67602A
67771-12050 Clip, Radiator Grille[01.1994 - 05.1995] AE101..3DS |
67771-12050 |
from US $1.58 |
||
|
67602A
|
67602A
67771-28020 Retainer, Lower Back Finish Panel[05.1992 - 05.1993] AE101..SJ ｱﾘ(*PW & *EL) OR ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),レッド |
67771-28020 |
US $3.52 |
||
|
67637
|
67637
67637-12030 Plate, Front Door Trim[05.1992 - 05.1995] AE101..3DS |
67637-12030 |
US $1.46 |
||
|
67651H
|
67651H
67651-19015-B0 Grille, Speaker Door, Rh[06.1991 - 04.1997] AE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
67651-19015-B0 |
US $34.07 |
||
|
67651H
|
67651H
67651-19025-B0 Grille, Speaker Door, Rh[05.1992 - 05.1994] AE101..3DS ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67651-19025-B0 |
US $49.21 |
||
|
67652C
|
67652C
67652-19015-B0 Grille, Speaker Door, Lh[06.1991 - 04.1997] AE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
67652-19015-B0 |
US $34.07 |
||
|
67652C
|
67652C
67652-19025-B0 Grille, Speaker Door, Lh[05.1992 - 05.1994] AE101..3DS ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ),SHADOW GRAY,TRIM1# |
67652-19025-B0 |
US $49.21 |
||
|
68170
|
68170
68171-12230
Weatherstrip Assy, Front Door Glass, Inner
[05.1992 - 05.1995] AE101..3DS |
68171-12230 |
— | ||
|
68220A
|
68220A
68172-12150
Weatherstrip Assy, Front Door Glass, Inner Lh
[05.1992 - 05.1995] AE101..3DS |
68172-12150 |
— | ||
|
69751E
|
69751E
69751-12050-B0
Holder, Front Door Lock Control Knob, Rh
[09.1991 - 04.1997] EE106,107..CTD,DX;AE101,CE106,EE102..(3DS,V)..(CTD,DXJ,GT,SJ) SHADOW GRAY,TRIM1 |
69751-12050-B0 |
— | ||
|
69751G
|
69751G
69751-12050-B0
Holder, Front Door Lock Control Knob, Rh
[09.1991 - 04.1997] EE106,107..CTD,DX;AE101,CE106,EE102..(3DS,V)..(CTD,DXJ,GT,SJ) SHADOW GRAY,TRIM1 |
69751-12050-B0 |
— | ||
|
9015940141
|
9015940141
90159-40141 SCREW |
90159-40141 |
from US $1.54 |
||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.44 |
||
|
9018303092
|
9018303092
90183-03092 New Genuine Part |
90183-03092 |
US $2.08 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
