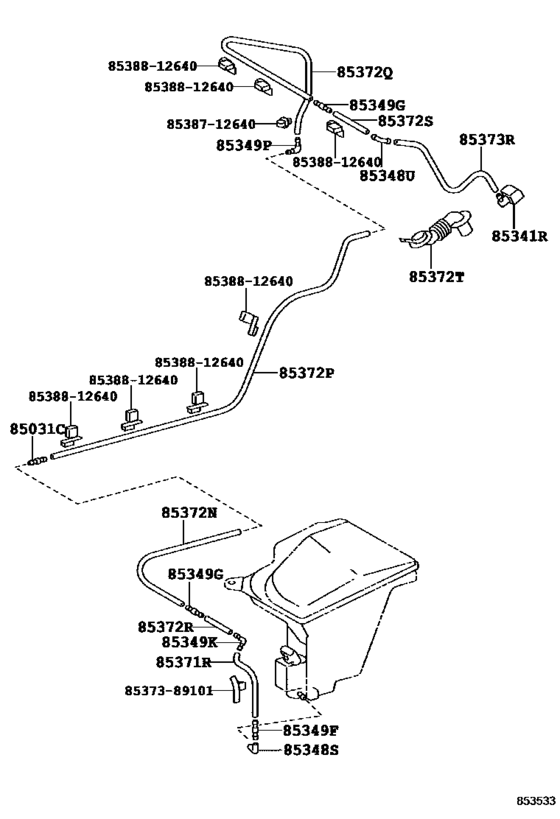

Rear Washer ([05.1992 - 05.1995] (9205-9505)3DS) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SJ
- body
- 3DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031C
|
85031C
85031-30010 Valve Sub-Assy, Washer[05.1992 - 06.2002] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG |
85031-30010 |
from US $1.54 |
||
|
85341R
|
85341R
85395-12020
Nozzle Assy, Washer
[05.1992 - 05.1995] AE101..3DS |
85395-12020 |
— | ||
|
85348S
|
85348S
85336-12230 Joint, Windshield Washer Elbow, No.1[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG |
85336-12230 |
from US $0.84 |
||
|
85348U
|
85348U
85349-89122 Valve Sub-Assy, Washer[12.1993 - 08.1994] AE101..3DS |
85349-89122 |
from US $1.25 |
||
|
85348U
|
85348U
85355-20080
Joint, Rear Washer Hose, No.1
[05.1992 - 12.1993] AE100,101,CE106,108,109,EE106,107,108..3DS,V,WG |
85355-20080 |
— | ||
|
85349F
|
85349F
85375-10260 Joint, Windshield Washer Hose, No.1[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG |
85375-10260 |
from US $1.62 |
||
|
85349G
|
85349G
85349-89122 Valve Sub-Assy, Washer[05.1992 - 05.1995] AE101..3DS |
85349-89122 |
from US $1.25 |
||
|
85349K
|
85349K
85317-12230
Joint, Windshield Washer Elbow, No.2
[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG |
85317-12230 |
— | ||
|
85349P
|
85349P
85355-20200 Joint, Windshield Washer Hose, No.1[05.1992 - 05.1995] AE101..3DS |
85355-20200 |
from US $1.03 |
||
|
85371R
|
85371R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104..3DS,V,WG ＊Ｈ，Ｌ＝１３０ |
90446-07001 |
from US $2.10 |
||
|
85372N
|
85372N
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1992 - 07.1994] AE100,101,CE106,108,109,EE102,103,104,106,107,108..3DS,V,WG ＊Ｈ，Ｌ＝１４４０ |
90446-07001 |
from US $2.10 |
||
|
85372P
|
85372P
90099-33589 Hose, Rear Washer (From Motor To Joint)[05.1992 - 05.1995] AE101..3DS 長さ＝２３５０ |
90099-33589 |
from US $3.84 |
||
|
85372Q
|
85372Q
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1992 - 05.1995] AE101..3DS ＊Ｈ，Ｌ＝９４０ |
90446-07001 |
from US $2.10 |
||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1992 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG ＊Ｈ，Ｌ＝７０ |
90099-33080 |
from US $5.95 |
||
|
85372S
|
85372S
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1992 - 05.1995] AE101..3DS ＊Ｈ，Ｌ＝９０ |
90099-33299 |
from US $4.37 |
||
|
85372T
|
85372T
85373-13010
Grommet, Washer
[05.1992 - 01.1996] AE10#,CE100..3DS,WG |
85373-13010 |
— | ||
| replacement | |||||
|
85372T
|
85372T
82819-13080
Grommet, Washer
[05.1992 - 01.1996] AE10#,CE100..3DS,WG |
82819-13080 |
— | ||
|
85373R
|
85373R
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1992 - 05.1995] AE101..3DS ＊Ｈ，Ｌ＝２５０ |
90099-33299 |
from US $4.37 |
||
|
8537389101
|
8537389101
85373-89101
Hose, Windshield Washer (from Joint To Nozzle)
|
85373-89101 |
— | ||
|
8538712640
|
8538712640
85387-12640
Clamp No.1 (for Windseield Washer)
|
85387-12640 |
— | ||
|
8538812640
|
8538812640
85388-12640
Clamp No.2 (for Windseield Washer)
|
85388-12640 |
— | ||
