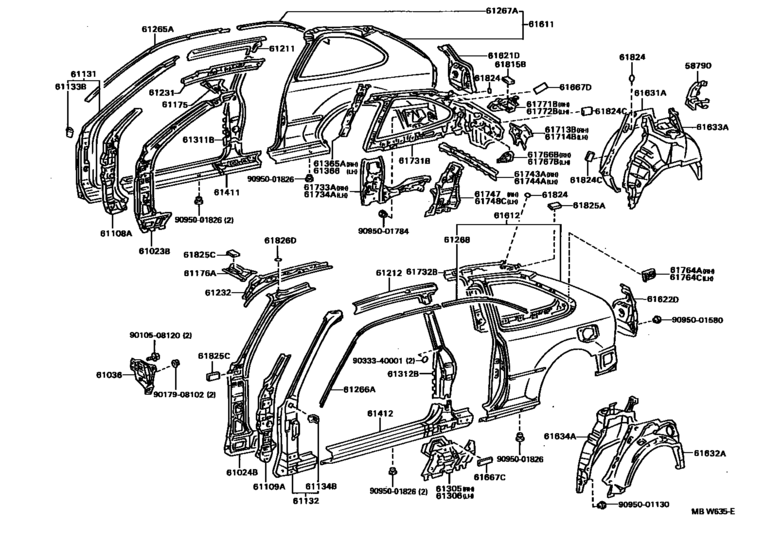

Side Member ([05.1992 - 05.1995] (9205-9505)3DS) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SJ
- body
- 3DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58790
|
58790
58790-12100 Carrier Assy, Jack[05.1992 - 05.1995] AE101..3DS |
58790-12100 |
US $44.12 |
||
|
61023B
|
61023B
61023-12050 Pillar Sub-Assy, Front Body, Inner Rh[06.1991 - 08.2000] AE100,101,104,CE100,101,104,EE101 |
61023-12050 |
US $292.66 |
||
|
61024B
|
61024B
61024-12050 Pillar Sub-Assy, Front Body, Inner Lh[06.1991 - 08.2000] AE100,101,104,CE100,101,104,EE101 |
61024-12050 |
US $292.66 |
||
|
61036
|
61036
61036-12050 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[06.1991 - 05.1995] AE10#,CE10#,EE10# |
61036-12050 |
US $38.58 |
||
| replacement | |||||
|
61036
|
61036
61036-12090 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[06.1991 - 05.1995] AE10#,CE10#,EE10# |
61036-12090 |
US $38.58 |
||
|
61108A
|
61108A
61108-12110 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[06.1991 -] AE10#,CE10#,EE10# |
61108-12110 |
US $123.76 |
||
|
61109A
|
61109A
61109-12100 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[06.1991 -] AE10#,CE10#,EE10# |
61109-12100 |
US $123.76 |
||
|
61131
|
61131
61131-12410 Pillar, Front Body, Upper Outer Rh[05.1992 - 05.1994] AE101..3DS |
61131-12410 |
US $291.20 |
||
|
61131
|
61131
61131-12420 Pillar, Front Body, Upper Outer Rh[05.1992 - 05.1995] AE101..SJ ｱﾘ(*RS) |
61131-12420 |
US $291.20 |
||
|
61132
|
61132
61132-12420 Pillar, Front Body, Upper Outer Lh[05.1992 - 05.1994] AE101..3DS |
61132-12420 |
US $291.20 |
||
|
61132
|
61132
61132-12430 Pillar, Front Body, Upper Outer Lh[05.1992 - 05.1995] AE101..SJ ｱﾘ(*RS) |
61132-12430 |
US $291.20 |
||
|
61133B
|
61133B
61133-12190 Bracket, Front Body Pillar ,outer Rh[06.1991 -] AE10#,CE10#,EE10# |
61133-12190 |
US $5.53 |
||
|
61134B
|
61134B
61133-12190 Bracket, Front Body Pillar ,outer Rh[06.1991 -] AE10#,CE10#,EE10# |
61133-12190 |
US $5.53 |
||
|
61175
|
61175
61175-12080 Reinforcement, Front Body Pillar, Inner No.2 Rh[06.1991 - 04.1998] AE10#,CE10#,EE10# |
61175-12080 |
US $19.66 |
||
|
61176A
|
61176A
61176-12080 Reinforcement, Front Body Pillar, Inner No.2 Lh[06.1991 - 04.1998] AE10#,CE10#,EE10# |
61176-12080 |
US $19.66 |
||
|
61211
|
61211
61211-12330 Rail, Roof Side, Outer Rh[05.1992 - 05.1995] AE101..3DS |
61211-12330 |
US $84.45 |
||
|
61212
|
61212
61212-12330 Rail, Roof Side, Outer Lh[05.1992 - 05.1995] AE101..3DS |
61212-12330 |
US $84.45 |
||
|
61231
|
61231
61231-12770 Rail, Roof Side, Inner Rh[05.1992 - 05.1995] AE101..3DS |
61231-12770 |
US $61.88 |
||
|
61231
|
61231
61231-12780 Rail, Roof Side, Inner Rh[05.1992 - 05.1995] AE101..3DS ｱﾘ(*MR) |
61231-12780 |
US $61.88 |
||
|
61232
|
61232
61232-12650 Rail, Roof Side, Inner Lh[05.1992 - 05.1995] AE101..3DS |
61232-12650 |
US $61.88 |
||
|
61232
|
61232
61232-12660 Rail, Roof Side, Inner Lh[05.1992 - 05.1995] AE101..3DS ｱﾘ(*MR) |
61232-12660 |
US $61.88 |
||
|
61265A
|
61265A
61265-12200 Channel, Roof Drip Side, Center Rh[05.1992 - 05.1995] AE101..3DS |
61265-12200 |
US $33.20 |
||
|
61266A
|
61266A
61266-12200 Channel, Roof Drip Side, Center Lh[05.1992 - 05.1995] AE101..3DS |
61266-12200 |
US $33.20 |
||
|
61267A
|
61267A
61267-12160 Channel, Roof Drip Side, Rear Rh[05.1992 - 05.1995] AE101..3DS |
61267-12160 |
US $28.83 |
||
|
61268
|
61268
61268-12160 Channel, Roof Drip Side, Rear Lh[05.1992 - 05.1995] AE101..3DS |
61268-12160 |
US $28.83 |
||
|
61305
|
61305
61305-12100 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[05.1992 - 05.1995] AE101..3DS |
61305-12100 |
US $54.16 |
||
|
61306
|
61306
61306-12100 Reinforce Sub-Assy, Center Body Pillar, Lower Lh[05.1992 - 05.1995] AE101..3DS |
61306-12100 |
US $54.16 |
||
|
61311B
|
61311B
61311-12220 Pillar, Center Body, Outer Rh[05.1992 - 05.1995] AE101..3DS |
61311-12220 |
US $377.10 |
||
|
61312B
|
61312B
61312-12260 Pillar, Center Body, Outer Lh[05.1992 - 05.1995] AE101..3DS |
61312-12260 |
US $377.10 |
||
|
61365A
|
61365A
61365-12160 Reinforcement, Belt Anchor To Center Pillar, No.3[05.1992 - 05.1995] AE101..3DS |
61365-12160 |
US $22.13 |
||
|
61366
|
61366
61366-12100 Reinforce, Belt Anchor To Center Piller, No.3 Lh[05.1992 - 05.1995] AE101..3DS |
61366-12100 |
US $22.13 |
||
|
61411
|
61411
61411-12560 Panel, Rocker, Outer Rh[05.1992 - 05.1994] AE101..3DS |
61411-12560 |
US $211.12 |
||
|
61411
|
61411
61411-12570 Panel, Rocker, Outer Rh[05.1992 - 05.1995] AE101..SJ ｱﾘ(*RS) |
61411-12570 |
US $211.12 |
||
|
61412
|
61412
61412-12550 Panel, Rocker, Outer Lh[05.1992 - 05.1994] AE101..3DS |
61412-12550 |
US $211.12 |
||
|
61412
|
61412
61412-12560 Panel, Rocker, Outer Lh[05.1992 - 05.1995] AE101..SJ ｱﾘ(*RS) |
61412-12560 |
US $211.12 |
||
|
61611
|
61611
61601-1E924 Panel, Quarter, Rh[05.1992 - 05.1994] AE101..3DS |
61601-1E924 |
US $618.80 |
||
|
61611
|
61611
61601-1E925 Panel, Quarter, Rh[05.1992 - 05.1994] AE101..3DS ｱﾘ(*RS) |
61601-1E925 |
US $618.80 |
||
|
61612
|
61612
61602-1E930 Panel, Quarter, Lh[05.1992 - 05.1994] AE101..3DS |
61602-1E930 |
US $618.80 |
||
|
61612
|
61612
61602-1E931 Panel, Quarter, Lh[05.1992 - 05.1994] AE101..3DS ｱﾘ(*RS) |
61602-1E931 |
US $618.80 |
||
|
61621D
|
61621D
61621-12907 Trough, Back Door Opening, Rh[05.1992 - 05.1995] AE101..3DS |
61621-12907 |
US $59.40 |
||
|
61622D
|
61622D
61622-12907 Trough, Back Door Opening, Lh[05.1992 - 05.1995] AE101..3DS |
61622-12907 |
US $59.40 |
||
|
61631A
|
61631A
61631-12210 Panel, Quarter Wheel House, Outer Rh[06.1991 - 05.1995] AE10#,CE100,104,EE101..3DS,4DS |
61631-12210 |
US $160.16 |
||
|
61632A
|
61632A
61632-12210 Panel, Quarter Wheel House, Outer Lh[06.1991 - 05.1995] AE10#,CE100,104,EE101..3DS,4DS |
61632-12210 |
US $160.16 |
||
|
61633A
|
61633A
61607-12560 Panel, Quarter Wheel House, Inner Rh[05.1992 - 05.1995] AE101..3DS |
61607-12560 |
US $279.55 |
||
|
61634A
|
61634A
61608-12540 Panel, Quarter Wheel House, Inner Lh[05.1992 - 05.1995] AE101..3DS |
61608-12540 |
US $279.55 |
||
|
61667C
|
61667C
61667-12050 Seal, Qaurter Panel, No.1[05.1992 - 01.1994] AE101..3DS |
61667-12050 |
US $5.10 |
||
|
61667D
|
61667D
61667-12050 Seal, Qaurter Panel, No.1[05.1992 - 05.1995] AE101..3DS |
61667-12050 |
US $5.10 |
||
|
61713B
|
61713B
61713-12090 Reinforce, Roof Side, Outer Rh[05.1992 - 05.1995] AE101..3DS |
61713-12090 |
US $16.89 |
||
|
61714B
|
61714B
61714-12080 Reinforce, Roof Side, Outer Lh[05.1992 - 05.1995] AE101..3DS |
61714-12080 |
US $16.89 |
||
|
61731B
|
61731B
61731-12590 Panel, Roof Side, Inner Rh[05.1992 - 05.1995] AE101..3DS; AE101..3DS..GT ｱﾘ(*66 & *SSS) |
61731-12590 |
US $165.98 |
||
|
61731B
|
61731B
61731-12610 Panel, Roof Side, Inner Rh[05.1992 - 05.1995] AE101..3DS ｱﾘ(*MR) |
61731-12610 |
US $165.98 |
||
|
61732B
|
61732B
61732-12550 Panel, Roof Side, Inner Lh[05.1992 - 05.1995] AE101..3DS; AE101..3DS..GT ｱﾘ(*66 & *SSS) |
61732-12550 |
US $165.98 |
||
|
61732B
|
61732B
61732-12570 Panel, Roof Side, Inner Lh[05.1992 - 05.1995] AE101..3DS..GT ｱﾘ(*66 & *SSS & *MR) OR ｱﾘ(*66 & *MR); AE101..SJ ｱﾘ(*66 & *MR) |
61732-12570 |
US $165.98 |
||
|
61733A
|
61733A
61733-12903 Panel, Roof Side, Inner Front Rh[05.1992 - 05.1995] AE101..3DS |
61733-12903 |
US $62.90 |
||
|
61734A
|
61734A
61734-12903 Panel, Roof Side, Inner Front Lh[05.1992 - 05.1995] AE101..3DS |
61734-12903 |
US $62.90 |
||
|
61743A
|
61743A
61743-12040 Reinforcement, Back Door Opening Side, Rh[05.1992 - 05.1995] AE101..3DS |
61743-12040 |
US $39.17 |
||
|
61744A
|
61744A
61744-12040 Reinforcement, Back Door Opening Side, Lh[05.1992 - 05.1995] AE101..3DS |
61744-12040 |
US $39.17 |
||
|
61747
|
61747
61747-12901 Brace, Roof Side Inner To Wheel House, Rh[05.1992 - 05.1995] AE101..3DS |
61747-12901 |
US $96.10 |
||
|
61748C
|
61748C
61748-12901 Brace, Roof Side Inner To Wheel House, Lh[05.1992 - 05.1995] AE101..3DS |
61748-12901 |
US $96.10 |
||
|
61764A
|
61764A
61764-12060 Plate, Quarter Window Lock Gusset[05.1992 - 05.1995] AE101..3DS |
61764-12060 |
US $6.41 |
||
|
61764C
|
61764C
61765-12070 Plate, Quarter Window Lock Gusset[05.1992 - 05.1995] AE101..3DS |
61765-12070 |
US $6.41 |
||
|
61766B
|
61766B
61766-12270 Reinforcement, Belt Anchor To Roof Side, Inner Rh[05.1992 - 05.1995] AE101..3DS |
61766-12270 |
US $18.35 |
||
|
61767B
|
61767B
61767-12230 Reinforcement, Belt Anchor To Roof Side, Inner Lh[05.1992 - 05.1995] AE101..3DS |
61767-12230 |
US $18.35 |
||
|
61771B
|
61771B
61771-12040 Frame, Back Door Opening Upper Corner, Rh[05.1992 - 05.1995] AE101..3DS |
61771-12040 |
US $34.51 |
||
|
61772B
|
61772B
61772-12040 Frame, Back Door Opening Upper Corner, Lh[05.1992 - 05.1995] AE101..3DS |
61772-12040 |
US $34.51 |
||
|
61815B
|
61815B
61815-32020 Cover, Roof Side, Inner Upper Rh[05.1992 - 05.1995] AE101..3DS |
61815-32020 |
US $10.19 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1992 - 05.1995] AE101..3DS ｱﾘ(*MR) |
61824-12040 |
US $1.89 |
||
|
61824C
|
61824C
61826-12020 Pad, Noise Shutter, No.1[05.1992 - 05.1995] AE101..3DS |
61826-12020 |
US $2.04 |
||
|
61825A
|
61825A
61825-12040 Plate, Noise Control, No.2[05.1992 - 05.1995] AE101..3DS |
61825-12040 |
US $19.66 |
||
|
61825C
|
61825C
61815-32020 Cover, Roof Side, Inner Upper Rh[06.1991 - 01.1994] AE10#,CE10#,EE10# |
61815-32020 |
US $10.19 |
||
|
61826D
|
61826D
61824-12040 Plate, Noise Control, No.1[05.1992 - 05.1995] AE101..3DS ｱﾘ(*MR) |
61824-12040 |
US $1.89 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095001784
|
9095001784
90950-01784 New Genuine Part |
90950-01784 |
US $3.04 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
