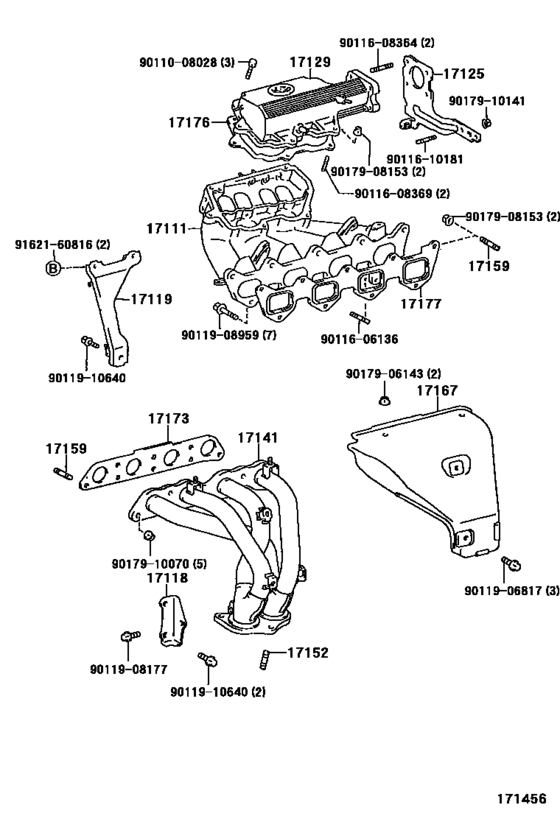

Manifold ([07.1997 - 07.1998] (9707-9807)4AFE..TUR) Diagram Toyota COROLLA
- Year
- 1994 - 1998
- Sales region
- General
- Frame
- AE101
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- TUR
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1994
- To
- 07.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-02030
Manifold, Intake
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17101-02030 |
— | ||
|
17118
|
17118
17118-02030
Stay, Manifold
[07.1997 - 05.1999] 4AFE..AE101..TUR |
17118-02030 |
— | ||
|
17118
|
17118
17118-02040
Stay, Manifold
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17118-02040 |
— | ||
|
17119
|
17119
17012-02010
Stay, Manifold, No.2
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17012-02010 |
— | ||
|
17125
|
17125
17125-02020
Stay, Surge Tank, No.1
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17125-02020 |
— | ||
|
17129
|
17129
17109-02010
Tank, Intake Air Surge
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17109-02010 |
— | ||
|
17141
|
17141
17141-02040
Manifold, Exhaust
[07.1997 - 05.1999] 4AFE..AE101..TUR |
17141-02040 |
— | ||
|
17141
|
17141
17141-02050
Manifold, Exhaust
[09.1994 - 07.1997] 4AFE..AE101..TUR |
17141-02050 |
— | ||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1994 - 09.1995] 4AF#,7AFE..AE101,102 |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[09.1994 - 09.1995] 4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
92112-60825 |
from US $1.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[09.1994 - 09.1995] 4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17167
|
17167
17167-02030
Insulator, Exhaust Manifold Heat, No.1
[07.1997 - 05.1999] 4AFE..AE101..TUR |
17167-02030 |
— | ||
|
17167
|
17167
17167-02040
Insulator, Exhaust Manifold Heat, No.1
[09.1994 - 09.1995] 4AFE..AE101..TUR |
17167-02040 |
— | ||
|
17173
|
17173
17173-02030
Gasket, Exhaust Manifold To Head
[12.1994 - 09.1995] 4AFE..AE101..TUR |
17173-02030 |
— | ||
|
17173
|
17173
17173-15040 Gasket, Exhaust Manifold To Head[09.1994 - 12.1994] 4AF#,5AFE,7AFE..AE10# |
17173-15040 |
from US $22.64 |
||
|
17176
|
17176
17176-02010
Gasket, Air Surge Tank To Intake Manifold
[12.1994 - 09.1995] 4AFE..AE101..TUR |
17176-02010 |
— | ||
|
17176
|
17176
17176-15010 Gasket, Air Surge Tank To Intake Manifold[09.1994 - 12.1994] 4AFE,5AFE,7AFE..AE10# |
17176-15010 |
from US $7.08 |
||
|
17177
|
17177
17171-15030 Gasket, Intake Manifold To Head, No.1[09.1994 - 09.1995] 4AFE,5AFE,7AFE..AE10# |
17171-15030 |
from US $10.86 |
||
|
9011008028
|
9011008028
90110-08028 New Genuine Part |
90110-08028 |
US $1.14 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011608364
|
9011608364
90116-08364 New Genuine Part |
90116-08364 |
US $2.97 |
||
|
9011608369
|
9011608369
90116-08369
New Genuine Part
|
90116-08369 |
— | ||
|
9011610181
|
9011610181
90116-10181 New Genuine Part |
90116-10181 |
US $1.75 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
| replacement | |||||
|
9011906817
|
9011906817
90119-A0044 New Genuine Part |
90119-A0044 |
US $2.97 |
||
|
9011908177
|
9011908177
90119-08177
New Genuine Part
|
90119-08177 |
— | ||
| replacement | |||||
|
9011908177
|
9011908177
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
