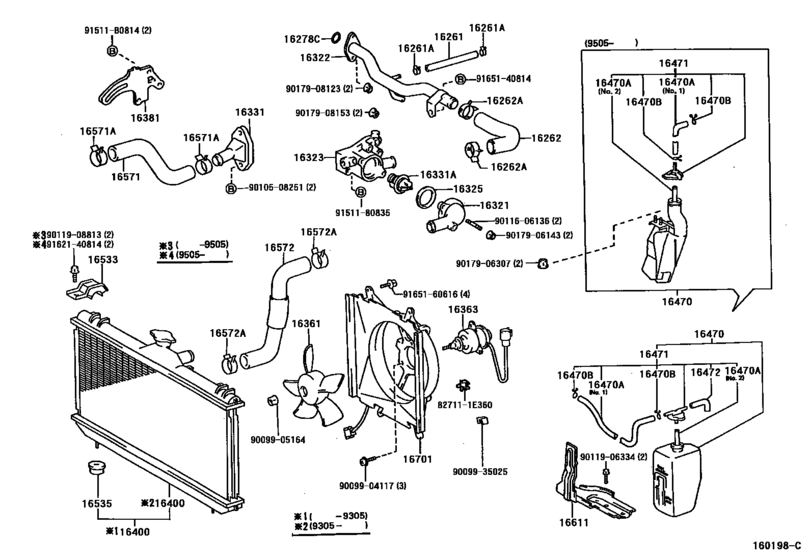

Radiator & Water Outlet ([05.1992 - ] (9205- )4AF) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
99555-10300
Hose, Water, No.1
[05.1992 -] 4AF..AE101 *H,L=220 |
99555-10300 |
— | ||
| replacement | |||||
|
16261
|
16261
99555-10500 Hose, Water, No.1[05.1992 -] 4AF..AE101 *H,L=220 |
99555-10500 |
from US $17.48 |
||
|
16261A
|
16261A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[05.1992 -] 4AF..AE101 |
96135-41300 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[05.1992 -] 4AF..AE101 |
96135-51300 |
from US $1.92 |
||
|
16262
|
16262
16262-15030 Hose, Water Inlet[05.1992 - 05.1998] 4AF..AE101 |
16262-15030 |
from US $22.68 |
||
|
16262A
|
16262A
90467-36001 Clip(For Water Inlet Hose)[05.1992 - 05.1998] 4AF..AE101 |
90467-36001 |
US $7.46 |
||
|
16278C
|
16278C
96711-24035
Ring, O(For Water Pump)
[05.1992 - 02.1995] 4AF..AE101 |
96711-24035 |
— | ||
| replacement | |||||
|
16278C
|
16278C
96761-24035 Ring, O(For Water Pump)[05.1992 - 02.1995] 4AF..AE101 |
96761-24035 |
from US $2.85 |
||
|
16278C
|
16278C
96761-24035 Ring, O(For Water Pump)[02.1995 -] 4AF..AE101 |
96761-24035 |
from US $2.85 |
||
|
16321
|
16321
16321-15020 Inlet, Water[08.1991 - 05.1998] 4AF,4AGE..AE101 |
16321-15020 |
from US $38.30 |
||
|
16322
|
16322
16322-15041
Pipe, Water Inlet
[05.1992 - 05.1998] 4AF..AE101 |
16322-15041 |
— | ||
|
16323
|
16323
16323-15060
Housing, Water Inlet
[05.1992 - 05.1998] 4AF..AE101 |
16323-15060 |
— | ||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[08.1991 - 01.1993] 4AGE..AE101 THERMOSTAT SIDE; 2E,3E,4EFE..EE10#; 4AF#,5AFE..AE10# |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[08.1991 - 01.1993] 4AGE..AE101 THERMOSTAT SIDE; 2E,3E,4EFE..EE10#; 4AF#,5AFE..AE10# |
16325-63011 |
from US $4.91 |
||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[01.1993 -] 2C..CE100; 4AF#,5AFE,7AFE..AE10#..GCC,GEN |
16325-63011 |
from US $4.91 |
||
|
16331
|
16331
16331-15080 Outlet, Water[08.1991 -] 4AF..AE101..5F;4AFE,5AFE,7AFE..AE10#..GCC,GEN |
16331-15080 |
from US $11.58 |
||
|
16331A
|
16331A
90916-03046 Thermostat[08.1991 - 08.1996] 4AF#,5AFE,7AFE..AE10#..GCC,GEN *WAX 82-95 |
90916-03046 |
from US $23.38 |
||
|
16361
|
16361
16361-11010 Fan[08.1991 - 09.1994] 4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
16361-11010 |
US $61.65 |
||
|
16363
|
16363
16363-15120 Motor, Cooling Fan[08.1991 - 09.1994] 4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
16363-15120 |
US $306.60 |
||
|
16381
|
16381
16381-15060 Bar, Fan Belt Adjusting[05.1992 - 05.1998] 4AF..AE101 |
16381-15060 |
US $32.47 |
||
|
16400
|
16400
16400-15480 Radiator Assy[05.1992 - 04.1993] 4AF..AE101..LHD..5F *ME |
16400-15480 |
US $458.64 |
||
| replacements | |||||
|
16400
|
16400
16400-16680
Radiator Assy
[05.1992 - 04.1993] 4AF..AE101..LHD..5F *ME |
16400-16680 |
— | ||
|
16400
|
16400
90916-04002 Support, Radiator, Lower[05.1992 - 04.1993] 4AF..AE101..LHD..5F *ME |
90916-04002 |
from US $10.67 |
||
|
16400
|
16400
16400-15481 Radiator Assy[05.1993 - 07.1997] 4AF..AE101..LHD..5F..(GL,STD) *ME |
16400-15481 |
US $528.53 |
||
| replacement | |||||
|
16400
|
16400
16400-16680
Radiator Assy
[05.1993 - 07.1997] 4AF..AE101..LHD..5F..(GL,STD) *ME |
16400-16680 |
— | ||
|
16400
|
16400
16400-15530 Radiator Assy[08.1991 - 05.1993] 4AF#,4AGE..AE101..5F..GEN; 2E,4EFE..EE100,101,105..MTM..GEN |
16400-15530 |
US $458.64 |
||
| replacements | |||||
|
16400
|
16400
16400-16680
Radiator Assy
[08.1991 - 05.1993] 4AF#,4AGE..AE101..5F..GEN; 2E,4EFE..EE100,101,105..MTM..GEN |
16400-16680 |
— | ||
|
16400
|
16400
90916-04002 Support, Radiator, Lower[08.1991 - 05.1993] 4AF#,4AGE..AE101..5F..GEN; 2E,4EFE..EE100,101,105..MTM..GEN |
90916-04002 |
from US $10.67 |
||
|
16400
|
16400
16400-15531
Radiator Assy
[05.1993 - 05.1995] 4AF#,4AGE..AE101..5F..(GEN,TUR); 2E,4EFE..EE100,101,105..MTM..(GEN,TUR) |
16400-15531 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-16680
Radiator Assy
[05.1993 - 05.1995] 4AF#,4AGE..AE101..5F..(GEN,TUR); 2E,4EFE..EE100,101,105..MTM..(GEN,TUR) |
16400-16680 |
— | ||
|
16470
|
16470
16470-15080 Tank Assy, Radiator Reserve[08.1991 - 05.1993] 2E,3E,4EFE..EE10#; 4AF#,4AGE,5AFE..AE10# |
16470-15080 |
US $38.88 |
||
| replacement | |||||
|
16470
|
16470
16470-15081 Tank Assy, Radiator Reserve[08.1991 - 05.1993] 2E,3E,4EFE..EE10#; 4AF#,4AGE,5AFE..AE10# |
16470-15081 |
US $40.88 |
||
|
16470
|
16470
16470-15081 Tank Assy, Radiator Reserve[05.1993 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
16470-15081 |
US $40.88 |
||
|
16470A
|
16470A
16471-15080
Hose Or Pipe(For Radiator Reserve Tank)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
16471-15080 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
90445-12078 |
from US $7.10 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90467-11085 |
from US $0.86 |
||
|
16471
|
16471
16405-15090
Cap Sub-Assy, Reserve Tank
[08.1991 - 05.1993] 2E,3E,4EFE..EE10#; 4AF#,4AGE,5AFE..AE10# |
16405-15090 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-15091
Cap Sub-Assy, Reserve Tank
[08.1991 - 05.1993] 2E,3E,4EFE..EE10#; 4AF#,4AGE,5AFE..AE10# |
16405-15091 |
— | ||
|
16471
|
16471
16405-15091
Cap Sub-Assy, Reserve Tank
[05.1993 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
16405-15091 |
— | ||
|
16472
|
16472
16477-15080
Hose, Breather
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
16477-15080 |
— | ||
|
16533
|
16533
16533-02020
Support, Radiator, Upper
[01.1993 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# (L) |
16533-02020 |
— | ||
|
16533
|
16533
16533-15120 Support, Radiator, Upper[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# (J) |
16533-15120 |
from US $30.13 |
||
|
16535
|
16535
16535-74010 Support, Radiator, Lower[05.1992 - 06.1992] 4AF..AE101;4AGE,5AFE..AE10#..5F; 4AFE..AE101;5AFE..AE100..ATM MARUYASU |
16535-74010 |
US $11.79 |
||
| replacement | |||||
|
16535
|
16535
90916-04002 Support, Radiator, Lower[05.1992 - 06.1992] 4AF..AE101;4AGE,5AFE..AE10#..5F; 4AFE..AE101;5AFE..AE100..ATM MARUYASU |
90916-04002 |
from US $10.67 |
||
|
16571
|
16571
16571-15160 Hose, Radiator, Inlet[08.1991 - 08.1992] 4AF#,5AFE..AE10# |
16571-15160 |
from US $23.91 |
||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90467-34004 |
from US $5.75 |
||
|
16572
|
16572
16572-16160
Hose, Radiator, Outlet
[05.1992 - 05.1998] 4AF..AE101 |
16572-16160 |
— | ||
|
16572A
|
16572A
90467-34003
Clip(For Oil Return Hose)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90467-34003 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90467-34004 |
from US $5.75 |
||
|
16611
|
16611
16611-15020
Bracket(For Radiator Reserve Tank)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
16611-15020 |
— | ||
|
16701
|
16701
16711-15260 Shroud Sub-Assy, Fan[08.1991 - 08.1993] 5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
16711-15260 |
US $110.66 |
||
| replacement | |||||
|
16701
|
16701
16711-15261 Shroud Sub-Assy, Fan[08.1991 - 08.1993] 5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
16711-15261 |
US $109.20 |
||
|
16701
|
16701
16711-15261 Shroud Sub-Assy, Fan[08.1993 - 09.1994] 5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
16711-15261 |
US $109.20 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $0.96 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.87 |
||
|
9009935025
|
9009935025
90099-35025
New Genuine Part
|
90099-35025 |
— | ||
|
9010508251
|
9010508251
90105-08251 New Genuine Part |
90105-08251 |
US $2.56 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011906334
|
9011906334
90119-06334 New Genuine Part |
90119-06334 |
US $1.92 |
||
|
9011908813
|
9011908813
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.56 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
|
9017906307
|
9017906307
90179-06307 New Genuine Part |
90179-06307 |
US $1.60 |
||
| replacement | |||||
|
9017906307
|
9017906307
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $1.03 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
