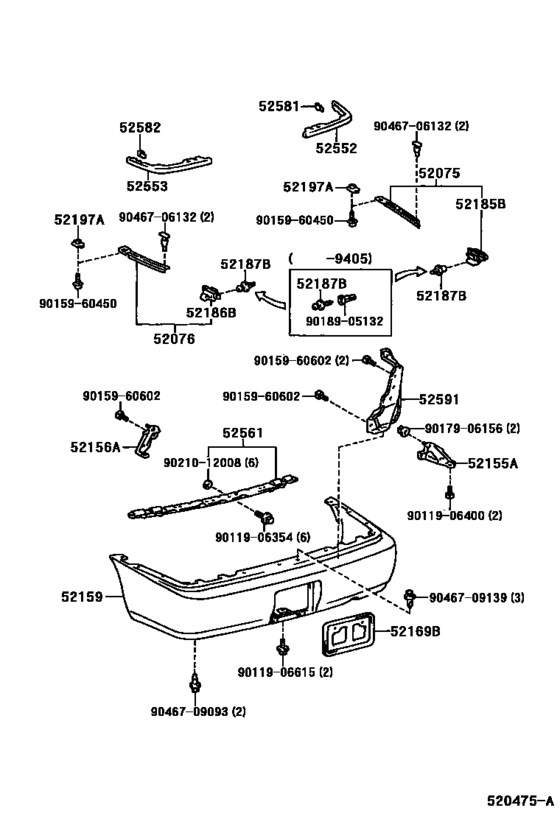

Rear Bumper & Bumper Stay ([08.1991 - ] (9108- )SED) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52075
|
52075
52075-12030 Retainer Sub-Assy, Rear Bumper Side, Rh[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52075-12030 |
US $22.71 |
||
|
52076
|
52076
52076-12030 Retainer Sub-Assy, Rear Bumper Side, Lh[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52076-12030 |
US $22.71 |
||
|
52155A
|
52155A
52155-12210 Support, Rear Bumper Side, Rh[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52155-12210 |
US $13.10 |
||
|
52156A
|
52156A
52156-12200
Support, Rear Bumper Side, Lh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52156-12200 |
— | ||
|
52159
|
52159
52159-1A440 Cover, Rear Bumper[08.1991 - 11.2001] AE101,102,CE100,EE100,101..SED..(GCC,GEN) |
52159-1A440 |
US $448.45 |
||
|
52159
|
52159
52159-1A540
Cover, Rear Bumper
[05.1992 - 11.2001] AE101,CE100,EE100,101..SED..GEN W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL) |
52159-1A540 |
— | ||
|
52169B
|
52169B
52169-12020
Bracket, Rear Bumper, Center
[05.1993 - 08.1993] AE101,CE100,EE100,101..SED..GEN |
52169-12020 |
— | ||
|
52185B
|
52185B
52185-12130
Bracket, Rear Bumper Side Mounting, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52185-12130 |
— | ||
|
52186B
|
52186B
52185-12130
Bracket, Rear Bumper Side Mounting, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52185-12130 |
— | ||
|
52187B
|
52187B
52187-12140 Guide, Rear Bumper Location[08.1991 - 05.1994] AE10#,CE100,EE100,101..SED |
52187-12140 |
US $5.94 |
||
|
52187B
|
52187B
52187-12160 Guide, Rear Bumper Location[05.1994 - 09.1994] AE10#,CE100,EE100,101..SED |
52187-12160 |
US $2.62 |
||
|
52197A
|
52197A
52197-12070 Bracket, Rear Bumper Seal, Rh[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52197-12070 |
US $3.84 |
||
|
52552
|
52552
52552-12030
Filler, Rear Bumper, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52552-12030 |
— | ||
|
52553
|
52553
52553-12030
Filler, Rear Bumper, Lh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52553-12030 |
— | ||
|
52561
|
52561
52508-12030 Retainer, Rear Bumper, Upper Center[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52508-12030 |
US $61.30 |
||
|
52581
|
52581
52581-12060
Protector, Rear Bumper, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52581-12060 |
— | ||
|
52582
|
52582
52581-12060
Protector, Rear Bumper, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52581-12060 |
— | ||
|
52591
|
52591
52591-12080
Seal, Rear Bumper Side, Rh
[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
52591-12080 |
— | ||
|
9011906354
|
9011906354
90119-06354
BOLT WWASHER
|
90119-06354 |
— | ||
| replacement | |||||
|
9011906354
|
9011906354
90119-06361 BOLT WWASHER |
90119-06361 |
from US $1.28 |
||
|
9011906400
|
9011906400
90119-06400
New Genuine Part
|
90119-06400 |
— | ||
| replacement | |||||
|
9011906400
|
9011906400
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
|
9011906615
|
9011906615
90119-06615 BOLT, WWASHER |
90119-06615 |
from US $1.58 |
||
|
9015960450
|
9015960450
90159-60450 New Genuine Part |
90159-60450 |
US $1.75 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9018905132
|
9018905132
90189-05132
GROMMET
|
90189-05132 |
— | ||
|
9021012008
|
9021012008
90210-12008 WASHER |
90210-12008 |
US $1.60 |
||
|
9046706132
|
9046706132
90467-06132 CLIP |
90467-06132 |
US $1.22 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $2.57 |
||
|
9046709139
|
9046709139
90467-09139 CLIP |
90467-09139 |
from US $3.84 |
||
