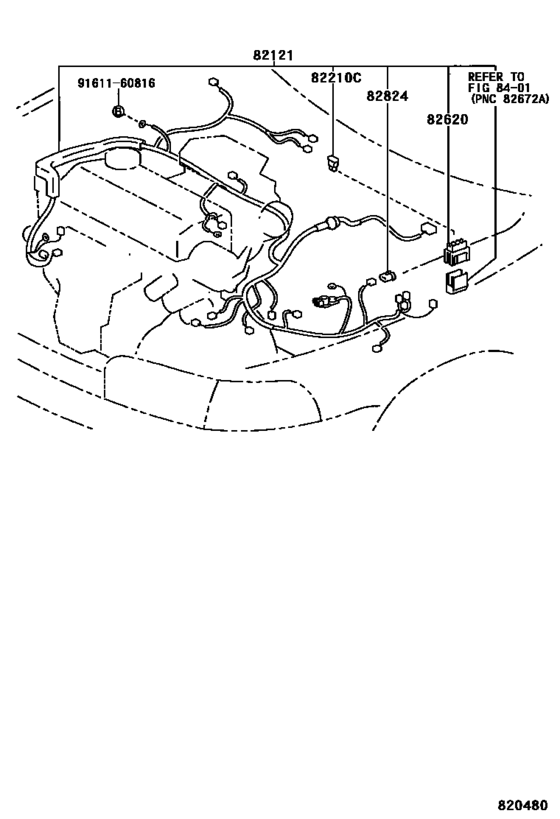

Wiring & Clamp ([05.1992 - ] ENGINE (9205- )AE101..GL,STD,XL) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-1K380 Wire, EngineENGINE [05.1992 - 05.1993] AE101..LHD..5F..(GL,STD,XL) |
82121-1K380 |
US $441.17 |
||
|
82121
|
82121
82121-1L230 Wire, Engine[05.1993 - 11.1994] AE101..LHD..5F..(GL,STD,XL) |
82121-1L230 |
US $417.87 |
||
| replacement | |||||
|
82121
|
82121
82121-1L231 Wire, Engine[05.1993 - 11.1994] AE101..LHD..5F..(GL,STD,XL) |
82121-1L231 |
US $417.87 |
||
|
82121
|
82121
82121-1L231 Wire, Engine[11.1994 - 05.1995] AE101..LHD..5F..(GL,STD,XL) |
82121-1L231 |
US $417.87 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1991 - 09.1994] AE10#,CE100,EE100,101,104,105 30A,TERMINAL:FEMALE |
90982-08188 |
from US $4.70 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[05.1992 - 05.1995] AE10#,EE101..GCC,GEN 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[08.1991 - 05.1995] EE100;AE10#,EE101,104,105..GCC,GEN 40A,TERMINAL:MALE |
90982-08257 |
US $11.20 |
||
|
82620
|
82620
82620-12150 Block Assy, Fusible Link[05.1992 - 05.1995] AE10#,EE101..GCC,GEN |
82620-12150 |
US $29.41 |
||
|
82824
|
82824
82824-20050 Connector, Wiring Harness[08.1991 - 04.1994] AE10#,EE10# |
82824-20050 |
US $12.67 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
