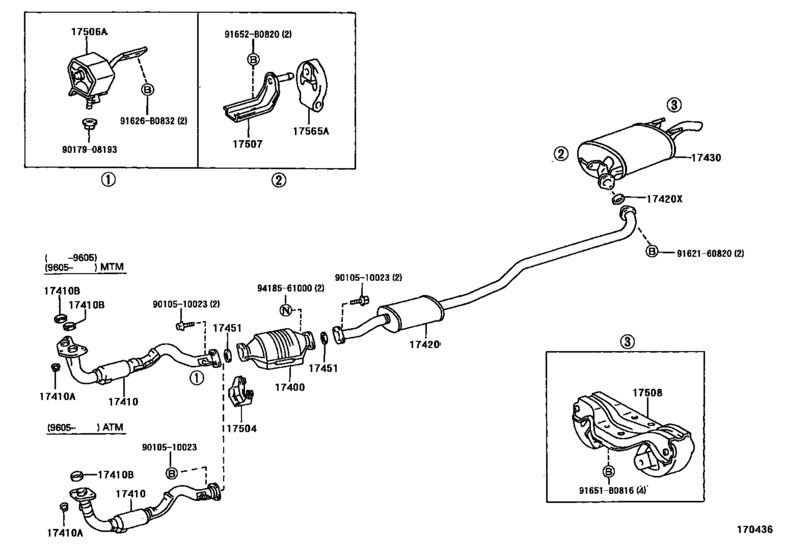

Exhaust Pipe ([05.1992 - ] (9205- )4AFE) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- AE101
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16610 Converter Assy, W/catalystW/CATALYST [05.1992 -] 4AFE..AE101 |
18450-16610 |
US $1,557.92 |
||
|
17410
|
17410
17410-1A030 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1992 - 05.1996] 4AFE..AE101 |
17410-1A030 |
US $334.88 |
||
|
17410
|
17410
17410-1A360 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1996 -] 4AFE..AE101..4FC |
17410-1A360 |
US $313.04 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1996 -] 4AFE..AE101..4FC;7AFE,2C..AE103,CE100 |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1996 -] 4AFE..AE101..4FC;7AFE,2C..AE103,CE100 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[05.1992 - 05.1996] 4AFE..AE101 |
90917-06061 |
from US $5.17 |
||
|
17410B
|
17410B
90917-06065 Gasket, Exhaust Pipe[05.1996 -] 7AFE..AE103;4AFE..AE101..4FC |
90917-06065 |
from US $4.91 |
||
|
17420
|
17420
17420-16590 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 -] 4AFE..AE101 |
17420-16590 |
US $417.87 |
||
|
17420X
|
17420X
90917-06074 Gasket, Exhaust Pipe, Center[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
90917-06074 |
from US $6.94 |
||
|
17430
|
17430
17430-11640
Pipe Assy, Exhaust, Tail
[05.1992 -] 4AFE,4EFE..AE101,EE101 |
17430-11640 |
— | ||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[05.1992 -] 4AFE..AE101 FRONT |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[05.1992 -] 4AFE..AE101 FRONT |
17451-52060 |
from US $5.48 |
||
|
17451
|
17451
90917-06057 Gasket, Exhaust Pipe, Center[05.1992 -] 4AFE..AE101 REAR |
90917-06057 |
from US $4.89 |
||
|
17504
|
17504
17504-42010 Bracket Sub-Assy, Catalytic Converter[05.1992 -] 4AFE..AE101 |
17504-42010 |
US $11.53 |
||
|
17506A
|
17506A
17506-16090 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16090 |
US $37.42 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [02.1995 - 05.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17507-15040 |
— | ||
|
17508
|
17508
17508-15050
Support Sub-Assy, Exhaust Pipe, No.3
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17508-15050 |
— | ||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-28020 |
US $7.04 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
