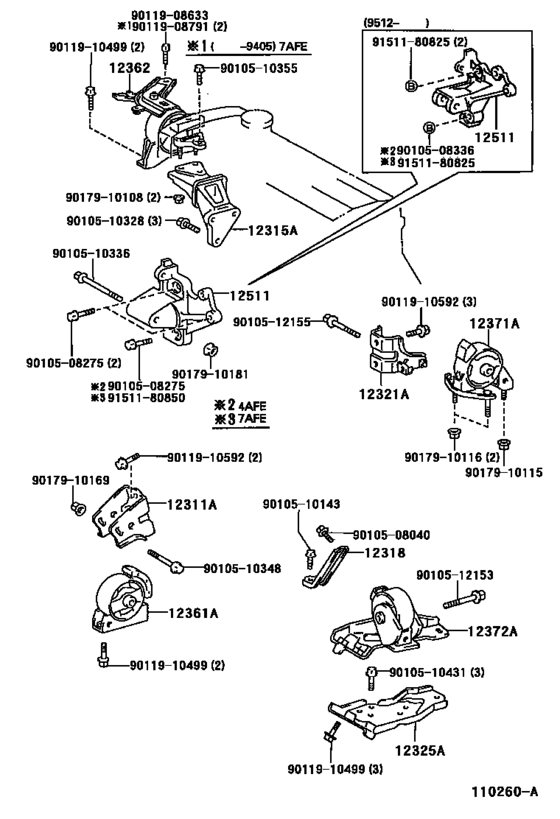

Mounting ([09.1992 - ] (9209- )4AFE,7AFE..NAP..5F) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- U.S.A.
- Frame
- AE101
- grade
- D
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1992
- To
- 08.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-02010
Bracket, Engine Mounting, Front(For Transverse Engine)
[09.1992 - 08.1997] 4AFE,7AFE..AE10#..NAP |
12311-02010 |
— | ||
|
12315A
|
12315A
12315-15080 Bracket, Engine Mounting, Rh(For Transverse Engine)[09.1992 - 06.1993] 4AFE,7AFE..AE10#..NAP |
12315-15080 |
US $80.08 |
||
| replacement | |||||
|
12315A
|
12315A
12315-15081 Bracket, Engine Mounting, Rh(For Transverse Engine)[09.1992 - 06.1993] 4AFE,7AFE..AE10#..NAP |
12315-15081 |
US $80.08 |
||
|
12315A
|
12315A
12315-15081 Bracket, Engine Mounting, Rh(For Transverse Engine)[06.1993 -] 4AFE,7AFE..AE10#..NAP |
12315-15081 |
US $80.08 |
||
|
12318
|
12318
12318-02010
Stay, Engine Mounting, Lh
[09.1992 -] 4AFE,7AFE..AE10#..NAP..5F |
12318-02010 |
— | ||
|
12321A
|
12321A
12321-15120
Bracket, Engine Mounting, Rear(For Transverse Engine)
[09.1992 - 08.1997] 4AFE,7AFE..AE10#..NAP..5F |
12321-15120 |
— | ||
|
12325A
|
12325A
12325-16120
Bracket, Engine Mounting, Lh(For Transverse Engine)
[09.1992 - 08.1997] 4AFE,7AFE..AE10#..NAP..5F |
12325-16120 |
— | ||
|
12361A
|
12361A
12361-02040
Insulator, Engine Mounting, Front(For Transverse Engine)
[09.1992 - 11.1995] 4AFE,7AFE..AE10#..NAP..5F |
12361-02040 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-02041
Insulator, Engine Mounting, Front(For Transverse Engine)
[09.1992 - 11.1995] 4AFE,7AFE..AE10#..NAP..5F |
12361-02041 |
— | ||
|
12361A
|
12361A
12361-02041
Insulator, Engine Mounting, Front(For Transverse Engine)
[11.1995 -] 4AFE,7AFE..AE10#..NAP..5F |
12361-02041 |
— | ||
|
12362
|
12362
12305-02020 Insulator, Engine Mounting, Rh(For Transverse Engine)[09.1992 - 05.1994] 4AFE..AE101..NAP |
12305-02020 |
US $269.36 |
||
| replacement | |||||
|
12362
|
12362
12305-02040
Insulator, Engine Mounting, Rh(For Transverse Engine)
[09.1992 - 05.1994] 4AFE..AE101..NAP |
12305-02040 |
— | ||
|
12371A
|
12371A
12371-02050
Insulator, Engine Mounting, Rear
[09.1992 -] 4AFE,7AFE..AE10#..NAP..5F |
12371-02050 |
— | ||
|
12372A
|
12372A
12372-02060
Insulator, Engine Mounting, Lh(For Transverse Engine)
[09.1992 -] 4AFE,7AFE..AE10#..NAP..(3FC,5F) |
12372-02060 |
— | ||
|
12511
|
12511
12511-15050 Bracket, Alternator, No.1[09.1992 - 12.1995] 4AFE..AE101..NAP |
12511-15050 |
US $136.86 |
||
|
12511
|
12511
12511-15060 Bracket, Alternator, No.1[12.1995 -] 4AFE..AE101..NAP |
12511-15060 |
US $112.11 |
||
|
9010508040
|
9010508040
90105-08040
Bolt(For Plate Bolt Lock)
|
90105-08040 |
— | ||
| replacement | |||||
|
9010508040
|
9010508040
91641-H0820 Bolt |
91641-H0820 |
from US $0.90 |
||
|
9010508275
|
9010508275
90105-08275 New Genuine Part |
90105-08275 |
US $5.77 |
||
|
9010508336
|
9010508336
90105-08336 Bolt(For Alternator) |
90105-08336 |
US $2.33 |
||
| replacement | |||||
|
9010508336
|
9010508336
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010510143
|
9010510143
90105-10143 New Genuine Part |
90105-10143 |
US $1.89 |
||
| replacement | |||||
|
9010510143
|
9010510143
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.08 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010510336
|
9010510336
90105-10336 Bolt(For Alternator) |
90105-10336 |
US $4.96 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010510431
|
9010510431
90105-10431 New Genuine Part |
90105-10431 |
US $2.72 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908791
|
9011908791
90119-08791 Bolt(For Transaxle & Engine Setting) |
90119-08791 |
US $2.18 |
||
| replacement | |||||
|
9011908791
|
9011908791
91641-H0820 Bolt |
91641-H0820 |
from US $0.90 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017910116
|
9017910116
90179-10116 New Genuine Part |
90179-10116 |
US $3.20 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151180850
|
9151180850
91511-80850 New Genuine Part |
91511-80850 |
US $2.62 |
||
| replacement | |||||
|
9151180850
|
9151180850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
