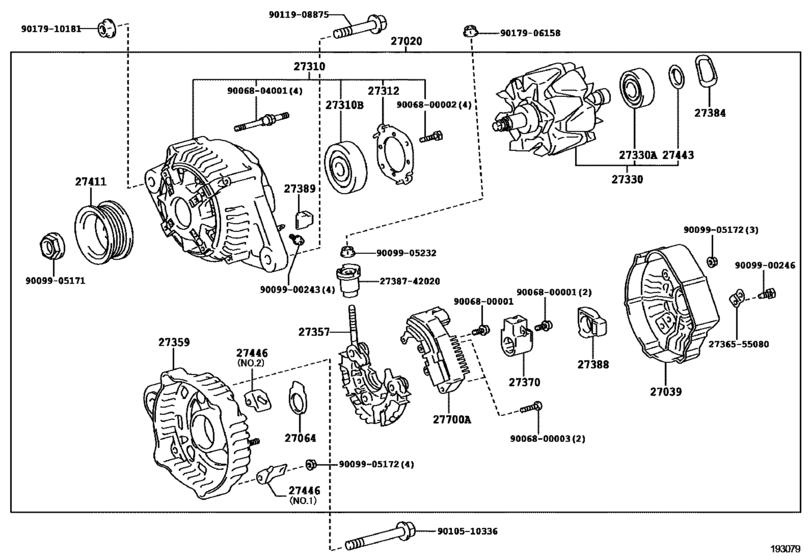

Alternator ([09.1992 - ] 12V 70A (9209- )4AFE,7AFE..NAP..CND) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- U.S.A.
- Frame
- AE101
- grade
- D
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1992
- To
- 08.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-02040 Alternator Assy[09.1992 -] 4AFE,7AFE..AE10#..NAP..USA 12V 70A,NIPPONDENSO TENESSEE; 4AFE,7AFE..AE10#..NAP..CND 12V 70A |
27060-02040 |
US $1,233.23 |
||
|
27039
|
27039
27039-03050 Cover, Alternator Rear EndALTERNATOR REAR END [09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27039-03050 |
US $18.35 |
||
|
27064
|
27064
27064-0A020
Seal, Alternator Plate
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27064-0A020 |
— | ||
| replacement | |||||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-02040
Frame Assy, Drive End, Alternator
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27310-02040 |
— | ||
|
27310B
|
27310B
90068-10002
Bearing(For Alternator Drive End Frame)
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
90068-10002 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-0A020 Plate, Retainer[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27312-0A020 |
US $6.55 |
||
|
27330
|
27330
27330-03050 Rotor Assy, AlternatorALTERNATOR [09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27330-03050 |
US $330.51 |
||
| replacement | |||||
|
27330
|
27330
27330-0D010
Rotor Assy, Alternator
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27330-0D010 |
— | ||
|
27330A
|
27330A
90068-10001
Bearing(For Alternator Rotor)
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
90068-10001 |
— | ||
|
27357
|
27357
27357-0A020 Holder, Alternator, W/rectifierALTERNATOR, W/RECTIFIER [09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27357-0A020 |
US $94.64 |
||
|
27359
|
27359
27359-02040
Frame, Alternator Rectifier End
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27359-02040 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND; 7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA; 4AFE..AE101..NAP..D..USA TAIWAN SPEC |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND; 7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA; 4AFE..AE101..NAP..D..USA TAIWAN SPEC |
27384-50030 |
from US $2.80 |
||
|
27388
|
27388
27388-0A020 Cover, Alternator Brush[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27388-0A020 |
US $7.28 |
||
| replacement | |||||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-0A020 Insulator, Terminal[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27389-0A020 |
US $4.37 |
||
| replacement | |||||
|
27389
|
27389
27389-42010
Insulator, Terminal
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27389-42010 |
— | ||
|
27411
|
27411
27411-03050 Pulley, AlternatorALTERNATOR [09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27411-03050 |
US $43.68 |
||
|
27443
|
27443
27443-0A020
Cover, Alternator Bearing
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27443-0A020 |
— | ||
| replacement | |||||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-15220
Clip, Alternator Cord
[09.1992 -] 4AFE,7AFE..AE10#..NAP..USA NO.2; 4AFE,7AFE..AE10#..NAP..CND NO.2 |
27446-15220 |
— | ||
|
27446
|
27446
27466-15170
Clip, Alternator Cord
[09.1992 -] 4AFE,7AFE..AE10#..NAP..CND NO.1 |
27466-15170 |
— | ||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[09.1992 -] 4AFE,7AFE..AE10#..NAP..USA *87; 4AFE,7AFE..AE10#..NAP..CND |
27700-74030 |
US $258.59 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738742020
|
2738742020
27387-42020
Insulator, Terminal
|
27387-42020 |
— | ||
|
9006800001
|
9006800001
90068-00001 New Genuine Part |
90068-00001 |
US $0.87 |
||
|
9006800002
|
9006800002
90068-00002 New Genuine Part |
90068-00002 |
US $1.16 |
||
|
9006800003
|
9006800003
90068-00003 New Genuine Part |
90068-00003 |
US $1.60 |
||
|
9006804001
|
9006804001
90068-04001 Bolt, Compressor, No.1 |
90068-04001 |
US $8.30 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010510336
|
9010510336
90105-10336 Bolt(For Alternator) |
90105-10336 |
US $4.96 |
||
|
9011908875
|
9011908875
90119-08875 Bolt(For Alternator) |
90119-08875 |
US $3.04 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
