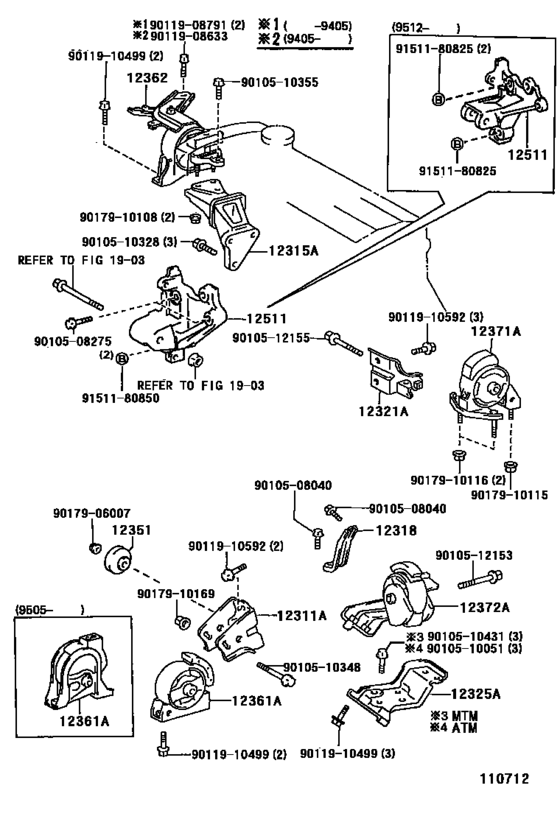

Mounting ([09.1993 - 11.1997] (9309-9711)7AFE) Diagram Toyota COROLLA
- Year
- 1996 - 1998
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- SED
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1996
- To
- 05.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-15130 Bracket, Engine Mounting, Front(For Transverse Engine)[09.1995 - 05.1999] 4AF#,7AFE..AE10# |
12311-15130 |
US $30.05 |
||
|
12315A
|
12315A
12315-15081 Bracket, Engine Mounting, Rh(For Transverse Engine)[09.1995 - 10.1997] 4AFE,7AFE..AE10# |
12315-15081 |
US $80.08 |
||
|
12318
|
12318
12318-15080 Stay, Engine Mounting, Lh[11.1997 - 05.1999] 4AF#,7AFE..AE10#..5F |
12318-15080 |
US $11.07 |
||
|
12318
|
12318
12318-16110
Stay, Engine Mounting, Lh
[09.1995 - 11.1997] 4AF#,7AFE..AE10#..5F |
12318-16110 |
— | ||
|
12321A
|
12321A
12321-15120
Bracket, Engine Mounting, Rear(For Transverse Engine)
[09.1995 - 05.1999] 4AF#,7AFE..AE10#..5F |
12321-15120 |
— | ||
|
12325A
|
12325A
12325-15080
Bracket, Engine Mounting, Lh(For Transverse Engine)
[11.1997 - 05.1999] 4AF#,7AFE..AE10#..5F |
12325-15080 |
— | ||
|
12325A
|
12325A
12325-16120
Bracket, Engine Mounting, Lh(For Transverse Engine)
[09.1995 - 11.1997] 4AF#,7AFE..AE10#..5F |
12325-16120 |
— | ||
|
12351
|
12351
12351-15060 Damper, Engine Mounting[09.1995 - 11.1997] 4AF#,7AFE..AE10# |
12351-15060 |
US $8.21 |
||
|
12361A
|
12361A
12361-15170
Insulator, Engine Mounting, Front(For Transverse Engine)
[09.1995 - 01.1998] 4AF#,7AFE..AE10#..5F |
12361-15170 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-15171 Insulator, Engine Mounting, Front(For Transverse Engine)[09.1995 - 01.1998] 4AF#,7AFE..AE10#..5F |
12361-15171 |
from US $46.36 |
||
|
12361A
|
12361A
12361-15171 Insulator, Engine Mounting, Front(For Transverse Engine)[01.1998 - 05.1999] 4AF#,7AFE..AE10#..5F |
12361-15171 |
from US $46.36 |
||
|
12362
|
12362
12305-15040 Insulator, Engine Mounting, Rh(For Transverse Engine)[09.1995 - 05.1999] 4AFE,7AFE..AE10# |
12305-15040 |
US $94.72 |
||
|
12371A
|
12371A
12371-15240
Insulator, Engine Mounting, Rear
[09.1995 - 12.1996] 4AF#,7AFE..AE10#..5F |
12371-15240 |
— | ||
| replacement | |||||
|
12371A
|
12371A
12371-15241 Insulator, Engine Mounting, Rear[09.1995 - 12.1996] 4AF#,7AFE..AE10#..5F |
12371-15241 |
US $109.52 |
||
|
12371A
|
12371A
12371-15241 Insulator, Engine Mounting, Rear[12.1996 - 05.1999] 4AF#,7AFE..AE10#..5F |
12371-15241 |
US $109.52 |
||
|
12372A
|
12372A
12372-15171 Insulator, Engine Mounting, Lh(For Transverse Engine)[09.1995 - 11.1997] 4AF#,7AFE..AE10#..3FC,5F |
12372-15171 |
from US $120.74 |
||
|
12372A
|
12372A
12372-15200 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.1997 - 05.1999] 4AF#,7AFE..AE10#..5F |
12372-15200 |
from US $101.34 |
||
|
12511
|
12511
12511-16110 Bracket, Alternator, No.1[12.1995 - 05.1998] 7AFE..AE102 |
12511-16110 |
US $138.32 |
||
|
9010508040
|
9010508040
90105-08040
Bolt(For Plate Bolt Lock)
|
90105-08040 |
— | ||
| replacement | |||||
|
9010508040
|
9010508040
91641-H0820 Bolt |
91641-H0820 |
from US $0.92 |
||
|
9010508275
|
9010508275
90105-08275 New Genuine Part |
90105-08275 |
US $5.77 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010510431
|
9010510431
90105-10431 New Genuine Part |
90105-10431 |
US $2.72 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908791
|
9011908791
90119-08791 Bolt(For Transaxle & Engine Setting) |
90119-08791 |
US $2.18 |
||
| replacement | |||||
|
9011908791
|
9011908791
91641-H0820 Bolt |
91641-H0820 |
from US $0.92 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017910116
|
9017910116
90179-10116 New Genuine Part |
90179-10116 |
US $3.20 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151180850
|
9151180850
91511-80850 New Genuine Part |
91511-80850 |
US $2.62 |
||
| replacement | |||||
|
9151180850
|
9151180850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
