Fuel Injection System ([05.1996 - ] (9605- )4AFE..AE109) Diagram Toyota COROLLA
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE109
- grade
- DX
- body
- V
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1996
- To
- 06.2002
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?

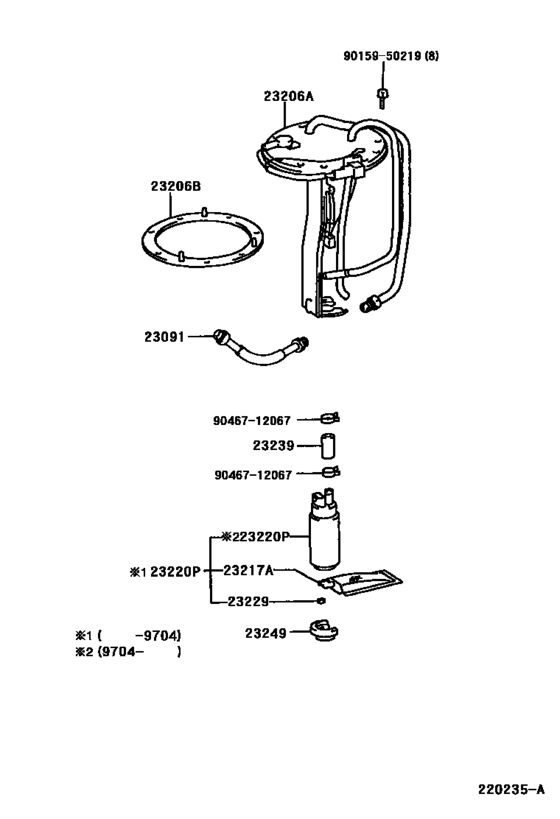

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
77209-13030 Tube Sub-Assy, Fuel Pump[05.1996 -] 4AFE..AE109 |
77209-13030 |
US $28.97 |
||
|
23206A
|
23206A
77203-13120 Bracket, Fuel Pump[05.1996 - 06.2002] 4AFE..AE109 |
77203-13120 |
US $84.45 |
||
|
23206B
|
23206B
77169-12020 Gasket, Fuel Pump Bracket[05.1996 -] 4AFE..AE109 |
77169-12020 |
US $6.29 |
||
|
23217A
|
23217A
23217-15050 Filter, Fuel Pump[05.1996 -] 4AFE..AE109 |
23217-15050 |
US $6.41 |
||
|
23220P
|
23220P
23220-74020
Pump Assy, Fuel
[05.1995 - 04.1997] 4AFE..AE104,109 |
23220-74020 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[05.1995 - 04.1997] 4AFE..AE104,109 |
23217-0D070 |
US $13.12 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[05.1995 - 04.1997] 4AFE..AE104,109 |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[05.1995 - 04.1997] 4AFE..AE104,109 |
23229-16010 |
from US $0.92 |
||
|
23220P
|
23220P
23221-11060 Pump Assy, Fuel[04.1997 -] 4EFE,5EFE..EE10#; 4AFE,5AFE..AE100,109 |
23221-11060 |
US $416.42 |
||
| replacement | |||||
|
23220P
|
23220P
23221-22140 Pump Assy, Fuel[04.1997 -] 4EFE,5EFE..EE10#; 4AFE,5AFE..AE100,109 |
23221-22140 |
from US $308.30 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[06.1991 -] 4EFE,5EFE..EE101,102,103,104; 4A#,5AFE..AE10# |
23229-16010 |
from US $0.92 |
||
|
23239
|
23239
23239-11010 Hose, Fuel Pump[07.1994 -] 4EFE,5EFE..EE10#; 4A#,5AFE..AE10# |
23239-11010 |
US $10.88 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[06.1991 -] 4EFE,5EFE..EE101,102,103,104; 4A#,5AFE..AE10# |
23249-74610 |
from US $8.56 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712067
|
9046712067
90467-12067 Clip(For Fuel Pump Hose) |
90467-12067 |
from US $1.27 |
||
