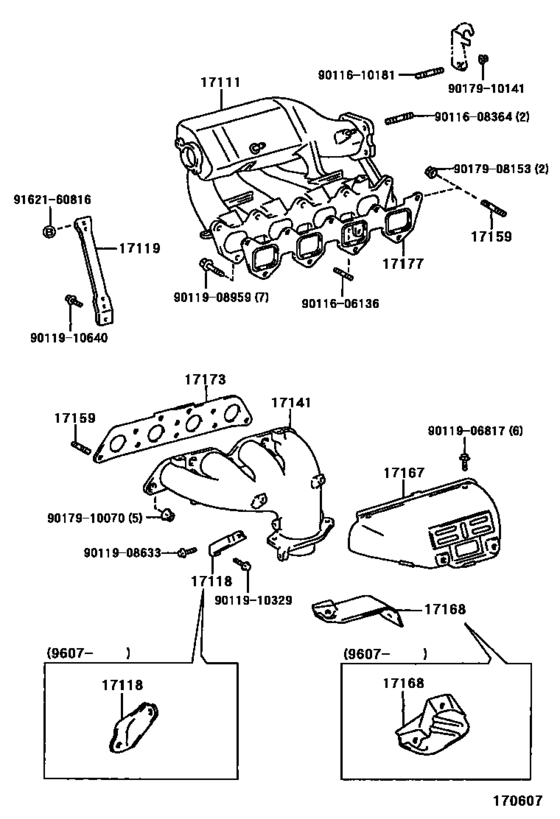

Manifold ([05.1995 - ] (9505- )5AFE) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE110
- grade
- DX
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-15070 Manifold, Intake[05.1995 - 04.1997] 5AFE..AE110 |
17101-15070 |
US $550.37 |
||
|
17118
|
17118
17118-15080 Stay, Manifold[05.1995 - 07.1996] 5AFE..AE110 |
17118-15080 |
US $20.53 |
||
|
17118
|
17118
17118-15081 Stay, Manifold[07.1996 - 04.1997] 5AFE..AE110 |
17118-15081 |
US $16.02 |
||
|
17119
|
17119
17139-15050 Stay, Manifold, No.2[05.1995 - 04.1997] 5AFE..AE110 |
17139-15050 |
US $26.79 |
||
|
17141
|
17141
17141-15150 Manifold, Exhaust[05.1995 - 07.1996] 5AFE..AE110 |
17141-15150 |
US $329.06 |
||
| replacements | |||||
|
17141
|
17141
17118-15081 Stay, Manifold[05.1995 - 07.1996] 5AFE..AE110 |
17118-15081 |
US $16.02 |
||
|
17141
|
17141
17141-15151 Manifold, Exhaust[05.1995 - 07.1996] 5AFE..AE110 |
17141-15151 |
US $331.97 |
||
|
17141
|
17141
17168-15031 Insulator, Exhaust Manifold Heat, No.2[05.1995 - 07.1996] 5AFE..AE110 |
17168-15031 |
US $13.40 |
||
|
17141
|
17141
17141-15151 Manifold, Exhaust[07.1996 - 04.1997] 5AFE..AE110 |
17141-15151 |
US $331.97 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1995 - 04.1997] 4AFE,5AFE..AE11# INTAKE MANIFOLD |
92112-60825 |
US $2.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[05.1995 - 04.1997] 4AFE,5AFE..AE11# EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17167
|
17167
17167-15090 Insulator, Exhaust Manifold Heat, No.1[05.1995 - 04.1997] 5AFE..AE110 |
17167-15090 |
US $66.68 |
||
|
17168
|
17168
17168-15030 Insulator, Exhaust Manifold Heat, No.2[05.1995 - 07.1996] 5AFE..AE110 |
17168-15030 |
US $15.29 |
||
|
17168
|
17168
17168-15031 Insulator, Exhaust Manifold Heat, No.2[07.1996 - 04.1997] 5AFE..AE110 |
17168-15031 |
US $13.40 |
||
|
17173
|
17173
17173-15040 Gasket, Exhaust Manifold To Head[05.1995 - 04.1997] 4AFE,5AFE..AE11# |
17173-15040 |
from US $22.64 |
||
|
17177
|
17177
17171-15030 Gasket, Intake Manifold To Head, No.1[05.1995 - 04.1997] 4AFE,5AFE..AE11# |
17171-15030 |
from US $10.86 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011608364
|
9011608364
90116-08364 New Genuine Part |
90116-08364 |
US $2.97 |
||
|
9011610181
|
9011610181
90116-10181 New Genuine Part |
90116-10181 |
US $1.75 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
| replacement | |||||
|
9011906817
|
9011906817
90119-A0044 New Genuine Part |
90119-A0044 |
US $2.97 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
