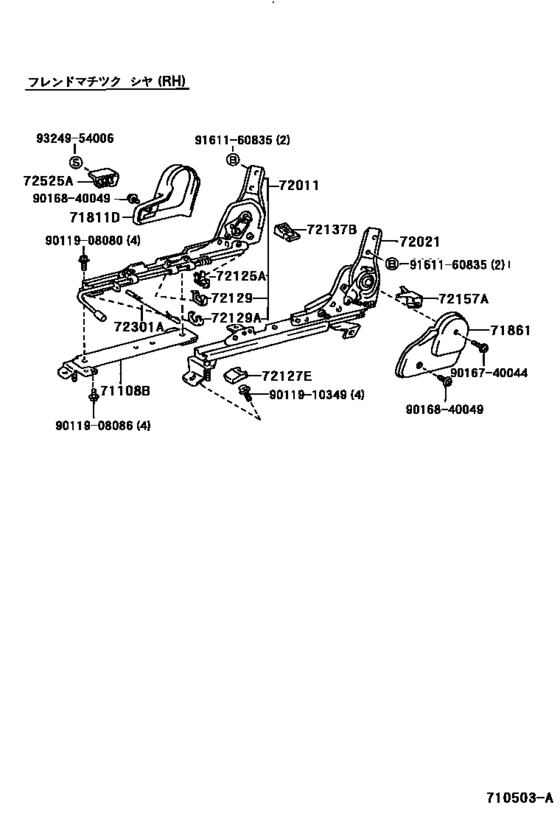

Front Seat & Seat Track ([05.1995 - ] ﾌﾚﾝﾄﾞﾏﾁｯｸｼｬ(ﾗｲﾄ) (9505- )AE114..4FC..SESAL ; (9505- )AE110. .4FC..LX,SESAL,XESAL) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE110
- grade
- LX
- body
- SED
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71108B
|
71108B
71108-12010 Leg Sub-Assy, Front Seat, Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
71108-12010 |
US $24.61 |
||
|
71811D
|
71811D
71811-12260-P0 Shield, Front Seat Cushion, Rh[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL SHADOW GRAY,TRIM16 |
71811-12260-P0 |
US $30.87 |
||
|
71811D
|
71811D
71811-12410-B1 Shield, Front Seat Cushion, Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
71811-12410-B1 |
US $31.16 |
||
| replacement | |||||
|
71811D
|
71811D
71811-12410-E1 Shield, Front Seat Cushion, Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
71811-12410-E1 |
US $31.01 |
||
|
71811D
|
71811D
71811-16230-B7 Shield, Front Seat Cushion, Rh[04.1997 - 08.2000] AE110,114..DX,LX;EE111..3FC..(DX,LX) MD.GRAY,TRIM1# |
71811-16230-B7 |
US $44.70 |
||
|
71861
|
71861
71861-12220-P0 Shield, Front Seat Cushion, Inner Rh[05.1995 - 04.1997] AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
71861-12220-P0 |
US $20.82 |
||
|
71861
|
71861
71861-12270-B0 Shield, Front Seat Cushion, Inner Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
71861-12270-B0 |
US $31.16 |
||
| replacement | |||||
|
71861
|
71861
71861-12270-E1 Shield, Front Seat Cushion, Inner Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
71861-12270-E1 |
US $31.16 |
||
|
71861
|
71861
71861-20130-B5 Shield, Front Seat Cushion, Inner Rh[04.1997 - 08.2000] AE110,114..DX,LX;EE111..3FC..(DX,LX) MD.GRAY,TRIM1# |
71861-20130-B5 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[04.1997 - 08.2000] AE110,114..DX,LX;EE111..3FC..(DX,LX) MD.GRAY,TRIM1# |
71861-20130-B6 |
US $24.46 |
||
|
72011
|
72011
72010-12620 Adjuster Sub-Assy, Front Seat, Outer Rh[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL |
72010-12620 |
US $310.13 |
||
|
72011
|
72011
72011-12250 Adjuster Sub-Assy, Front Seat, Outer Rh[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL |
72011-12250 |
US $285.38 |
||
|
72011
|
72011
72011-12280 Adjuster Sub-Assy, Front Seat, Outer Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
72011-12280 |
US $308.67 |
||
|
72021
|
72021
72021-12220 Adjuster Sub-Assy, Front Seat, Inner Rh[04.1997 - 08.2000] AE110,CE110,113,EE111..DX,LX,XESAL |
72021-12220 |
US $285.38 |
||
|
72021
|
72021
72021-12320 Adjuster Sub-Assy, Front Seat, Inner Rh[05.1995 - 05.1996] AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
72021-12320 |
US $282.46 |
||
|
72125A
|
72125A
72125-10010 Cover, Seat Track, Upper Rear[04.1997 - 08.2000] AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
72125-10010 |
US $2.18 |
||
|
72127E
|
72127E
72127-12010-C0
Cover, Seat Track Bracket, Inner Front
[05.1995 - 04.1997] AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4#; AE11#,CE11#,EE111..DX,LX,SCRU BLACK,TRIM1# |
72127-12010-C0 |
— | ||
|
72129
|
72129
72129-12010 Protector, Seat Track Lower Rail, No.1[04.1997 - 08.2000] AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
72129-12010 |
US $5.24 |
||
|
72129A
|
72129A
72129-20020 Protector, Seat Track Lower Rail, No.1[04.1997 - 08.2000] AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
72129-20020 |
US $3.20 |
||
|
72137B
|
72137B
72137-12030-C0
Cover, Seat Track, Rh
[05.1995 - 04.1997] AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4#; AE11#,CE11#,EE111..DX,LX,SCRU BLACK,TRIM1# |
72137-12030-C0 |
— | ||
|
72137B
|
72137B
72137-12070-C0 Cover, Seat Track, Rh[04.1997 - 08.2000] AE11#..DX,GT,LX;EE111..3FC..(DX,LX);CE113,116,EE111..4FC,5F BLACK,TRIM1# |
72137-12070-C0 |
US $12.67 |
||
|
72157A
|
72157A
72157-12030-C0
Cover, Seat Track Bracket, Inner Rh
[05.1995 - 04.1997] AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4#; AE110,111,CE110,EE111..DX,LX,SCRU BLACK,TRIM1# |
72157-12030-C0 |
— | ||
|
72301A
|
72301A
72301-12160 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL |
72301-12160 |
US $2.91 |
||
|
72301A
|
72301A
72301-12230 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1995 - 05.1996] AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
72301-12230 |
US $4.37 |
||
|
72525A
|
72525A
72525-12090-P0 Handle, Reclining Adjuster Release, Rh[05.1995 - 05.1996] AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
72525-12090-P0 |
US $12.67 |
||
| replacement | |||||
|
72525A
|
72525A
72525-12090-C0 Handle, Reclining Adjuster Release (Black)[05.1995 - 05.1996] AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
72525-12090-C0 |
US $13.10 |
||
|
72525A
|
72525A
72525-12100-P0 Handle, Reclining Adjuster Release, Rh[05.1995 - 04.1997] AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
72525-12100-P0 |
US $6.81 |
||
|
72525A
|
72525A
72525-16010-B9 Handle, Reclining Adjuster Release, Rh[04.1997 - 08.2000] AE110,114..DX,LX;EE111..3FC..(DX,LX) MD.GRAY,TRIM1# |
72525-16010-B9 |
US $16.60 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-B0
Handle, Reclining Adjuster Release, Rh
[04.1997 - 08.2000] AE110,114..DX,LX;EE111..3FC..(DX,LX) MD.GRAY,TRIM1# |
72525-16010-B0 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
| replacement | |||||
|
9011910349
|
9011910349
91651-G1020 BOLT |
91651-G1020 |
from US $1.11 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9016840049
|
9016840049
90168-40049 SCREW |
90168-40049 |
from US $0.68 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.76 |
||
