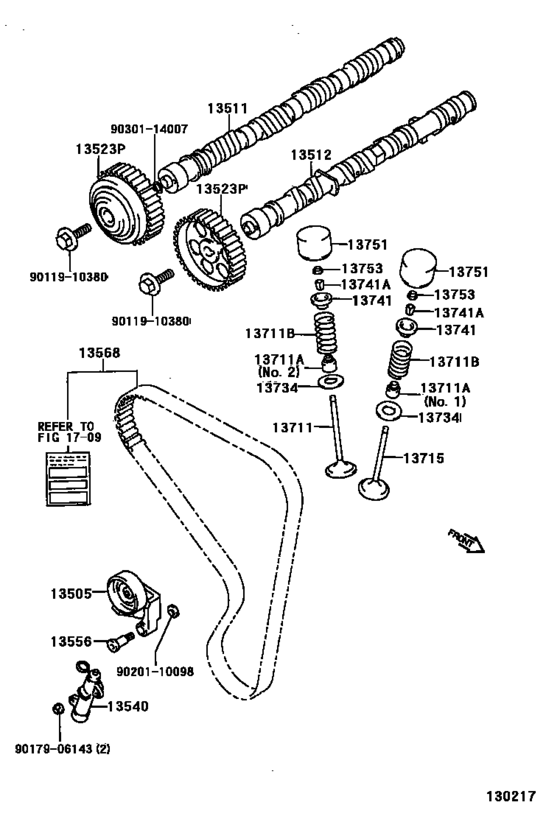

Camshaft & Valve ([04.1997 - ] (9704- )4AGE) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13505
|
13505
13505-16030 Idler Sub-Assy, Timing Belt, No.1[04.1997 - 08.2000] 4AGE..AE111 |
13505-16030 |
US $56.39 |
||
|
13511
|
13511
13501-16070 Camshaft[04.1997 - 08.2000] 4AGE..AE111 |
13501-16070 |
US $436.80 |
||
|
13512
|
13512
13502-16050 Camshaft, No.2[04.1997 - 08.2000] 4AGE..AE111 |
13502-16050 |
US $436.80 |
||
|
13523P
|
13523P
13050-16020 Pulley, Camshaft Timing[04.1997 - 08.2000] 4AGE..AE111 INTAKE SIDE |
13050-16020 |
US $892.82 |
||
|
13523P
|
13523P
13523-16080
Pulley, Camshaft Timing
[04.1997 - 08.2000] 4AGE..AE111 EXHAUST SIDE |
13523-16080 |
— | ||
|
13540
|
13540
13540-16010 Tensioner Assy, Chain, No.1[04.1997 - 08.2000] 4AGE..AE111 |
13540-16010 |
US $115.44 |
||
|
13556
|
13556
13556-16010 Shaft, Timing Belt Idler[04.1997 - 08.2000] 4AGE..AE111 |
13556-16010 |
US $22.71 |
||
|
13568
|
13568
13568-19185 Belt, Timing[04.1997 - 08.2000] 4AGE..AE111 |
13568-19185 |
from US $68.27 |
||
|
13711
|
13711
13711-16100
Valve, Intake
[04.1997 - 01.2000] 4AGE..AE111 |
13711-16100 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-16110 Valve, Intake[04.1997 - 01.2000] 4AGE..AE111 |
13711-16110 |
US $29.79 |
||
|
13711
|
13711
13711-16110 Valve, Intake[01.2000 - 08.2000] 4AGE..AE111 |
13711-16110 |
US $29.79 |
||
|
13711A
|
13711A
90913-02092
Seal Or Ring, O(For Valve Stem Oil)
[04.1997 - 08.2000] 4AGE..AE111 ＮＯ．１ |
90913-02092 |
— | ||
| replacement | |||||
|
13711A
|
13711A
90913-02128 Seal, Exhaust Valve Stem Oil[04.1997 - 08.2000] 4AGE..AE111 ＮＯ．１ |
90913-02128 |
from US $4.32 |
||
|
13711A
|
13711A
90913-02093 Seal Or Ring, O(For Valve Stem Oil)[04.1997 - 08.2000] 4AGE..AE111 ＮＯ．２ |
90913-02093 |
from US $4.48 |
||
|
13711B
|
13711B
90501-27018
Spring, Compression(For Inner)
[04.1997 - 08.2000] 4AGE..AE111 |
90501-27018 |
— | ||
|
13715
|
13715
13715-16080 Valve, Exhaust[04.1997 - 01.2000] 4AGE..AE111 |
13715-16080 |
US $68 |
||
| replacement | |||||
|
13715
|
13715
13715-16090 Valve, Exhaust[04.1997 - 01.2000] 4AGE..AE111 |
13715-16090 |
US $75.48 |
||
|
13715
|
13715
13715-16090 Valve, Exhaust[01.2000 - 08.2000] 4AGE..AE111 |
13715-16090 |
US $75.48 |
||
|
13734
|
13734
13734-16020 Seat, Valve Spring[04.1997 - 08.2000] 4AGE..AE111 |
13734-16020 |
US $2.08 |
||
|
13741
|
13741
13741-16020 Retainer, Valve Spring[04.1997 - 08.2000] 4AGE..AE111 |
13741-16020 |
US $5.12 |
||
|
13741A
|
13741A
90913-03026 Lock, Valve Spring Retainer[04.1997 - 08.2000] 4AGE..AE111 |
90913-03026 |
US $1.92 |
||
|
13751
|
13751
13751-16020
Lifter, Valve
[04.1997 - 08.2000] 4AGE..AE111 |
13751-16020 |
— | ||
|
13753
|
13753
13753-16780 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．７０ |
13753-16780 |
US $8.80 |
||
|
13753
|
13753
13753-16800 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．７４ |
13753-16800 |
US $8.80 |
||
|
13753
|
13753
13753-16820 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．７８ |
13753-16820 |
US $8.80 |
||
|
13753
|
13753
13753-16840 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．８２ |
13753-16840 |
US $8.80 |
||
|
13753
|
13753
13753-16860 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．８６ |
13753-16860 |
US $8.80 |
||
|
13753
|
13753
13753-16880 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．９０ |
13753-16880 |
US $8.80 |
||
|
13753
|
13753
13753-1A010 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．９２ |
13753-1A010 |
US $7.86 |
||
|
13753
|
13753
13753-1A050 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝１．９６ |
13753-1A050 |
US $8.80 |
||
|
13753
|
13753
13753-1A090 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．００ |
13753-1A090 |
US $8.80 |
||
|
13753
|
13753
13753-1A130 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．０４ |
13753-1A130 |
US $8.80 |
||
|
13753
|
13753
13753-1A170 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．０８ |
13753-1A170 |
US $8.80 |
||
|
13753
|
13753
13753-1A200 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．１２ |
13753-1A200 |
US $8.80 |
||
|
13753
|
13753
13753-1A220 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．１６ |
13753-1A220 |
US $8.80 |
||
|
13753
|
13753
13753-1A240 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．２０ |
13753-1A240 |
US $7.02 |
||
|
13753
|
13753
13753-1A260 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．２４ |
13753-1A260 |
US $6.87 |
||
|
13753
|
13753
13753-1A280 Shim, Valve Adjusting[04.1997 - 08.2000] 4AGE..AE111 厚さ＝２．２８ |
13753-1A280 |
US $7.43 |
||
|
9011910380
|
9011910380
90119-10380 BOLT |
90119-10380 |
US $3.68 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9020110098
|
9020110098
90201-10098 Washer, Plate(For Distributor Drive Gear) |
90201-10098 |
US $3.68 |
||
|
9030114007
|
9030114007
90301-14007 RING O |
90301-14007 |
US $4.16 |
||
