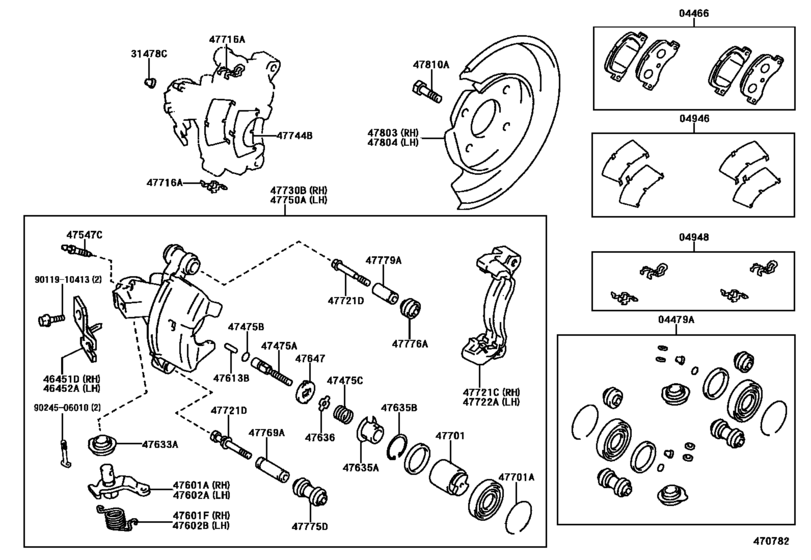

Rear Disc Brake Caliper & Dust Cover ([04.1997 - ] (9704- )AE111) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-12040 Pad Kit, Disc Brake, Rear[04.1997 - 08.2000] AE111 |
04466-12040 |
US $74.78 |
||
|
04479A
|
04479A
04479-12190 Cylinder Kit, Disc Brake, Rear[04.1997 - 08.2000] AE111 |
04479-12190 |
US $50.01 |
||
|
04946
|
04946
04946-12010 Shim Kit, Anti Squeal(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
04946-12010 |
US $15.50 |
||
|
04948
|
04948
04948-12020 Fitting Kit, Disc Brake, Rear[04.1997 - 08.2000] AE111 |
04948-12020 |
from US $21.65 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[04.1997 - 08.2000] AE111 |
31478-30010 |
from US $1.66 |
||
|
46451D
|
46451D
46451-12030 Bracket, Parking Brake Cable Support, Rh[04.1997 - 08.2000] AE111 |
46451-12030 |
US $13.80 |
||
|
46452A
|
46452A
46452-12020 Bracket, Parking Brake Cable Support, Lh[04.1997 - 08.2000] AE111 |
46452-12020 |
US $13.80 |
||
|
47475A
|
47475A
47475-12030 Bolt, Pad Adjusting(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47475-12030 |
US $19.76 |
||
|
47475B
|
47475B
90301-09007 Ring, O(For Rear Disc Brake Pad Adjusting Bolt)[04.1997 - 08.2000] AE111 |
90301-09007 |
US $4.16 |
||
|
47475C
|
47475C
90501-23051 Spring, Compression(For Pad Adjusting Bolt)[04.1997 - 08.2000] AE111 |
90501-23051 |
US $3.84 |
||
|
47547C
|
47547C
47547-20010 Plug, Bleeder(For Release Cylinder)[04.1997 - 08.2000] AE111 |
47547-20010 |
from US $3.20 |
||
|
47601A
|
47601A
47601-12030 Crank Sub-Assy, Parking Brake, Rh[04.1997 - 08.2000] AE111 |
47601-12030 |
US $8.74 |
||
|
47601F
|
47601F
90508-32021 Spring, Torsion(For Parking Brake Crank Rh)[04.1997 - 08.2000] AE111 |
90508-32021 |
US $3.14 |
||
|
47602A
|
47602A
47602-12030
Crank Sub-Assy, Parking Brake, Lh
[04.1997 - 08.2000] AE111 |
47602-12030 |
— | ||
|
47602B
|
47602B
90508-32020
Spring, Torsion(For Parking Brake Crank Rh)
[04.1997 - 08.2000] AE111 |
90508-32020 |
— | ||
|
47613B
|
47613B
47613-12020 Strut, Parking Brake(For Rear Brake)[04.1997 - 08.2000] AE111 |
47613-12020 |
US $9.76 |
||
|
47633A
|
47633A
47633-12010 Boot, Parking Brake Crank[04.1997 - 08.2000] AE111 |
47633-12010 |
US $11.53 |
||
|
47635A
|
47635A
47635-12020 Retainer, Adjusting Bolt Spring(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47635-12020 |
US $7.43 |
||
|
47635B
|
47635B
90521-32002 Ring(For Rear Brake Adjusting Bolt Spring Retainer)[04.1997 - 08.2000] AE111 |
90521-32002 |
US $1.31 |
||
|
47636
|
47636
47636-12010 Plate, Adjusting Bolt Spring(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47636-12010 |
US $6.24 |
||
|
47647
|
47647
47647-12020 Stopper, Automatic Adjust Bolt(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47647-12020 |
US $3.32 |
||
|
47701
|
47701
47701-12030 Piston Sub-Assy, Rear Disc Brake[04.1997 - 08.2000] AE111 |
47701-12030 |
US $74.95 |
||
|
47701A
|
47701A
90522-43004 Ring, Set(For Disc Brake Piston, Rear)[04.1997 - 08.2000] AE111 |
90522-43004 |
US $1.75 |
||
|
47716A
|
47716A
47716-12020 Plate, Pad Support, No.1(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47716-12020 |
US $5.07 |
||
|
47721C
|
47721C
47721-12190
Mounting, Rear Disc Brake Cylinder, Rh
[04.1997 - 08.2000] AE111 |
47721-12190 |
— | ||
|
47721D
|
47721D
90109-08098 Bolt(For Rear Disc Brake Cylinder Mouting)[04.1997 - 08.2000] AE111 ＊８−１．２５ＰＸ５６−１５ |
90109-08098 |
from US $4.04 |
||
|
47721D
|
47721D
90119-08431 Bolt, Hexagon(For Front Disc Brake Torque Plate)[04.1997 - 08.2000] AE111 ＊８−１．２５ＰＸ６２−２０ |
90119-08431 |
from US $1.17 |
||
|
47722A
|
47722A
47721-12190
Mounting, Rear Disc Brake Cylinder, Rh
[04.1997 - 08.2000] AE111 |
47721-12190 |
— | ||
|
47730B
|
47730B
47730-12460
Cylinder Assy, Rear Disc Brake, Rh
[04.1997 - 08.2000] AE111 |
47730-12460 |
— | ||
|
47744B
|
47744B
47744-12080
Shim, Anti-Squeal(For Rear Disc Brake)
[05.1997 - 08.2000] AE111 |
47744-12080 |
— | ||
|
47750A
|
47750A
47750-12460
Cylinder Assy, Disc Brake, Rear Lh
[04.1997 - 08.2000] AE111 |
47750-12460 |
— | ||
|
47769A
|
47769A
47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[04.1997 - 08.2000] AE111 |
47769-28010 |
from US $7.14 |
||
|
47775D
|
47775D
47775-14010 Boot, Bush Dust(For Front Disc Brake)[04.1997 - 08.2000] AE111 |
47775-14010 |
US $12.48 |
||
|
47776A
|
47776A
47776-12020 Boot, Main Pin(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47776-12020 |
from US $0.92 |
||
|
47779A
|
47779A
47779-12010 Bush, Cylinder Slide, No.2(For Rear Disc Brake)[04.1997 - 08.2000] AE111 |
47779-12010 |
from US $7.98 |
||
|
47803
|
47803
47803-12060 Cover Sub-Assy, Disc Brake Dust, Rear Rh[04.1997 - 08.2000] AE111 |
47803-12060 |
US $19.15 |
||
|
47804
|
47804
47804-12060 Cover Sub-Assy, Disc Brake Dust, Rear Lh[04.1997 - 08.2000] AE111 |
47804-12060 |
US $19.15 |
||
|
47810A
|
47810A
90105-10167 Bolt, Hexagon(For Rear Caliper)[04.1997 - 08.2000] AE111 |
90105-10167 |
US $2.62 |
||
|
9011910413
|
9011910413
90119-10413 New Genuine Part |
90119-10413 |
US $2.91 |
||
|
9024506010
|
9024506010
90245-06010 New Genuine Part |
90245-06010 |
US $3.20 |
