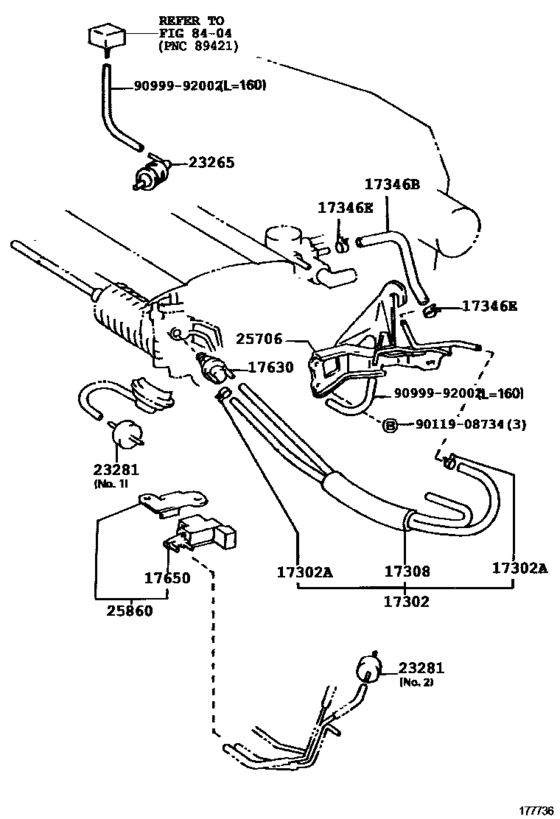

Vacuum Piping ([04.1997 - ] (9704- )4AGE) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-16040 Hose Sub-Assy, Air[04.1997 - 08.2000] 4AGE..AE111 |
17302-16040 |
US $38.61 |
||
|
17302A
|
17302A
96132-51000 Clip Or Clamp(For Ventilation Hose)[04.1997 - 08.2000] 4A#,5AFE..AE11#..GT,LX,SESAL,XESAL; 5AFE..AE110..DX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
96132-51000 |
from US $1.48 |
||
|
17308
|
17308
17308-16040 Hose Sub-Assy, Vacuum(For Idle-Up)[04.1997 - 08.2000] 4AGE..AE111 |
17308-16040 |
US $109.20 |
||
|
17346B
|
17346B
17346-16020 Hose, Air, No.6[04.1997 - 08.2000] 4AGE..AE111 |
17346-16020 |
US $10.05 |
||
|
17346E
|
17346E
90467-10099
Clip Or Clamp(For Ventilation Hose)
[09.1997 - 08.2000] 4AGE..AE111 |
90467-10099 |
— | ||
| replacement | |||||
|
17346E
|
17346E
96132-51000 Clip Or Clamp(For Ventilation Hose)[09.1997 - 08.2000] 4AGE..AE111 |
96132-51000 |
from US $1.48 |
||
|
17346E
|
17346E
96132-41000 Clip, No.1(For Idle-Up Hose)[04.1997 - 09.1997] 4AGE..AE111 |
96132-41000 |
from US $1.28 |
||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[04.1997 - 08.2000] 4AGE..AE111 |
17630-16040 |
US $112.48 |
||
|
17650
|
17650
90910-12110
Valve Assy, Vacuum Switching
[04.1997 - 10.1998] 4AGE..AE111 |
90910-12110 |
— | ||
| replacement | |||||
|
17650
|
17650
90910-12218
Valve Assy, Vacuum Switching
[04.1997 - 10.1998] 4AGE..AE111 |
90910-12218 |
— | ||
|
17650
|
17650
90910-12218
Valve Assy, Vacuum Switching
[10.1998 - 08.2000] 4AGE..AE111 |
90910-12218 |
— | ||
|
23265
|
23265
90917-11009
Filter, Gas, No.1
[04.1997 - 08.2000] 4AGE..AE111 |
90917-11009 |
— | ||
|
23281
|
23281
90925-01091 Valve, Vacuum Transmitting, No.1[04.1997 - 08.2000] 4AGE..AE111 ＮＯ．１ |
90925-01091 |
US $29.35 |
||
|
23281
|
23281
90925-01095
Valve, Vacuum Transmitting, No.1
[04.1997 - 08.2000] 4AGE..AE111 ＮＯ．２ |
90925-01095 |
— | ||
|
25706
|
25706
25706-16420 Pipe Sub-Assy, Vacuum Transmitting, No.1[04.1997 - 08.2000] 4AGE..AE111 |
25706-16420 |
US $216.94 |
||
|
25860
|
25860
25860-16141 Valve Assy, Vacuum Switching, No.1[04.1997 - 10.1998] 4AGE..AE111 |
25860-16141 |
US $107.74 |
||
| replacement | |||||
|
25860
|
25860
25860-16142
Valve Assy, Vacuum Switching, No.1
[04.1997 - 10.1998] 4AGE..AE111 |
25860-16142 |
— | ||
|
25860
|
25860
25860-16142
Valve Assy, Vacuum Switching, No.1
[10.1998 - 08.2000] 4AGE..AE111 |
25860-16142 |
— | ||
|
9011908734
|
9011908734
90119-08734 Bolt, W/washer(For Transmission Case Cover) |
90119-08734 |
US $1.89 |
||
| replacement | |||||
|
9011908734
|
9011908734
90119-08373 Bolt, W/washer(For Transmission Case Cover) |
90119-08373 |
US $2.24 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
