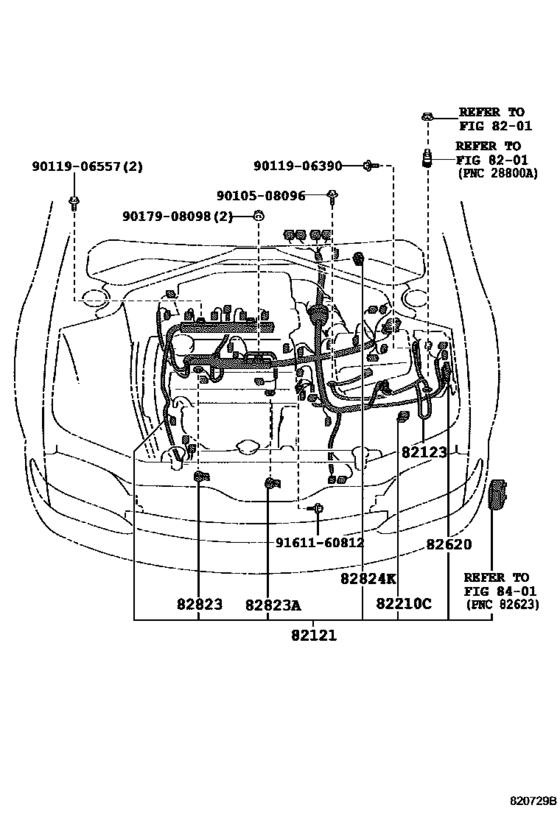

Wiring & Clamp ([04.1997 - ] ｴﾝｼﾞﾝ (9704- )AE111) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-1N760
Wire, Engine
[04.1997 - 04.1998] AE111..6F |
82121-1N760 |
— | ||
|
82121
|
82121
82121-1N761
Wire, Engine
[04.1998 - 08.2000] AE111..6F |
82121-1N761 |
— | ||
|
82123
|
82123
82123-12290
Wire, Engine, No.3
[04.1997 - 08.2000] AE11#,EE111..4F,4FC,5F,6F |
82123-12290 |
— | ||
|
82210C
|
82210C
90982-08228 Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 ５０Ａ，オス端子 |
90982-08228 |
US $9.28 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 １００Ａ，オス端子 |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 ４０Ａ，オス端子 |
90982-08257 |
US $11.20 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 ３０Ａ，メス端子 |
90982-08280 |
US $9.44 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 ５０Ａ，メス端子 |
90982-08282 |
from US $7.04 |
||
|
82620
|
82620
82620-12240 Block Assy, Fusible Link[04.1997 - 08.2000] AE11#,CE11#,EE111 |
82620-12240 |
US $11.36 |
||
|
82823
|
82823
82823-12090 Cap, Terminal, No.1[04.1997 - 08.2000] AE111,EE111 |
82823-12090 |
US $11.53 |
||
|
82823A
|
82823A
82823-22060 Cap, Terminal, No.1[04.1997 - 08.2000] AE111,CE11#,EE111 |
82823-22060 |
US $14.56 |
||
|
82824K
|
82824K
82824-12210 Block, Junction[04.1997 - 08.2000] AE11#,CE11#,EE111 |
82824-12210 |
US $35.64 |
||
|
82824K
|
82824K
82824-30130 Connector, Wiring Harness[04.1997 - 08.2000] AE11#,CE11#,EE111 |
82824-30130 |
US $3.52 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906557
|
9011906557
90119-06557 New Genuine Part |
90119-06557 |
US $0.87 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.44 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
