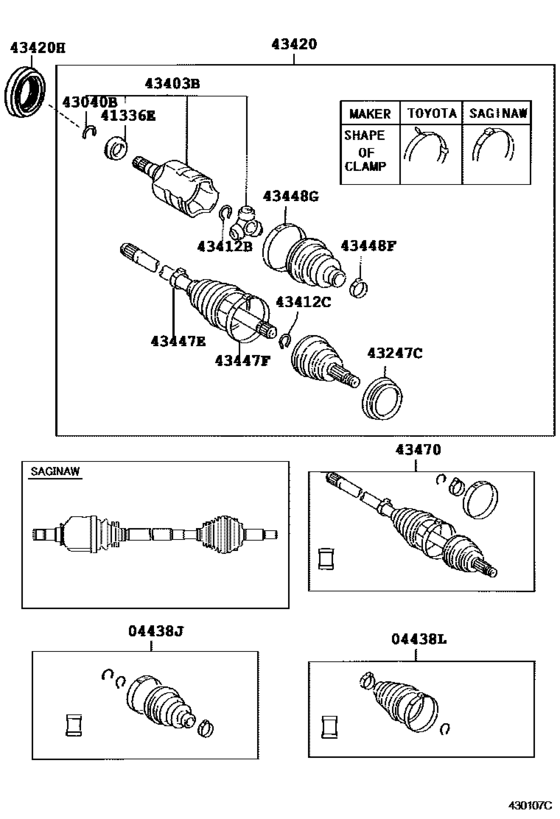

Front Drive Shaft ([05.1995 - ] SAGINAW,LH (9505- )AE110,111..DX,LX,SCRU,SESAL,XESAL) Diagram Toyota COROLLA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- AE111
- grade
- SCRU
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438J
|
04438J
04438-02050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.1995 - 04.1997] AE110,111 SAGINAW |
04438-02050 |
US $90.27 |
||
|
04438J
|
04438J
04438-12162
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[05.1995 - 11.1995] AE110,111 ＴＯＹＯＴＡ |
04438-12162 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[05.1995 - 11.1995] AE110,111 ＴＯＹＯＴＡ |
04438-32290 |
US $87.36 |
||
|
04438J
|
04438J
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint[11.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ |
04438-12410 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[11.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ |
04438-32290 |
US $87.36 |
||
|
04438L
|
04438L
04438-02071 Boot Kit, Front Drive Shaft Outboard Joint, Rh[05.1995 - 04.1997] AE110,111 |
04438-02071 |
US $81.84 |
||
|
41336E
|
41336E
41336-01010
Cover, Front Drive Shaft Dust, Rh
[05.1995 - 04.1997] AE110,111 SAGINAW |
41336-01010 |
— | ||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[05.1995 - 04.1997] EE111; AE110,111 ＴＯＹＯＴＡ |
41336-12010 |
US $2.08 |
||
|
43040B
|
43040B
90080-52015
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-52015 |
— | ||
|
43040B
|
43040B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[05.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ; AE114,CE114,EE111 |
90521-26004 |
US $1.60 |
||
|
43247C
|
43247C
43247-02020
Deflector, Front Wheel Bearing Dust, Rh No.2
[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
43247-02020 |
— | ||
|
43247C
|
43247C
43247-02030
Deflector, Front Wheel Bearing Dust, Rh No.2
[05.1995 - 05.1996] AE110,111 SAGINAW |
43247-02030 |
— | ||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43247-12010 |
from US $10.37 |
||
|
43247C
|
43247C
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ; AE114,CE11#,EE111 |
43247-33010 |
US $36.48 |
||
|
43403B
|
43403B
43047-02030 Joint Set, Front Axle Inboard, Rh[05.1995 - 04.1997] AE110,111 SAGINAW |
43047-02030 |
US $454.27 |
||
|
43403B
|
43403B
43403-12040 Joint Assy, Front Drive Inboard[05.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ |
43403-12040 |
from US $257.86 |
||
|
43412B
|
43412B
90080-52008 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-52008 |
US $2.18 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ; AE114,CE11# |
90520-22005 |
from US $1.24 |
||
|
43412C
|
43412C
90080-52004 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.1995 - 04.1997] AE110,111 |
90080-52004 |
US $2.33 |
||
|
43420
|
43420
43420-02070 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 SAGINAW |
43420-02070 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-02071 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 SAGINAW |
43420-02071 |
US $962.42 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 SAGINAW |
90178-22001 |
from US $2.15 |
||
|
43420
|
43420
43420-02080 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
43420-02080 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-02081 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
43420-02081 |
US $962.42 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
90178-22001 |
from US $2.15 |
||
|
43420
|
43420
43420-20111 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
43420-20111 |
US $933.30 |
||
| replacements | |||||
|
43420
|
43420
43420-20113 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
43420-20113 |
US $934.75 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.15 |
||
|
43420
|
43420
43420-20281 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43420-20281 |
US $963.87 |
||
| replacements | |||||
|
43420
|
43420
43420-20283 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43420-20283 |
US $934.75 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
90178-22001 |
from US $2.15 |
||
|
43420H
|
43420H
90311-34017
Seal, Oil(For Transmission Case)
[05.1995 - 04.1997] AE110,111,EE111..MTM |
90311-34017 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[05.1995 - 04.1997] AE110,111,EE111..MTM |
90311-34042 |
from US $7.52 |
||
|
43447E
|
43447E
90080-46147 Clamp (For Front Axle Outboard Joint Boot Rh)[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-46147 |
US $3.20 |
||
|
43447E
|
43447E
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1995 - 04.1997] AE110,111 内径＝３２．７,ＴＯＹＯＴＡ |
90949-01078 |
US $0.61 |
||
|
43447F
|
43447F
42345-16020 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1995 - 04.1997] EE111; AE110,111 ＴＯＹＯＴＡ |
42345-16020 |
US $3.79 |
||
|
43447F
|
43447F
90080-46149 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-46149 |
US $5.97 |
||
|
43448F
|
43448F
90080-46148 Clamp (For Front Axle Inboard Joint Boot Rh)[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-46148 |
US $3.20 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
42345-16040 |
— | ||
|
43448G
|
43448G
90080-46150 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[05.1995 - 04.1997] AE110,111 SAGINAW |
90080-46150 |
US $4.95 |
||
|
43470
|
43470
43470-09280 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 SAGINAW |
43470-09280 |
US $528.53 |
||
| replacements | |||||
|
43470
|
43470
43470-09281 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 SAGINAW |
43470-09281 |
US $527.07 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 SAGINAW |
90178-22001 |
from US $2.15 |
||
|
43470
|
43470
43470-09290 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
43470-09290 |
US $528.53 |
||
| replacements | |||||
|
43470
|
43470
43470-09291 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
43470-09291 |
US $528.53 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),SAGINAW |
90178-22001 |
from US $2.15 |
||
|
43470
|
43470
43470-29107 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
43470-29107 |
US $564.93 |
||
| replacements | |||||
|
43470
|
43470
43470-80304 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
43470-80304 |
US $564.93 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.15 |
||
|
43470
|
43470
43470-29237 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43470-29237 |
US $524.16 |
||
| replacements | |||||
|
43470
|
43470
43470-80305 Shaft Assy, Front Drive Outboard Joint, Lh[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
43470-80305 |
US $524.16 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] AE110,111 ｱﾘ(ABS),ＴＯＹＯＴＡ |
90178-22001 |
from US $2.15 |
||
