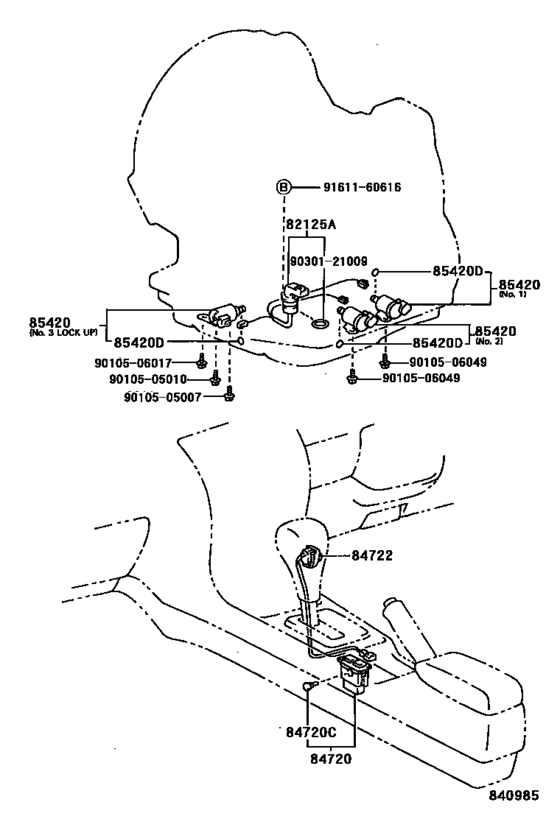

Overdrive & Electronic Controlled Transmission ([05.1995 - ] (9505- )AE111..4FC) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-12350
Wire, Transmission
[04.1997 - 08.2000] AE111..4FC |
82125-12350 |
— | ||
|
84720
|
84720
84720-12070 Switch Assy, Pattern Select[04.1997 - 08.2000] AE111..4FC |
84720-12070 |
US $80.08 |
||
|
84720C
|
84720C
84999-10420 Bulb, Satellite Switch[04.1997 - 08.2000] AE111..4FC |
84999-10420 |
from US $6.22 |
||
|
84722
|
84722
84722-12060-B0
Switch, Transmission Control
[04.1997 - 08.2000] AE111..4FC SHADOW GRAY,TRIM1# |
84722-12060-B0 |
— | ||
|
85420
|
85420
85420-12100
Solenoid Assy, Transmission
[04.1997 - 09.1998] AE111..4FC ＮＯ．１ |
85420-12100 |
— | ||
| replacement | |||||
|
85420
|
85420
85420-21010 Solenoid Assy, Transmission[04.1997 - 09.1998] AE111..4FC ＮＯ．１ |
85420-21010 |
US $160.74 |
||
|
85420
|
85420
85420-12120
Solenoid Assy, Transmission
[04.1997 - 09.1998] AE111..4FC ＮＯ．２ |
85420-12120 |
— | ||
| replacement | |||||
|
85420
|
85420
85420-21040
Solenoid Assy, Transmission
[04.1997 - 09.1998] AE111..4FC ＮＯ．２ |
85420-21040 |
— | ||
|
85420
|
85420
85420-12140 Solenoid Assy, Transmission[04.1997 - 09.1998] AE111..4FC ＮＯ．３（ＬＯＣＫ ＵＰ） |
85420-12140 |
US $218.40 |
||
| replacement | |||||
|
85420
|
85420
85420-21060
Solenoid Assy, Transmission
[04.1997 - 09.1998] AE111..4FC ＮＯ．３（ＬＯＣＫ ＵＰ） |
85420-21060 |
— | ||
|
85420
|
85420
85420-21010 Solenoid Assy, Transmission[09.1998 - 08.2000] AE111..4FC ＮＯ．１ |
85420-21010 |
US $160.74 |
||
|
85420
|
85420
85420-21040
Solenoid Assy, Transmission
[09.1998 - 08.2000] AE111..4FC ＮＯ．２ |
85420-21040 |
— | ||
|
85420
|
85420
85420-21060
Solenoid Assy, Transmission
[09.1998 - 08.2000] AE111..4FC ＮＯ．３（ＬＯＣＫ ＵＰ） |
85420-21060 |
— | ||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[04.1997 - 08.2000] AE111..4FC |
90301-06004 |
from US $1.92 |
||
|
9010505007
|
9010505007
90105-05007 New Genuine Part |
90105-05007 |
US $1.60 |
||
|
9010505010
|
9010505010
90105-05010 New Genuine Part |
90105-05010 |
US $1.75 |
||
|
9010506017
|
9010506017
90105-06017 Bolt(for Cylinder Head Cover) |
90105-06017 |
US $1.89 |
||
| replacement | |||||
|
9010506017
|
9010506017
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $0.96 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.12 |
||
|
9030121009
|
9030121009
90301-21009 Ring, O(For Transmission Wire) |
90301-21009 |
from US $2.72 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
