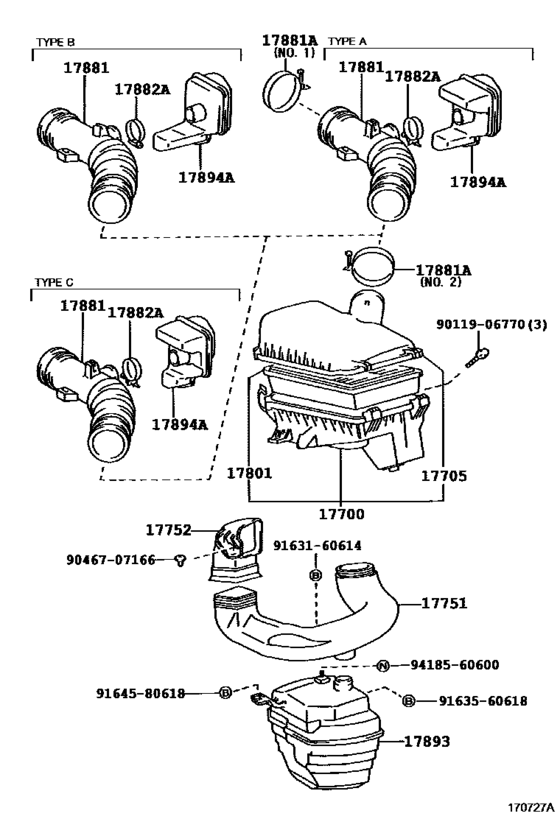

Air Cleaner ([05.1995 - ] (9505- )4AFE,5AFE,7AFE) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-15360 Cleaner Assy, Air[04.1997 - 11.1997] 5AFE..AE110..GLI;7AFE..AE112..GCC;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LH D..SED..(GCC,GEN) MARK 1536; 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..(GLI,XLI)..(GCC,GEN) MARK 1536 |
17700-15360 |
US $336.34 |
||
|
17705
|
17705
17705-15190
Cap Sub-Assy, Air Cleaner
[04.1997 - 11.1997] 5AFE..AE110..GLI;7AFE..AE112..GCC;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LH D..SED..(GCC,GEN) MARK 1536; 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..(GLI,XLI)..(GCC,GEN) MARK 1536 |
17705-15190 |
— | ||
|
17751
|
17751
17751-15070 Inlet, Air Cleaner, No.1[04.1997 - 11.1997] 5AFE..AE110..GLI;7AFE..AE112..GCC;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LH D..SED..(GCC,GEN); 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..GLI,XLI |
17751-15070 |
US $57.08 |
||
|
17752
|
17752
17752-15030
Inlet, Air Cleaner, No.2
[05.1995 -] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
17752-15030 |
— | ||
|
17801
|
17801
17801-02030
Element Sub-Assy, Air Cleaner Filter
[05.1995 - 07.1997] 4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (L) |
17801-02030 |
— | ||
|
17801
|
17801
17801-15070 Element Sub-Assy, Air Cleaner Filter[05.1995 - 07.1997] 4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (J) |
17801-15070 |
from US $41.26 |
||
|
17881
|
17881
17881-15200 Hose, Air Cleaner, No.1[04.1997 - 05.1997] 7AFE..AE112;5AFE..AE110..GLI;4AFE..AE111..LHD..SED;4AFE..AE111..RHD..(GLI,XLI) TYPE C:REFER TO ILLUSTRATION; 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..GLI,XLI TYPE C:REFER TO ILLUSTRATION |
17881-15200 |
from US $55.62 |
||
|
17881A
|
17881A
90460-73009 Clamp(For Air Cleaner Hose, No.1)NO.1) [04.1997 - 07.2002] 4AFE,7AFE..AE111,112..LHD NO.2 |
90460-73009 |
US $4.08 |
||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[04.1997 - 07.2002] 4AFE,7AFE..AE111,112..LHD NO.1 |
96111-10730 |
US $2.56 |
||
|
17882A
|
17882A
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[04.1997 - 05.1997] 7AFE..AE112;5AFE..AE110..GLI;4AFE..AE111..LHD..SED;4AFE..AE111..RHD..(GLI,XLI) TYPE C:REFER TO ILLUSTRATION; 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..GLI,XLI TYPE C:REFER TO ILLUSTRATION |
96111-10480 |
US $1.92 |
||
|
17893
|
17893
17893-15050 Resonator, Intake Air[05.1995 -] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
17893-15050 |
US $168.90 |
||
|
17894A
|
17894A
17894-15050 Resonator, Intake Air, No.2[04.1997 - 05.1997] 7AFE..AE112;5AFE..AE110..GLI;4AFE..AE111..LHD..SED;4AFE..AE111..RHD..(GLI,XLI) TYPE C:REFER TO ILLUSTRATION; 5AFE..AE110..GLI;4AFE,7AFE..AE111,112..GLI,XLI TYPE C:REFER TO ILLUSTRATION |
17894-15050 |
US $51.40 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.92 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
