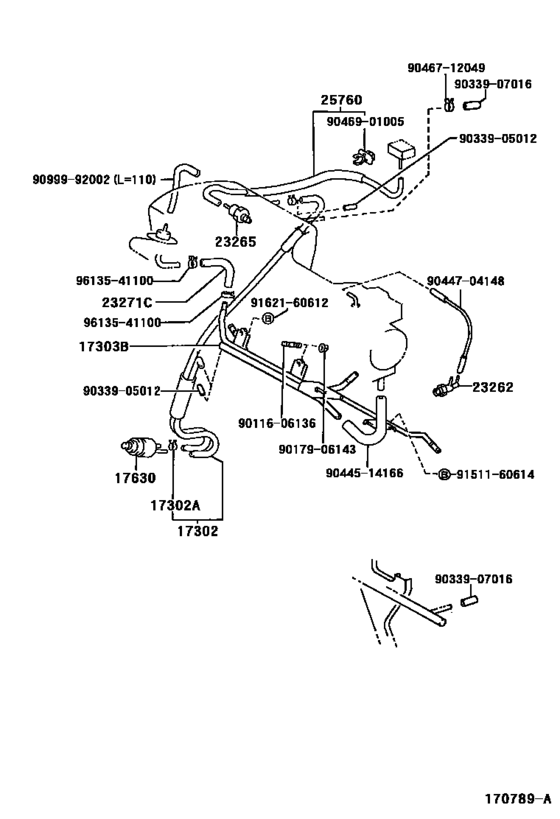

Vacuum Piping ([04.1997 - 12.1997] INDONESIA,THAILAND,MALAYSIA (9704-9712)4AFE) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-15010
Hose Sub-Assy, Air
[05.1995 - 08.1998] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GC C,GEN,TUR,VEN) |
17302-15010 |
— | ||
|
17302A
|
17302A
96132-51000 Clip Or Clamp(For Ventilation Hose)[04.1997 - 07.1998] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GE N) W(POWER STEERING); 4AFE..AE111..MA;5AFE..AE110..GLI;5AFE,7AFE..AE110,112..GCC,IDN,NZ,TH;4AFE..AE111.. (GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH) W(POWER ST |
96132-51000 |
from US $1.62 |
||
|
17303B
|
17303B
17303-15090 Pipe Sub-Assy, Air, No.1[04.1997 - 07.2002] 5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..WG..5F;4AFE..AE111.. LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI) |
17303-15090 |
US $91.73 |
||
|
17630
|
17630
17630-15080 Valve Assy, Air Control[05.1995 - 08.1998] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GC C,GEN,TUR,VEN) |
17630-15080 |
US $99.59 |
||
|
23262
|
23262
90925-05068 Valve, Bimetal Vacuum Switching, No.1BIMETAL VACUUM SWITCHING, NO.1 [04.1997 - 09.1999] 7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..WG;4AFE..AE111..LHD..GLI..(GEN,TUR);4AFE..A E111..SED..4FC..XLI..(GEN,TUR,VEN);4AFE..AE111..LHD..SED..5F..XLI..(GEN,TUR,VEN); 4AFE..AE111..MA,TH;4AFE..AE111..WG..5F;4AFE..AE111..LHD..GLI..GEN;4AFE |
90925-05068 |
from US $63.84 |
||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[04.1997 - 07.2002] 4EFE..EE111; 5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..WG..5F;4AFE..AE111.. LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI) |
90917-11030 |
from US $8.56 |
||
|
23271C
|
23271C
90910-05214 Hose, Fuel[05.1995 -] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
90910-05214 |
US $8.88 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9044514166
|
9044514166
90445-14166
HOSE
|
90445-14166 |
— | ||
|
9044704148
|
9044704148
90447-04148
Hose, Fuel, No.1(For Charcoal Canister)
|
90447-04148 |
— | ||
|
9046712049
|
9046712049
90467-12049 Clip(For Actuator Hose) |
90467-12049 |
US $2.62 |
||
| replacement | |||||
|
9046712049
|
9046712049
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $2.72 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
